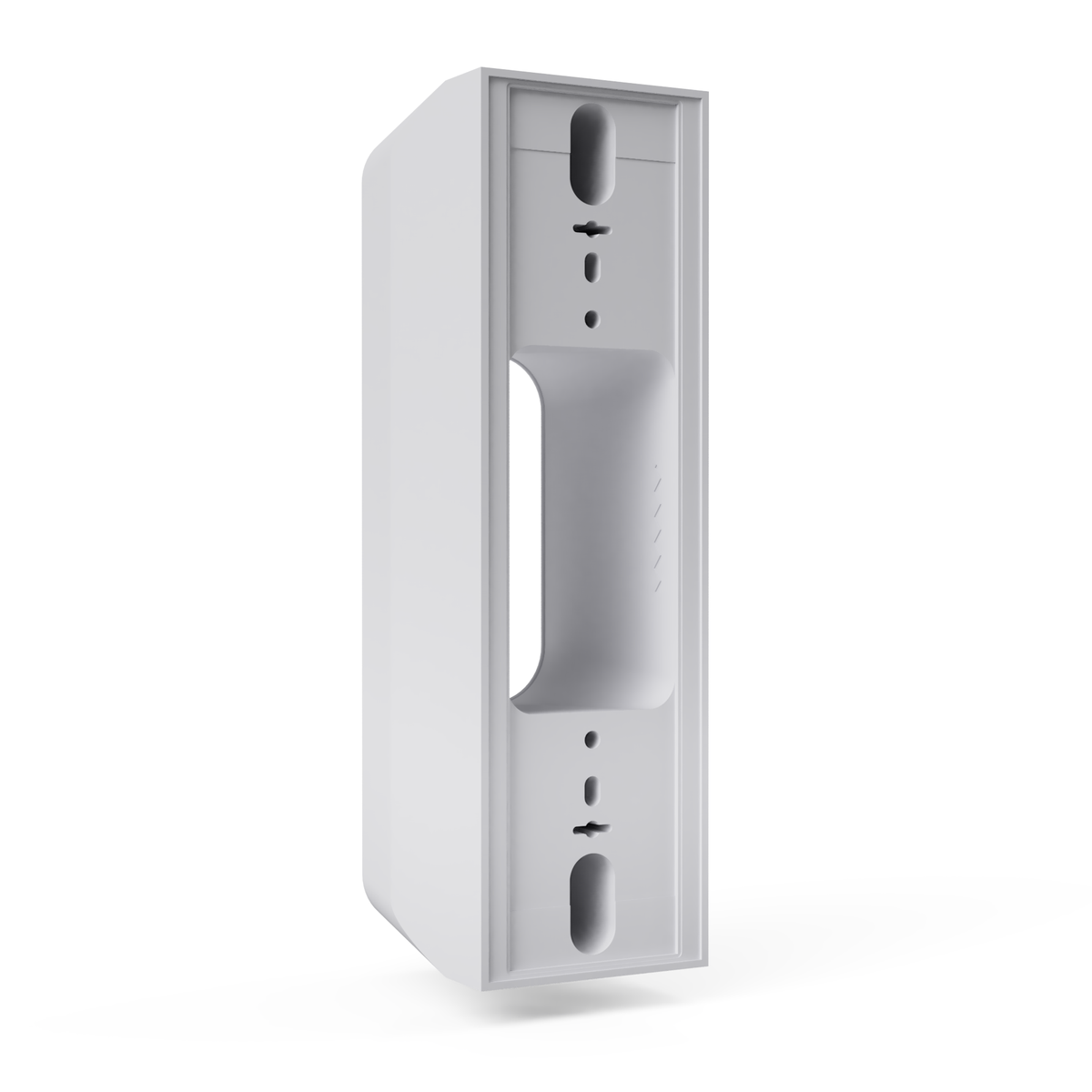

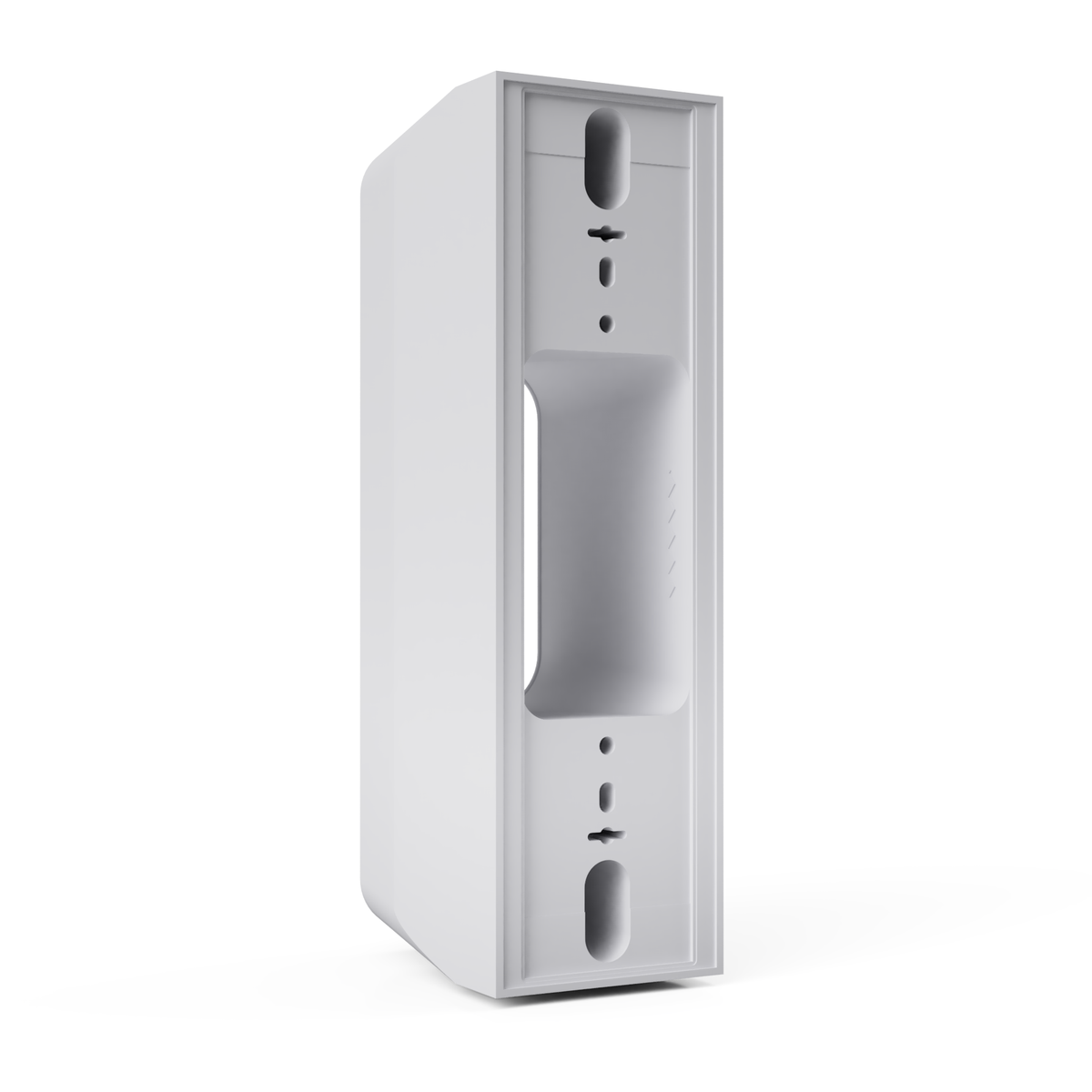

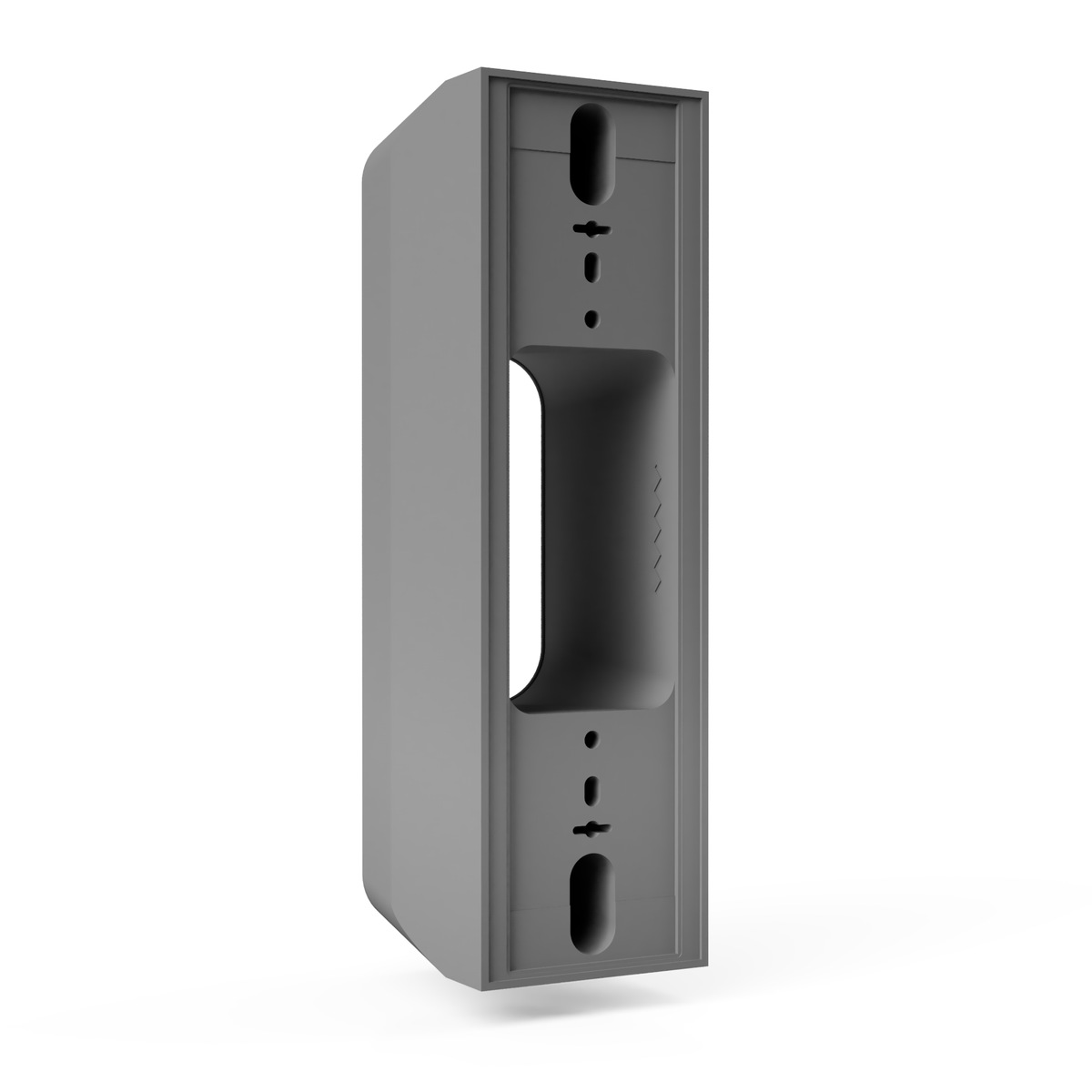

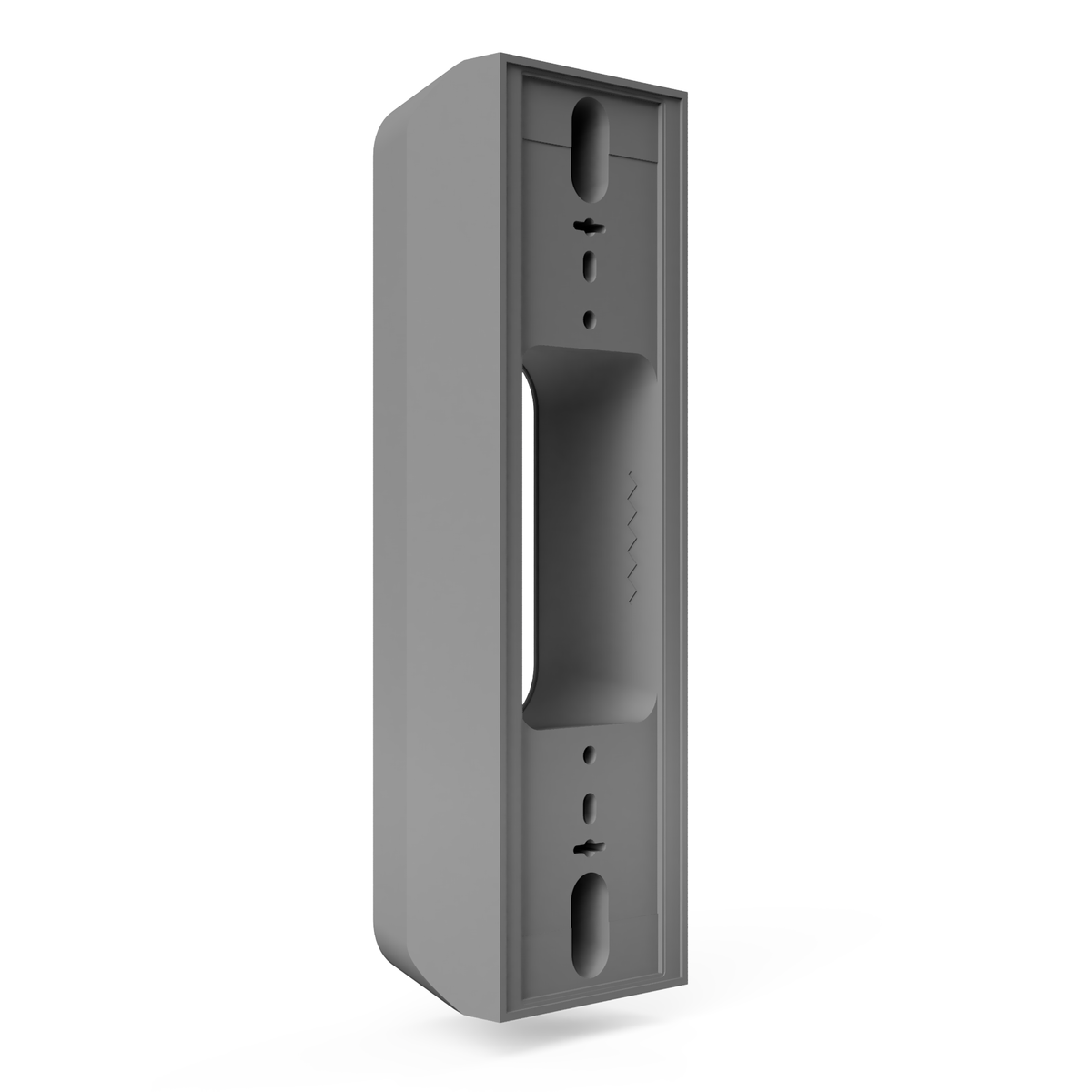

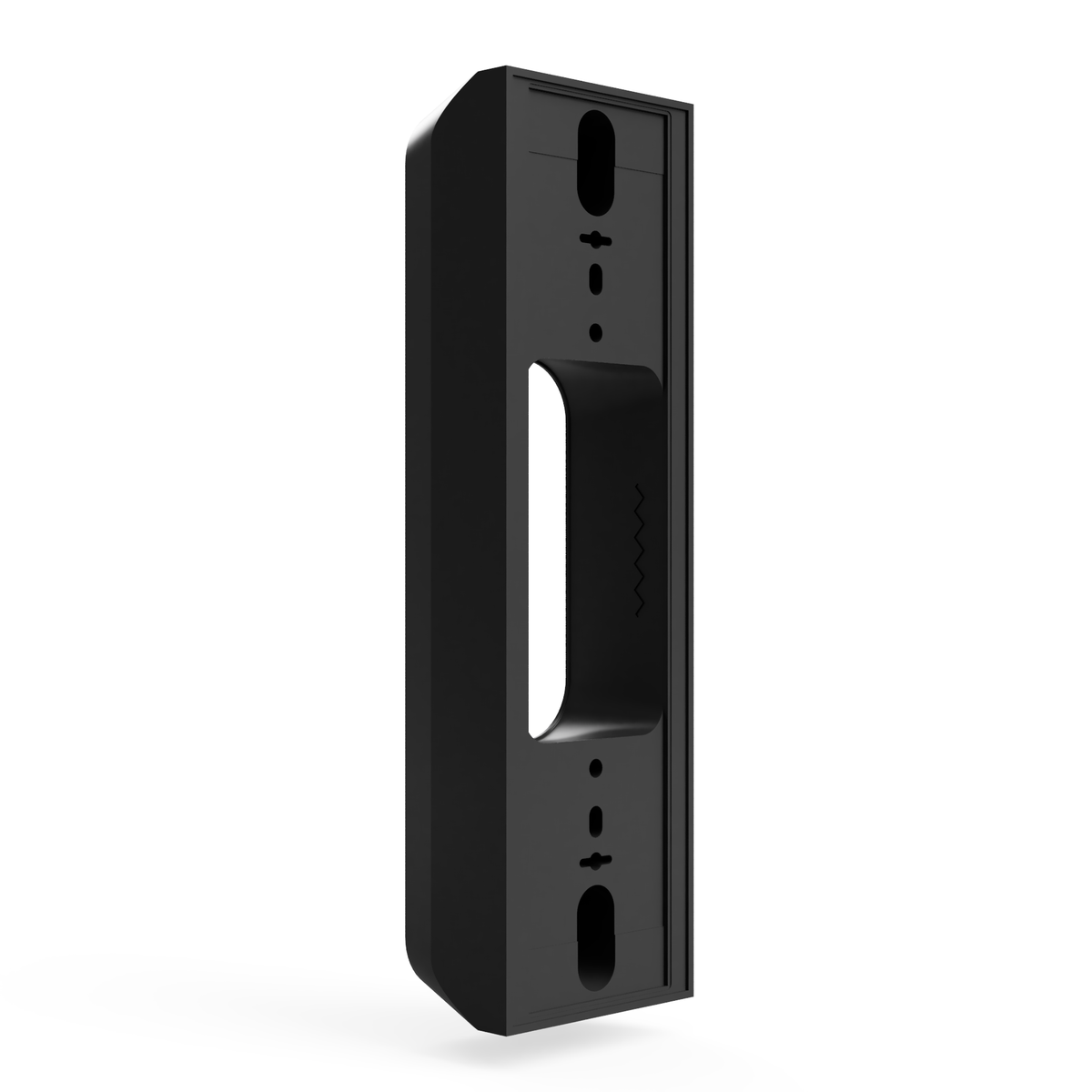

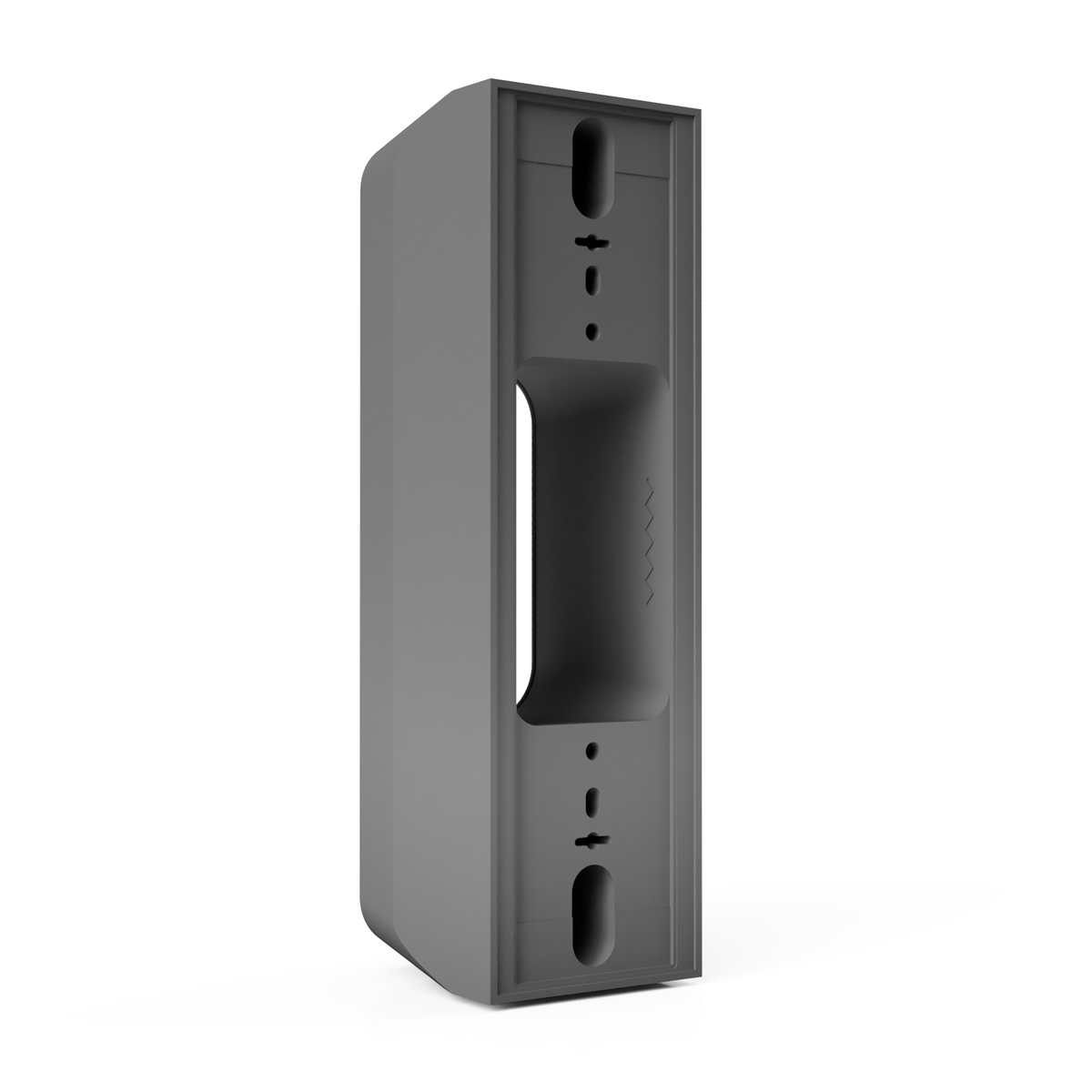

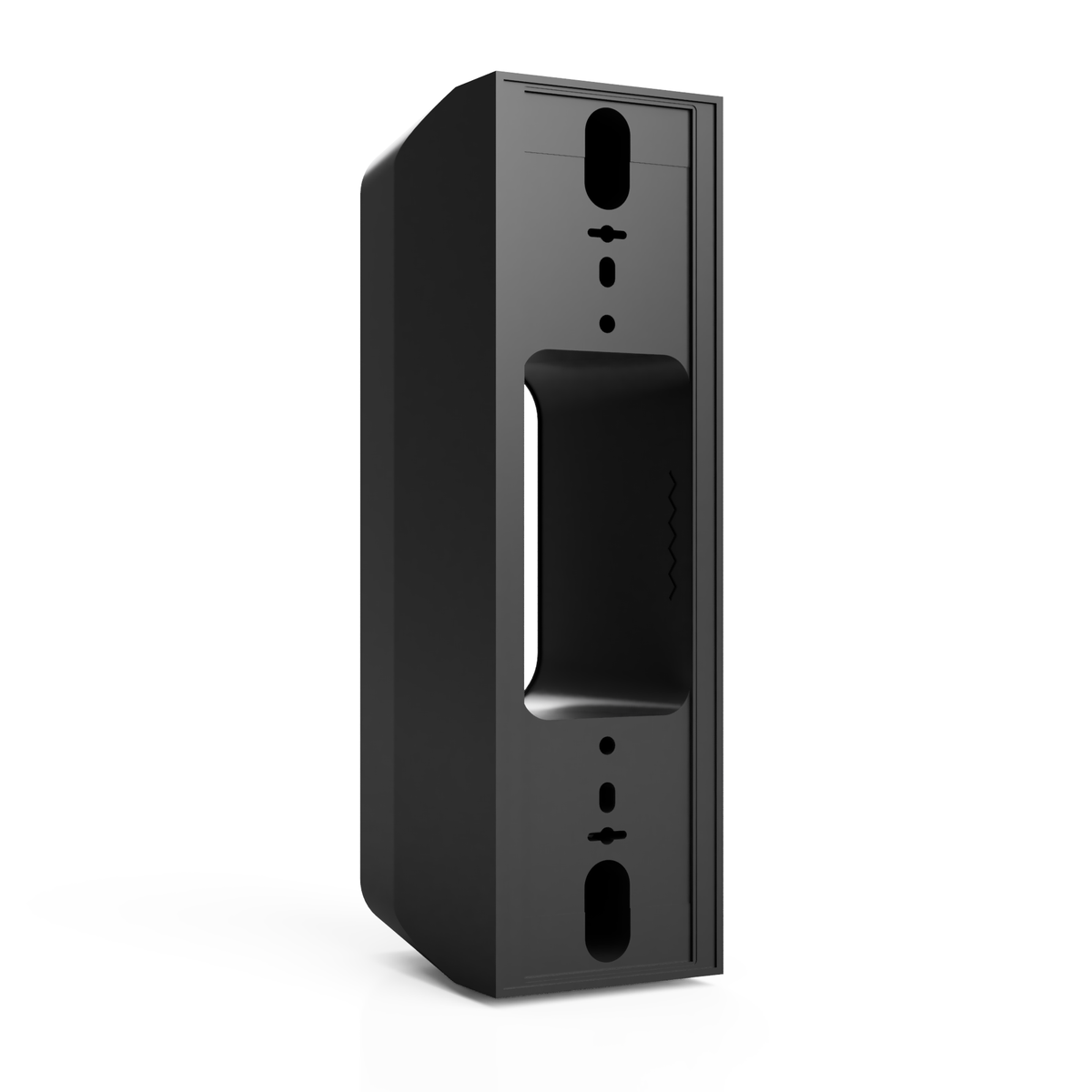

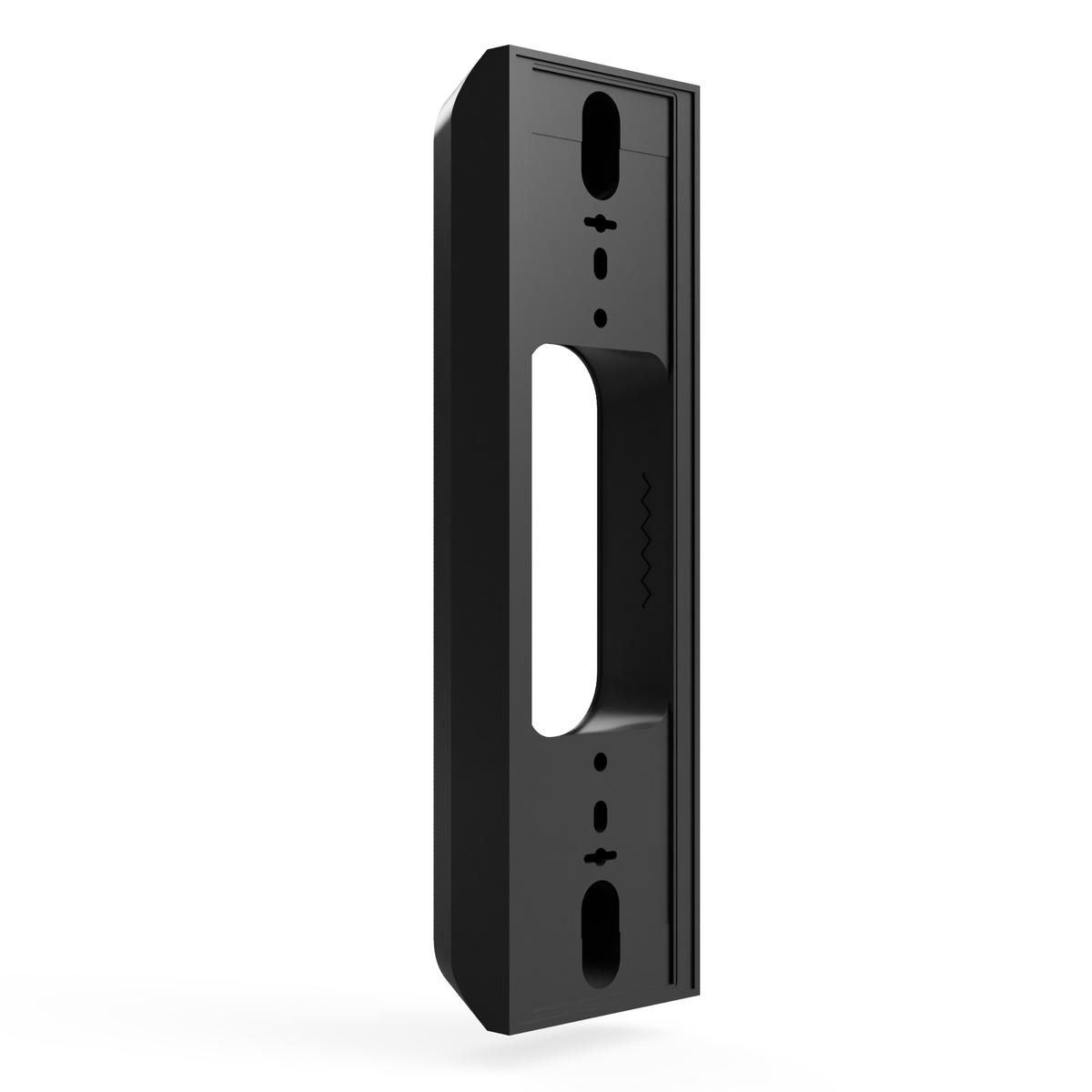

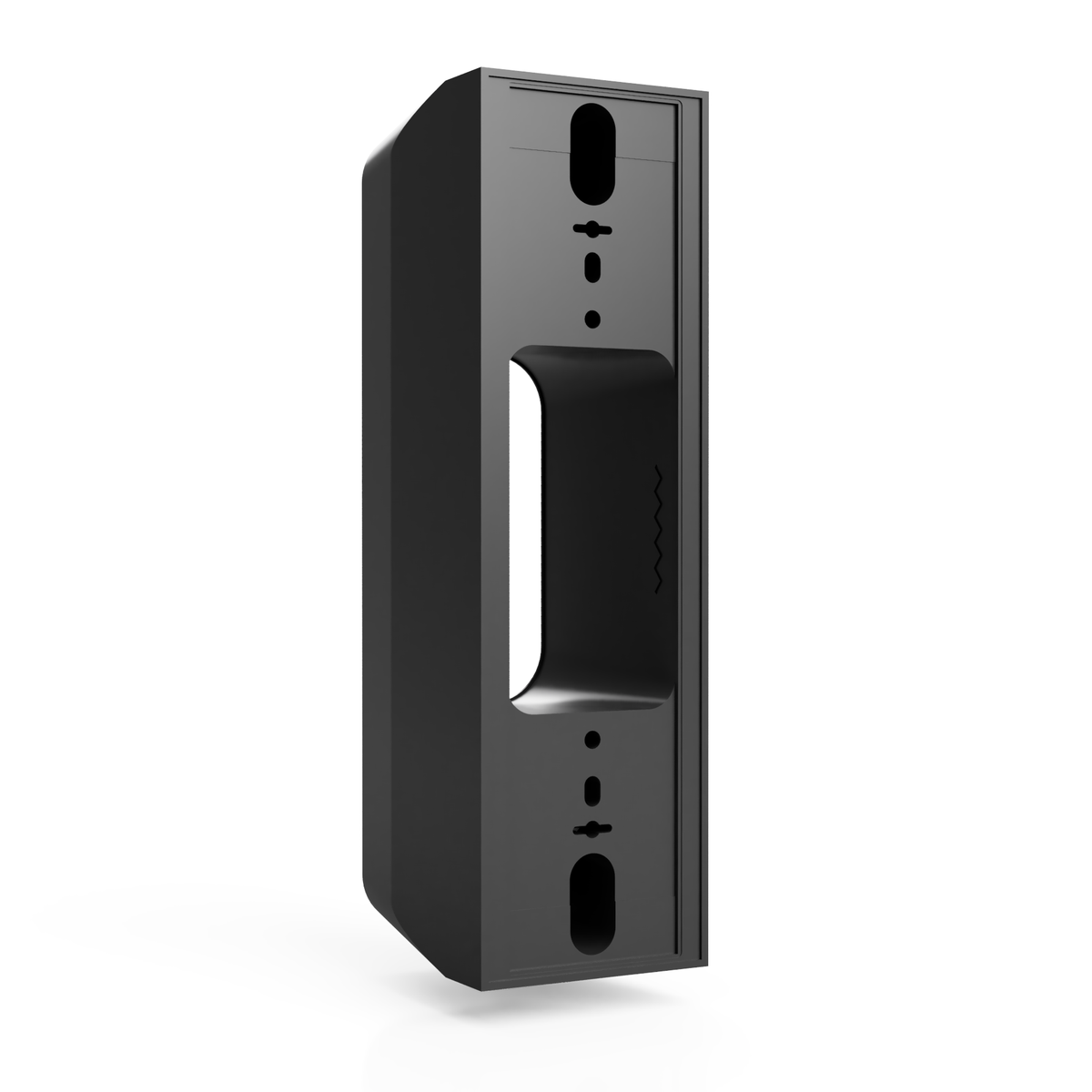

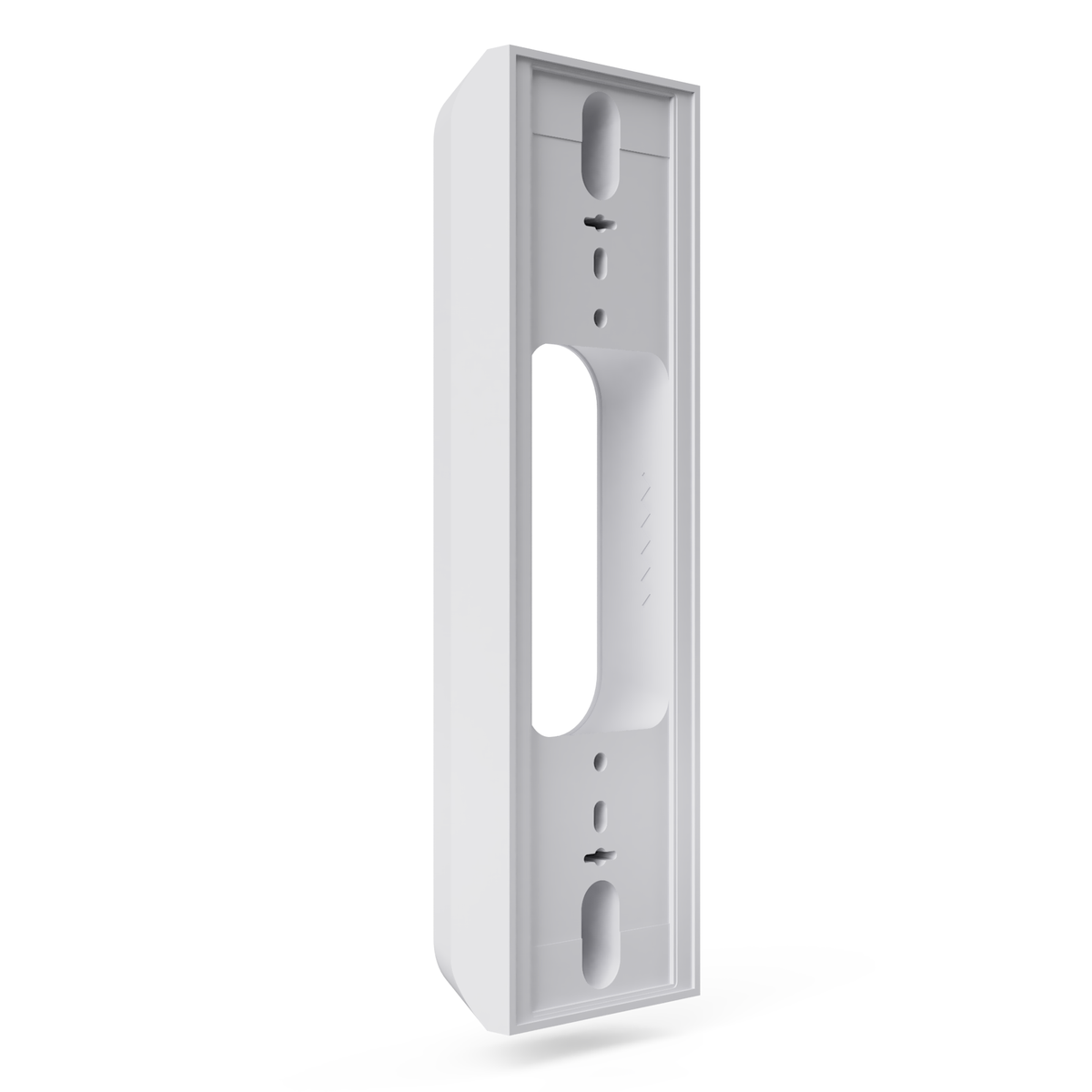

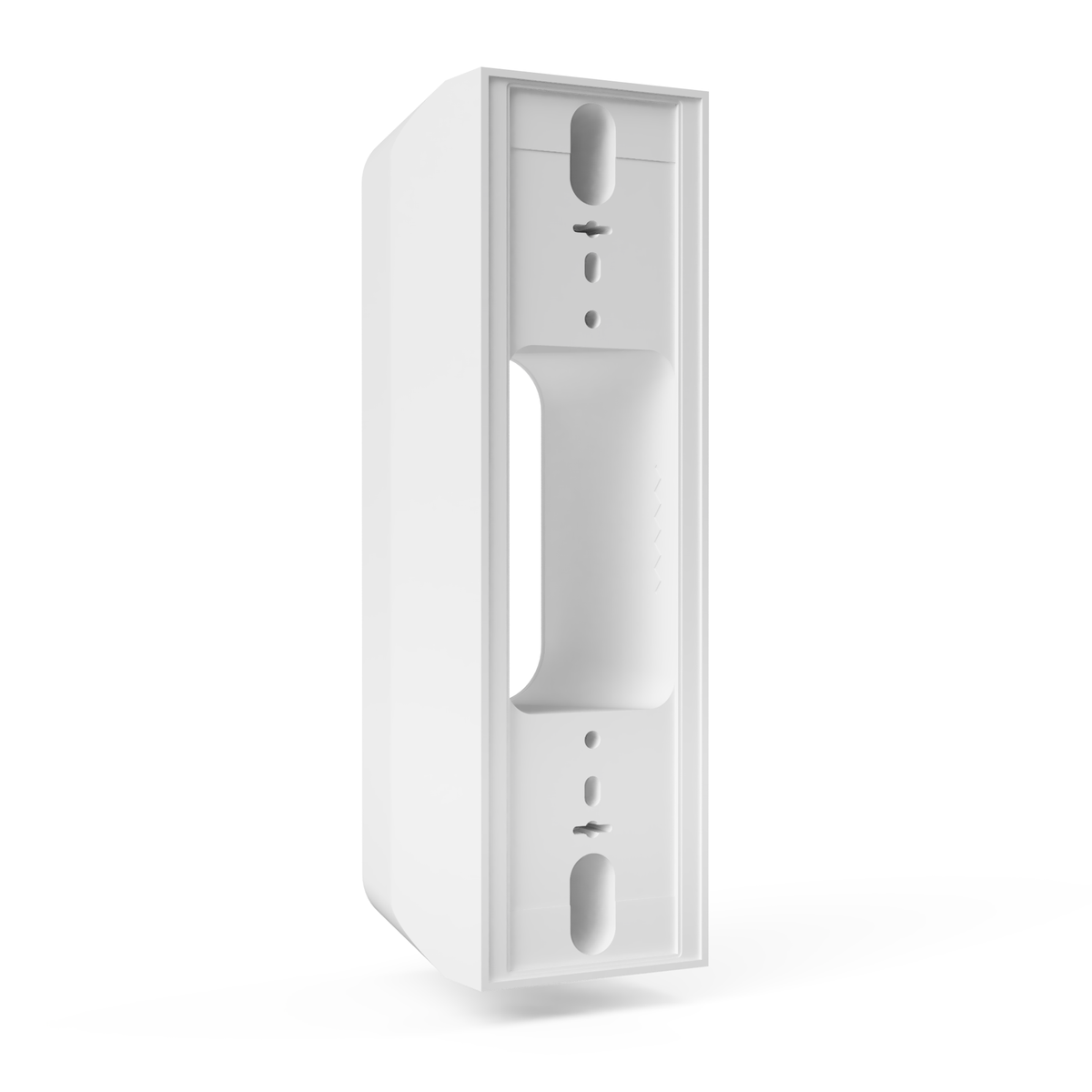

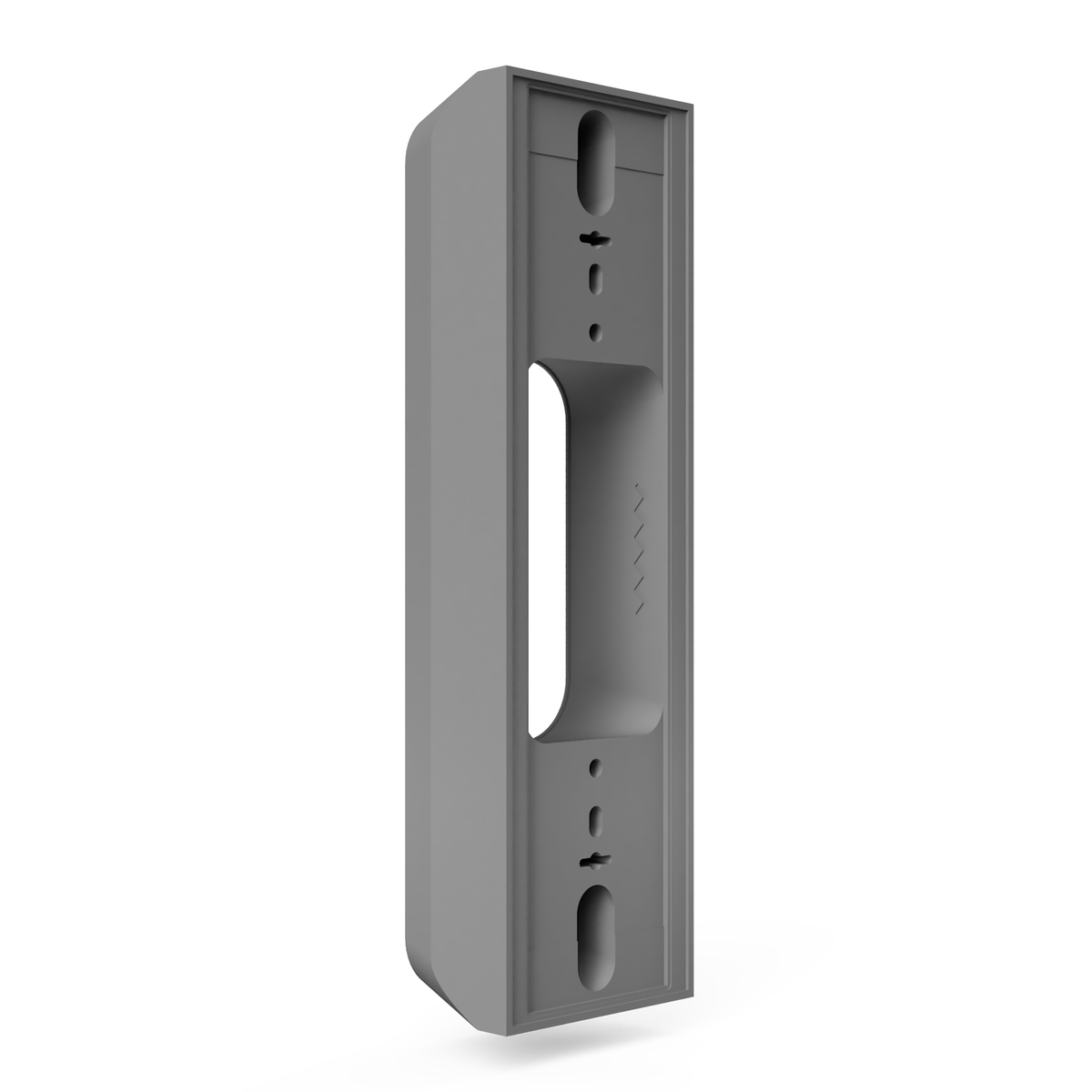

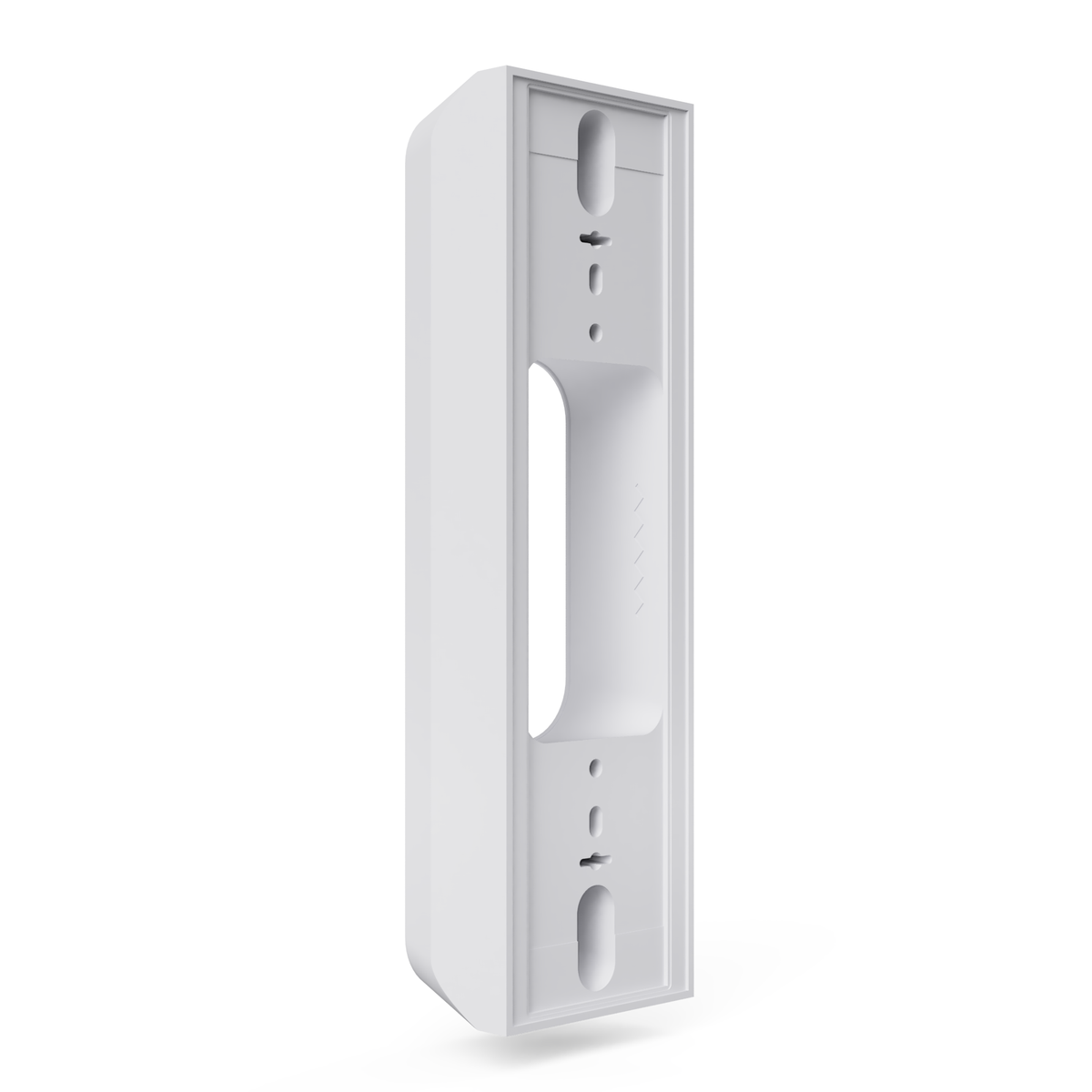

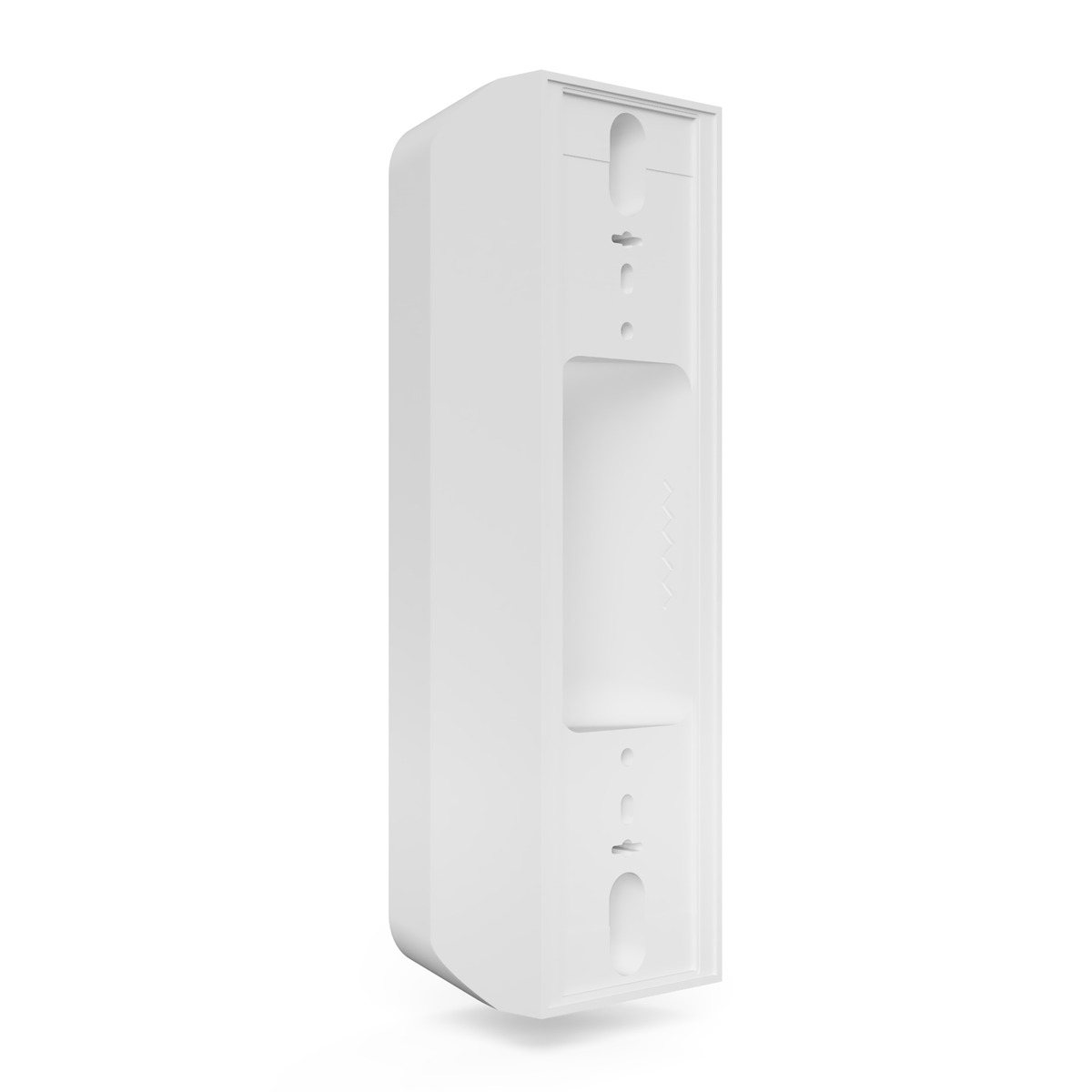

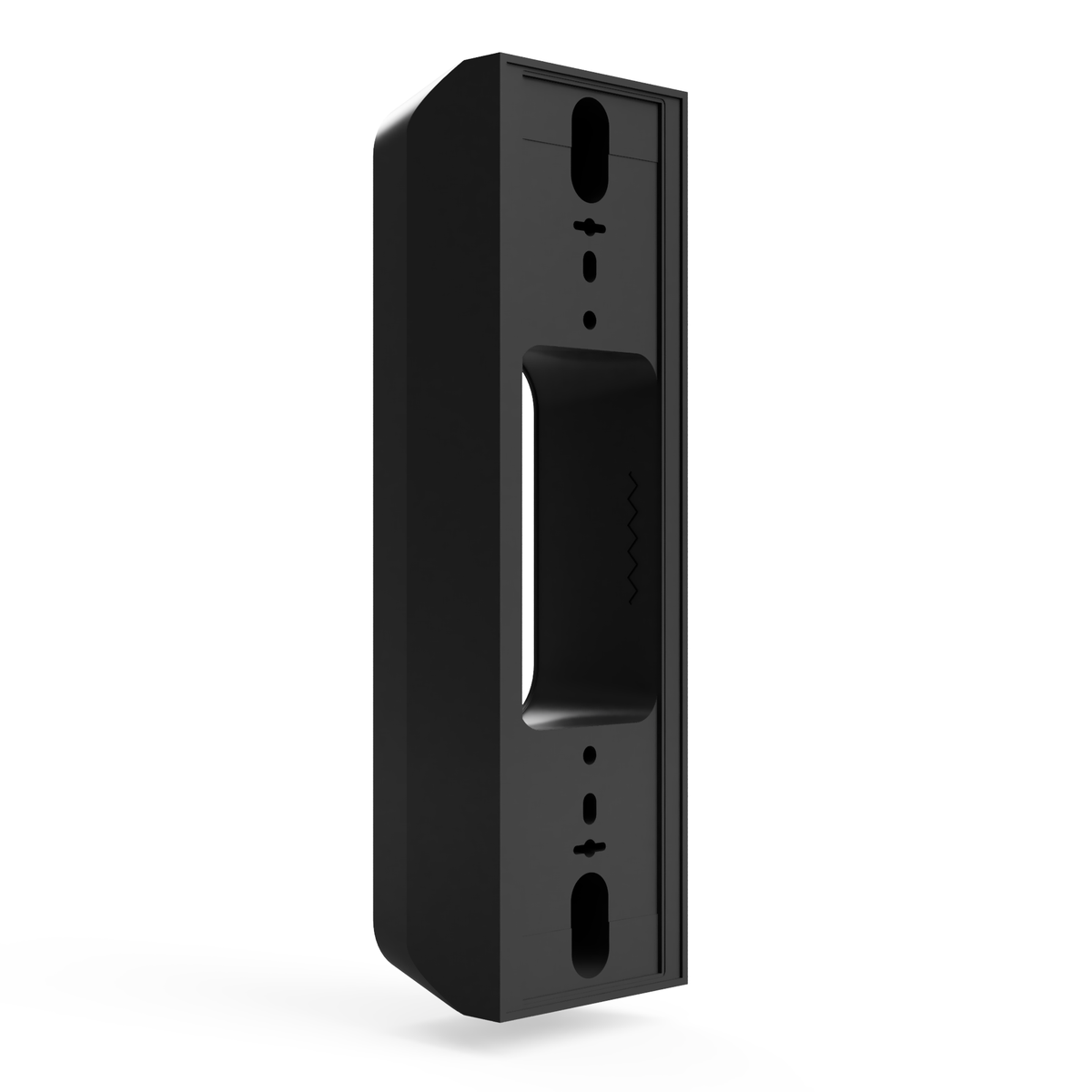

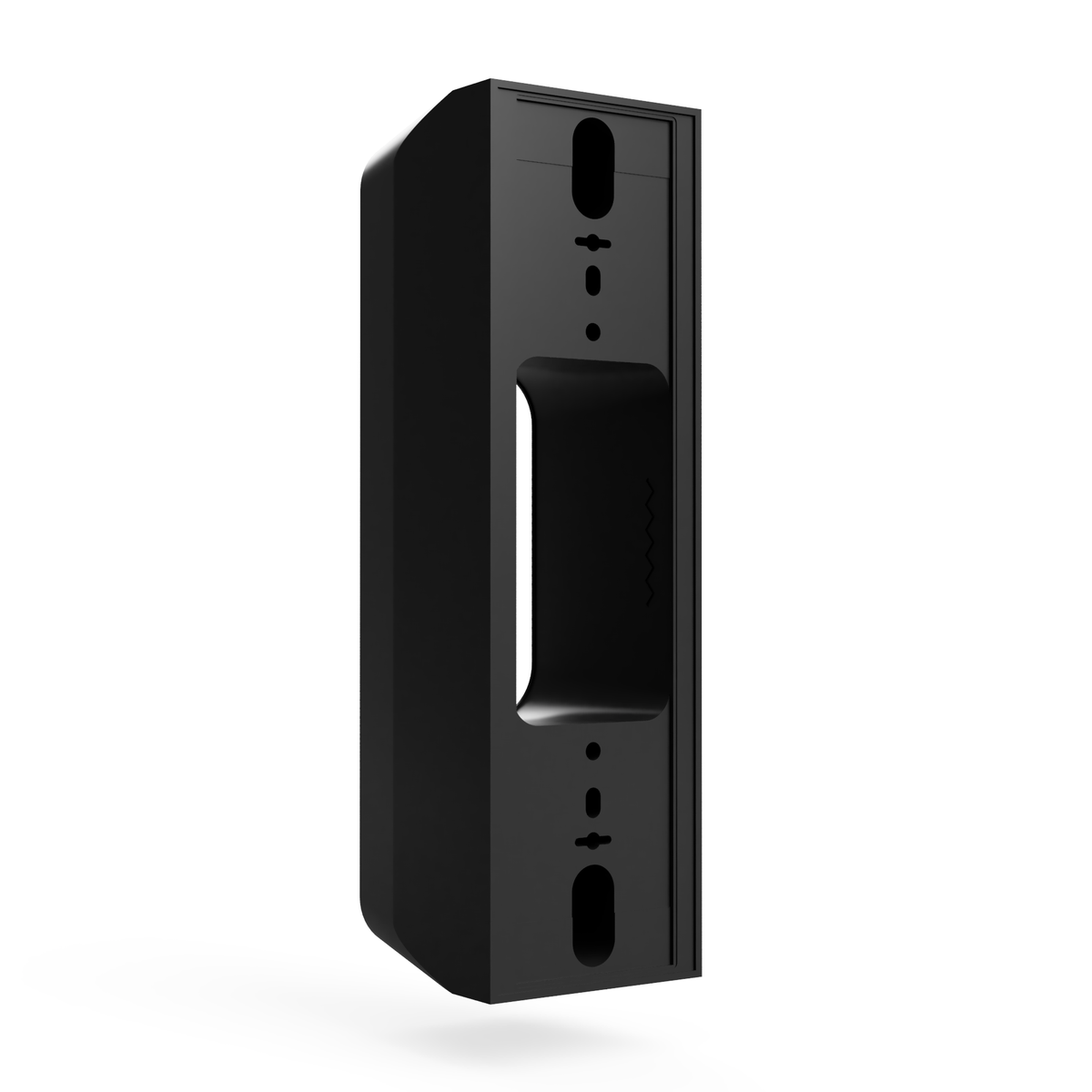

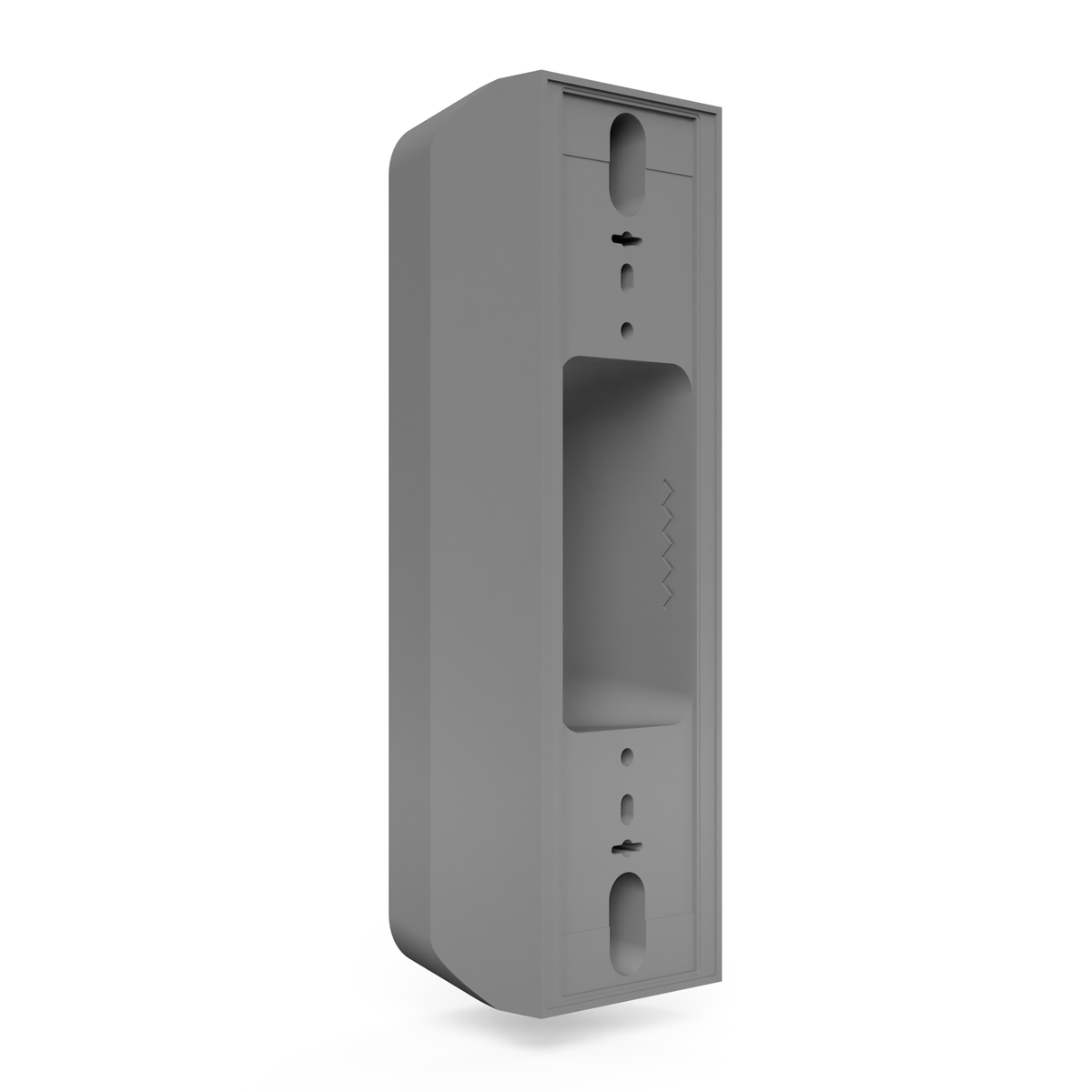

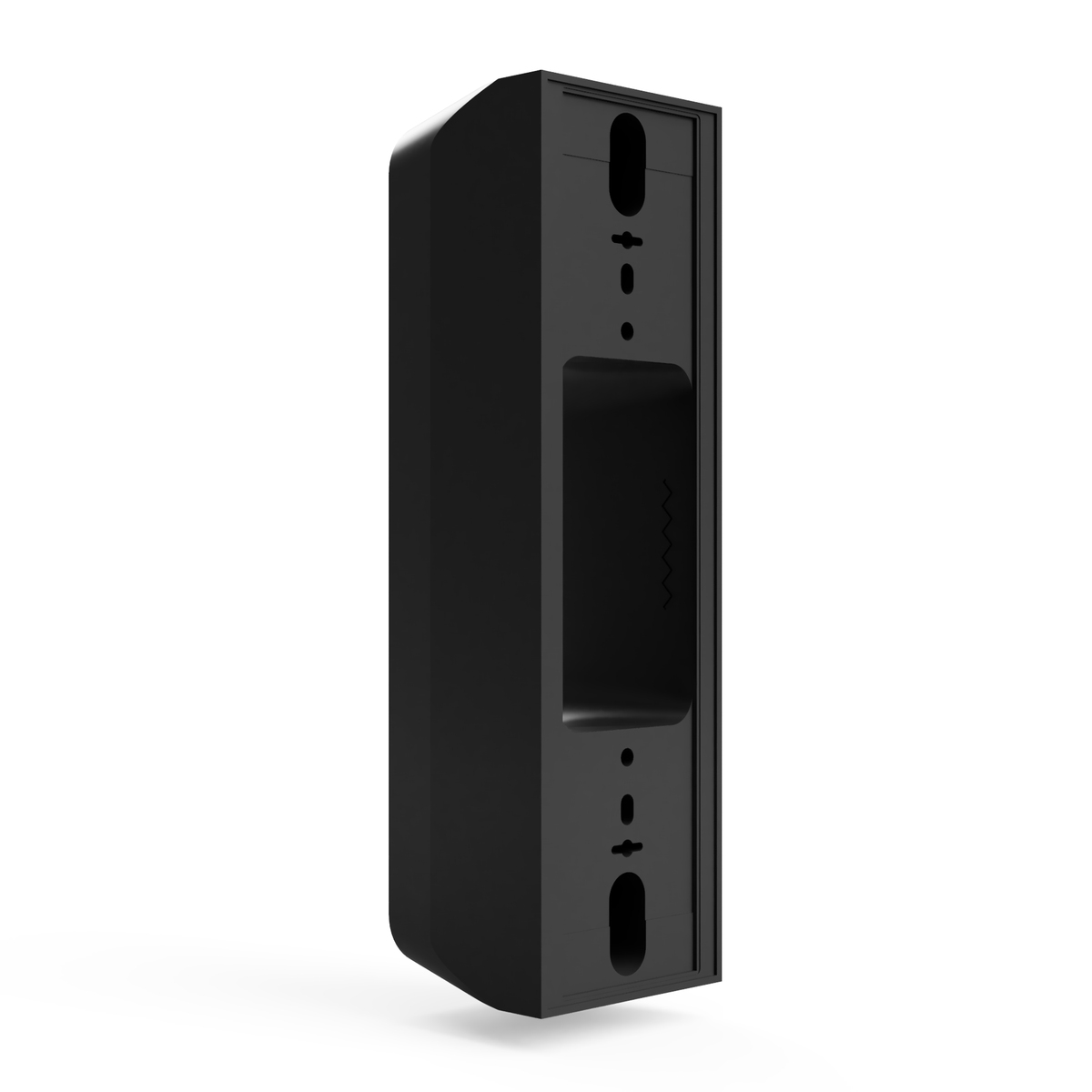

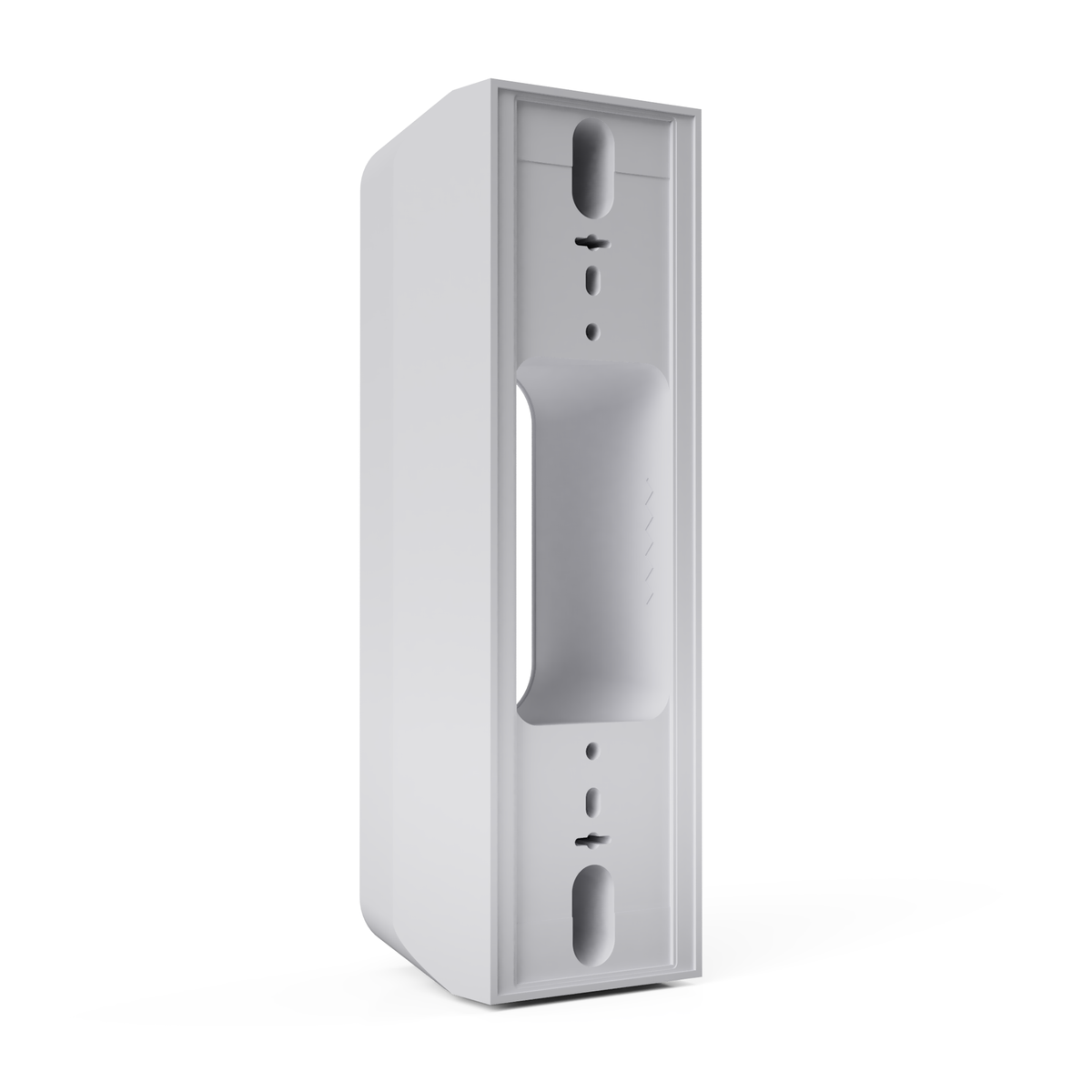

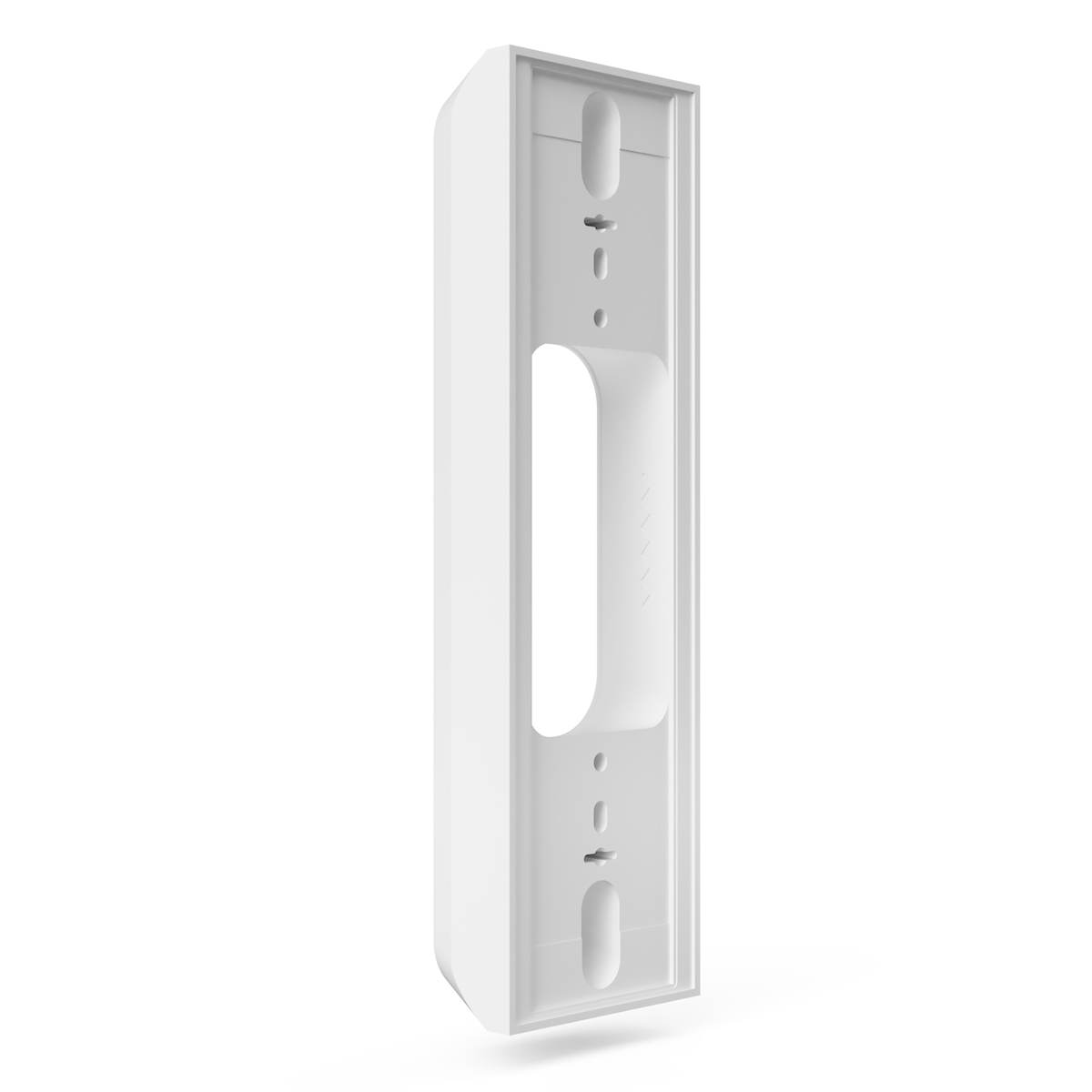

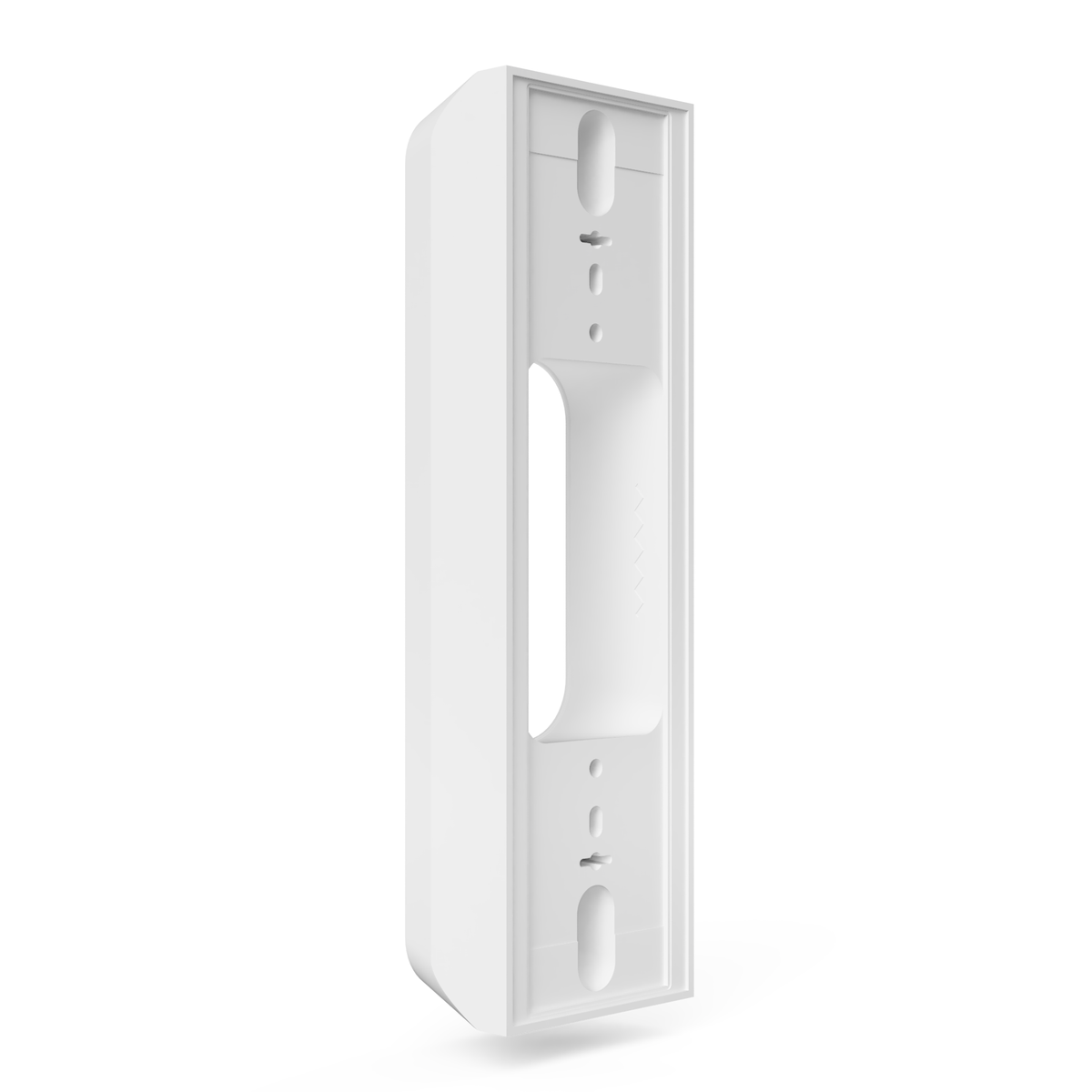

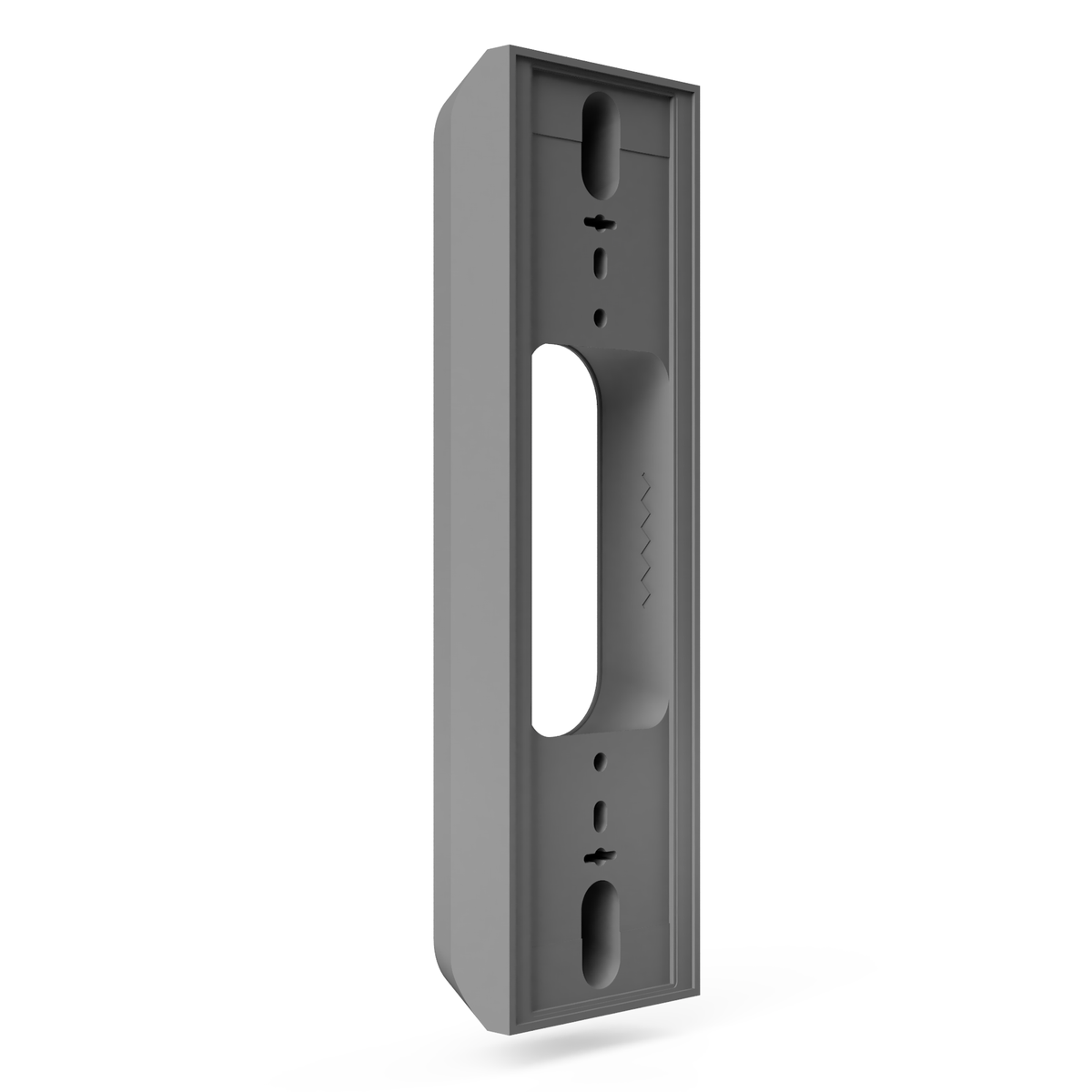

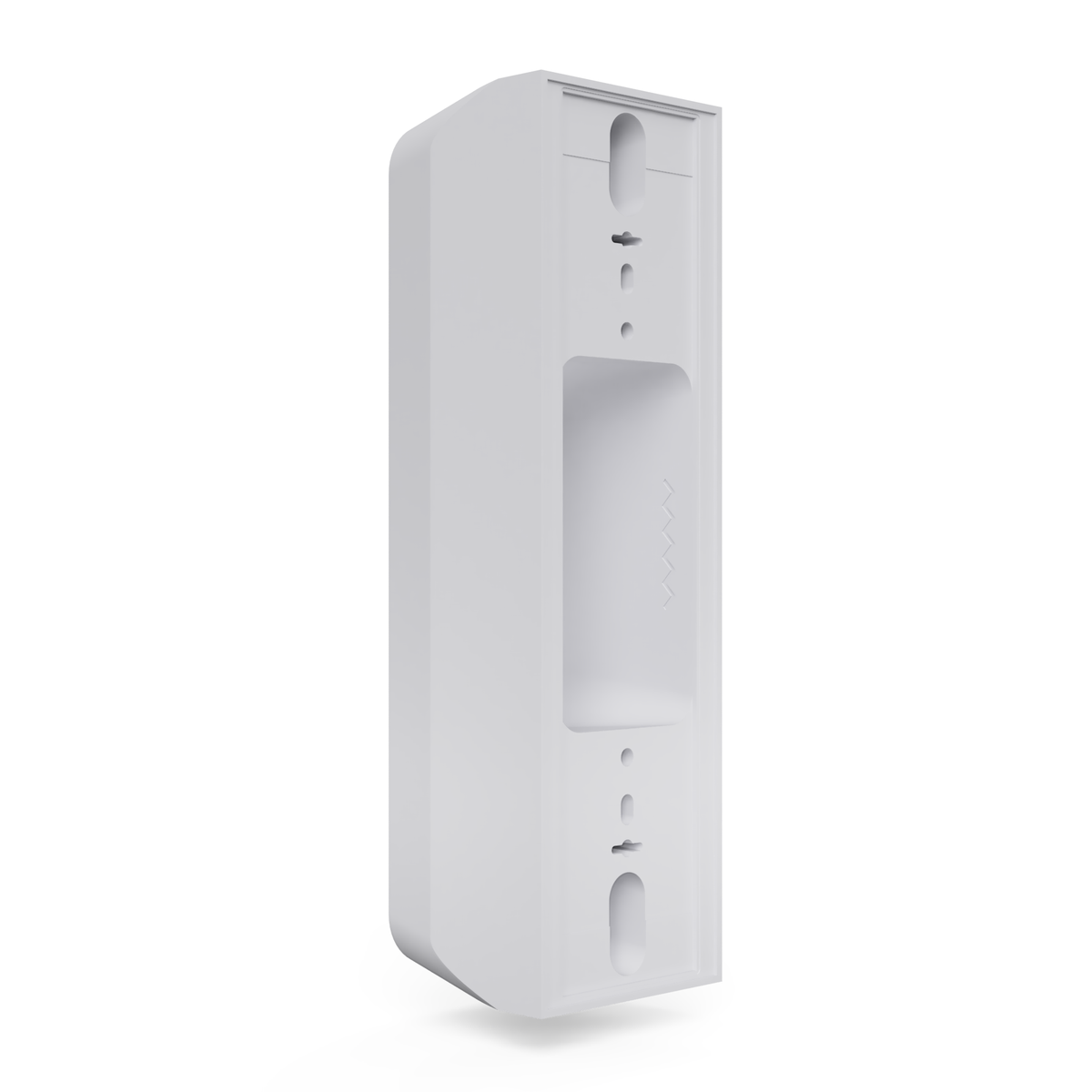

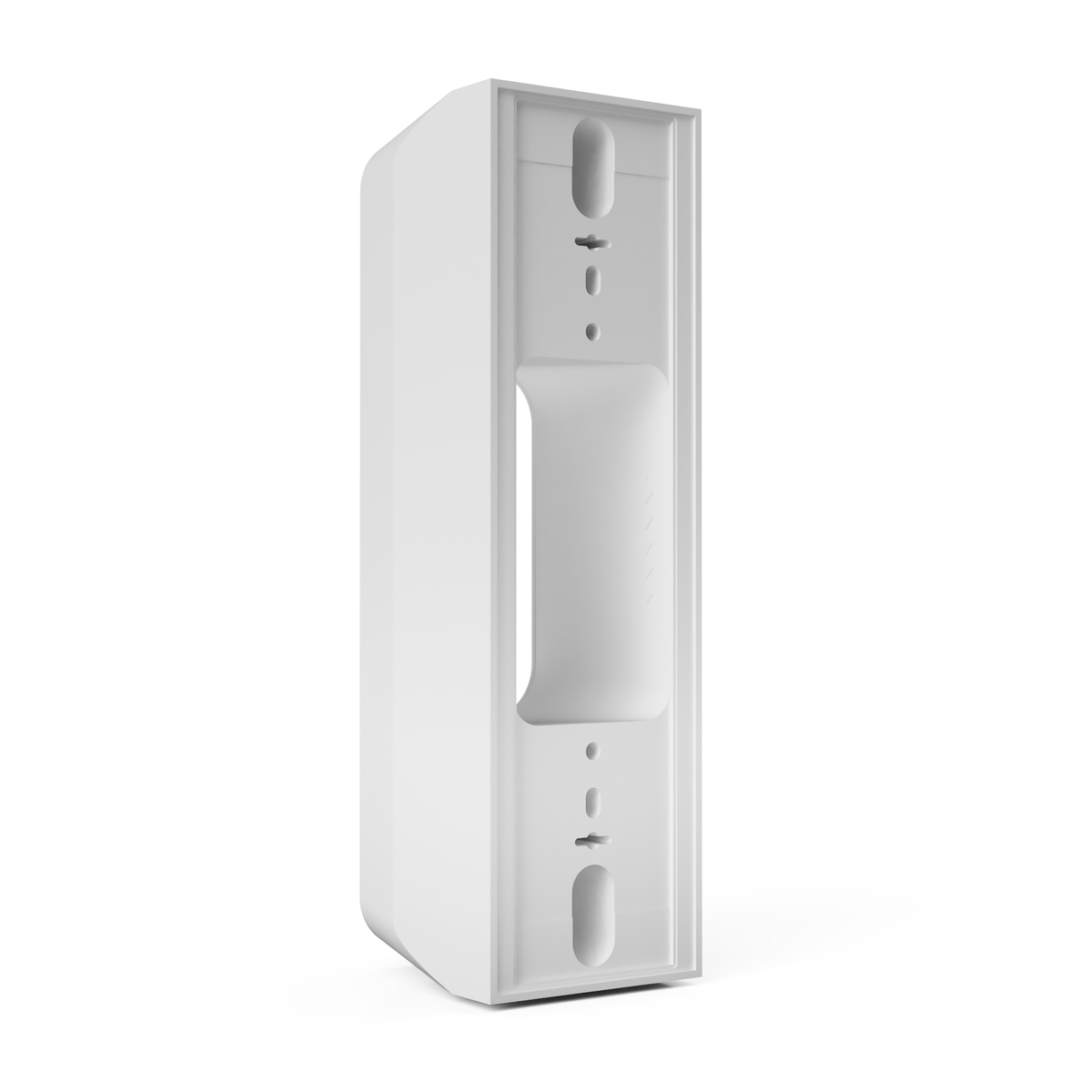

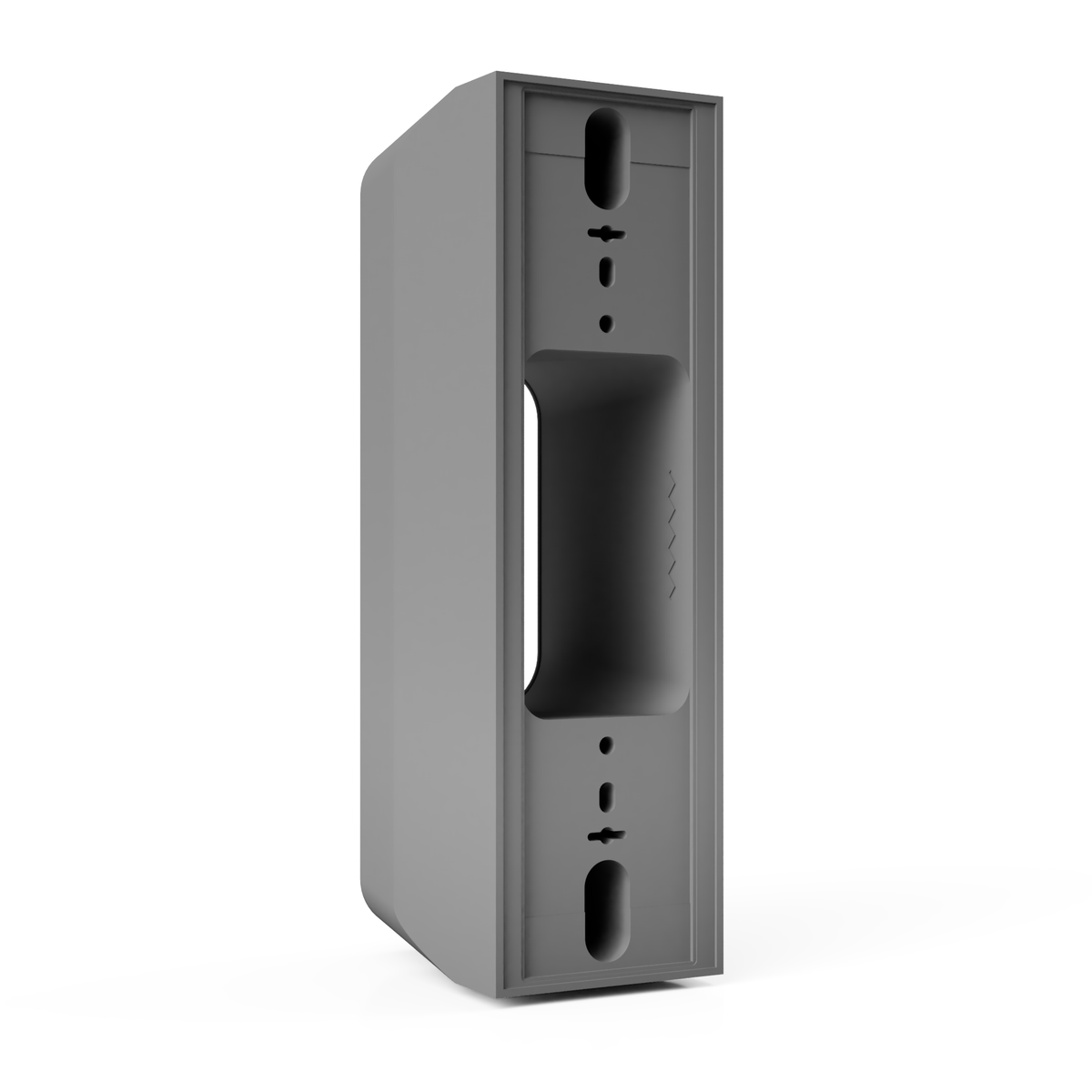

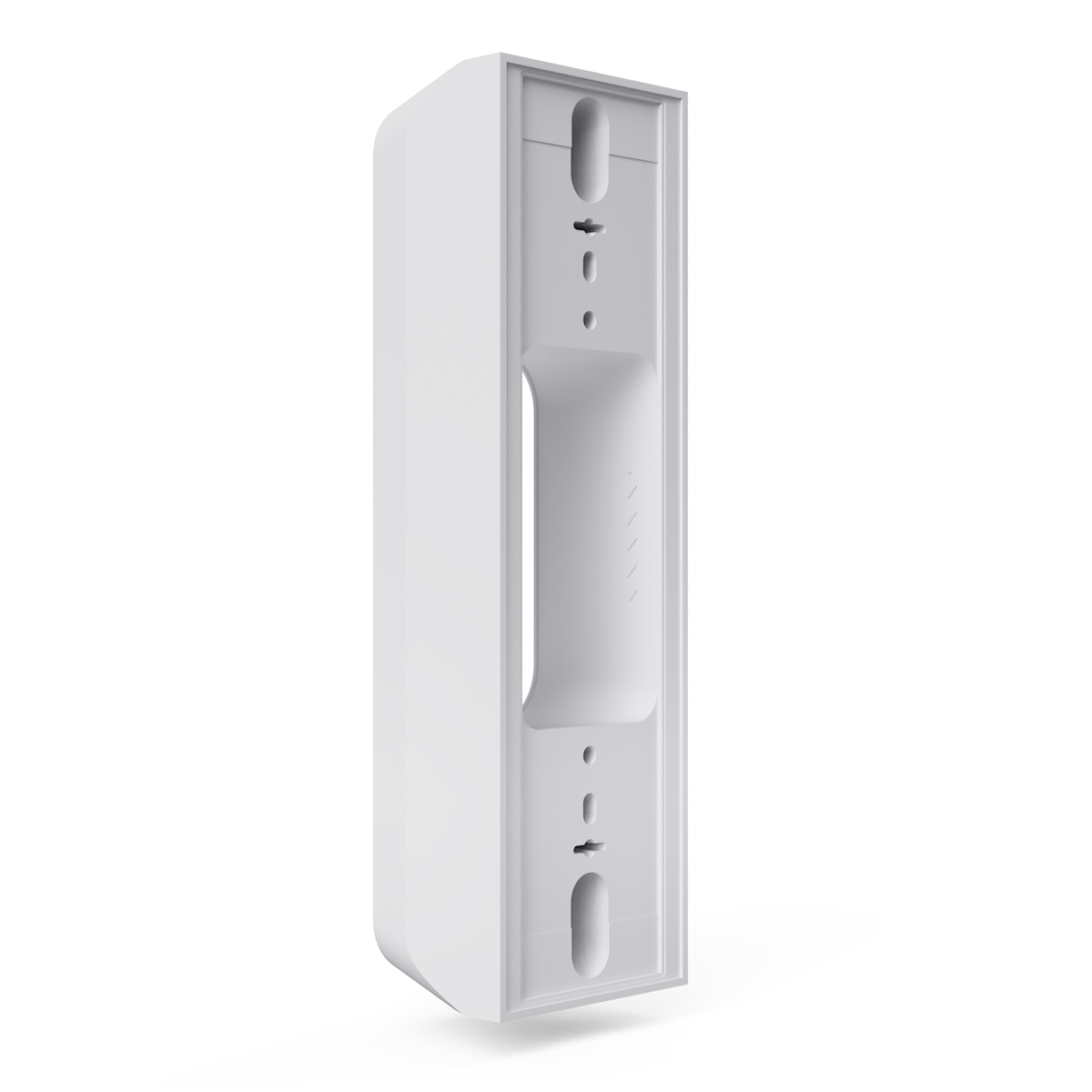

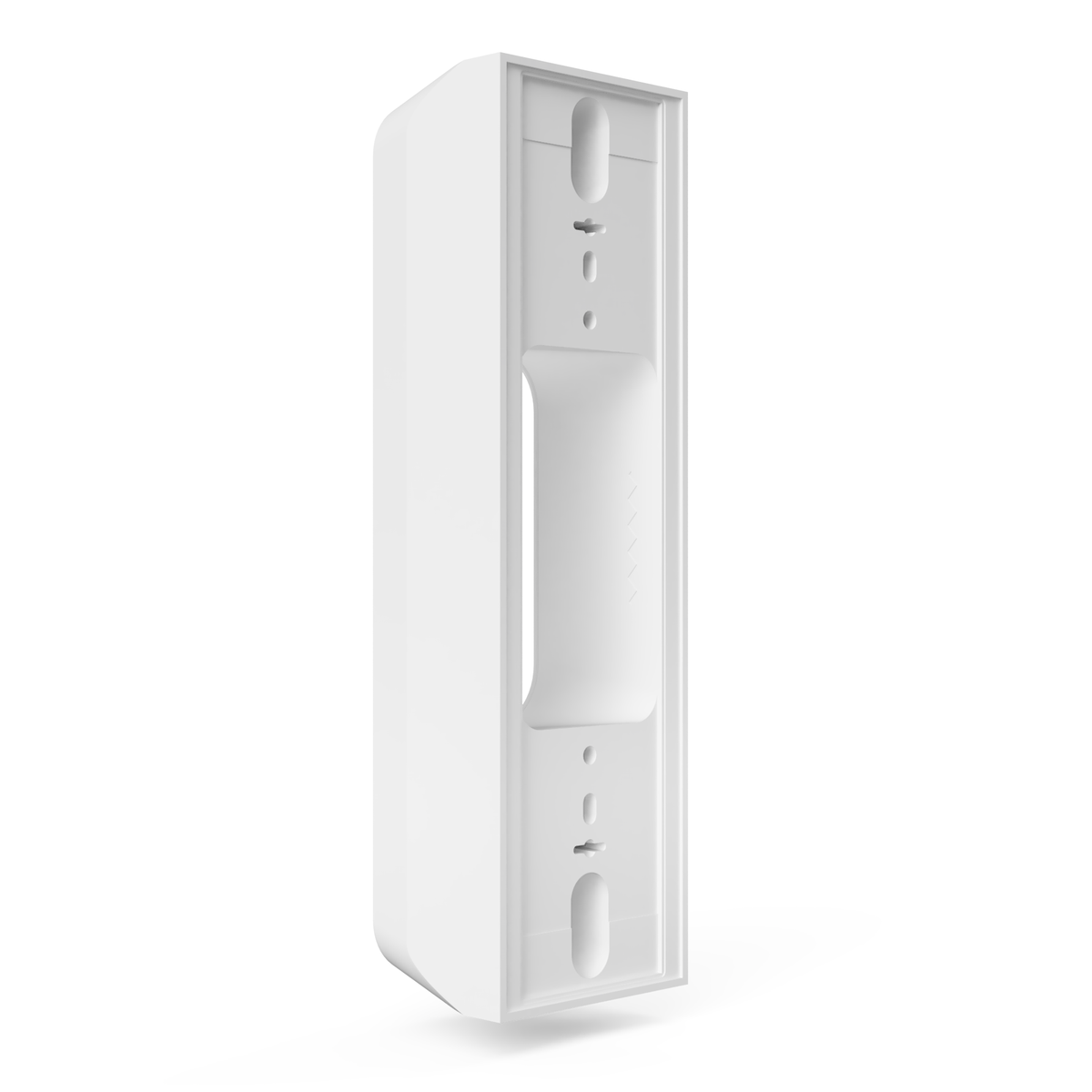

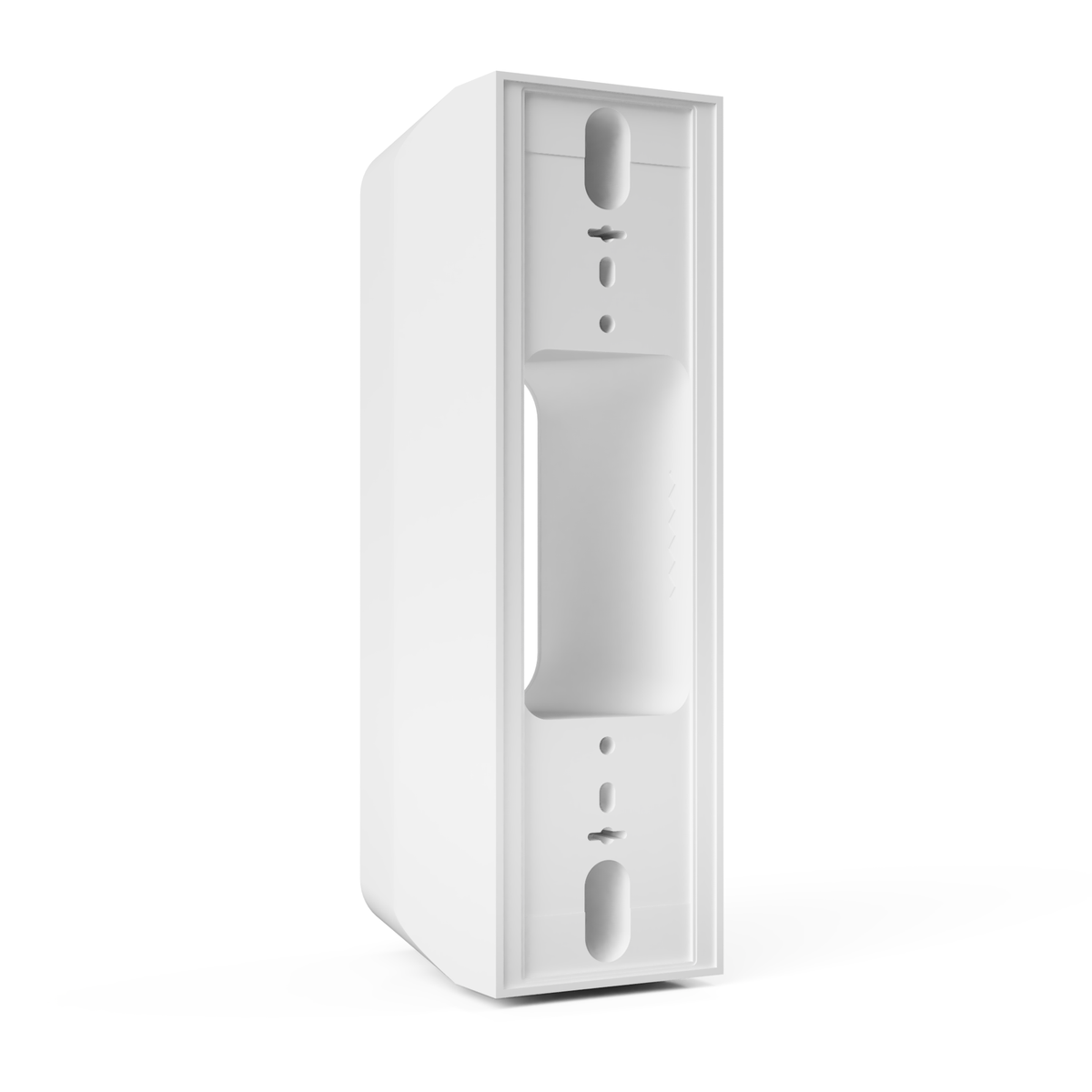

Spacer for Ring Battery Doorbell 2K, 2K Plus & 4K Pro (2nd Gen) — Choose 0.5"–2.5" Depth

Overview

Move your Ring Battery Doorbell forward from a mounting surface with a purpose-built Hidden River Lab doorbell spacer. Choose from nine separate, fixed-depth options between 0.5" and 2.5" in 0.25" increments for Ring Battery Doorbell 4K Pro (5DFYA6), 2K Plus (5DCFAB), and 2K (5DFYA5), all second-generation models. Each purchased spacer has one fixed depth - it is not adjustable.

The 0.5" fixed-depth option creates room behind the doorbell to manage or conceal appropriate low-voltage wiring and connectors, including wire nuts where their use is permitted. Battery-powered installations may not require wiring, but the internal space remains available.

The deeper fixed-depth options position the doorbell farther forward from a recessed doorway, alcove, or set-back mounting position, helping provide clearance from nearby trim or architectural obstructions. Every size uses the same compatible mounting layout and includes internal wiring space.

Before checkout, select your preferred spacer depth and color using the product variant selectors. You receive one spacer manufactured at the selected depth, not a multi-size kit or an adjustable spacer. The listed depth is the additional distance from the mounting wall to the doorbell mounting plane; the installed doorbell adds its own thickness.

Compatibility

✔︎ Designed for:
▪︎ Ring Battery Doorbell 4K Pro — Battery Doorbell Pro (2nd Gen), Model 5DFYA6.
▪︎ Ring Battery Doorbell 2K Plus — Battery Doorbell Plus (2nd Gen), Model 5DCFAB.
▪︎ Ring Battery Doorbell 2K — standard Battery Doorbell (2nd Gen), Model 5DFYA5.
✔︎ Purchase options: One fixed depth and selected color. Available depths: 0.5", 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5".
✔︎ Depth increments: 0.25" between distinct variants; the depth of a purchased spacer cannot be changed.
✔︎ Forward offset: Fixed at the depth selected when ordering (distance from wall to doorbell mounting plane).
✔︎ Internal space: Provided for suitable low-voltage wiring/connectors in all nine depth options.
✔︎ Mounting geometry: Same compatible Ring attachment interface across all nine separate depth variants.
✔︎ Angle: Straight offset; does not add a horizontal or vertical wedge angle.

✖︎ Not compatible with:
✖︎ Ring Wired Doorbell models, including Wired Doorbell 4K Pro, 2K Plus, and 2K.
✖︎ Previous-generation Ring Battery Doorbell models unless specifically identified as compatible.
✖︎ Doorbells from other manufacturers, including eufy, Nest, Arlo, Wyze, Blink, Amcrest, and other brands.
✖︎ Uneven siding profiles that require a dedicated Dutch Lap, clapboard, or brickmold adapter.
✖︎ Use as a certified electrical junction box or enclosure for line-voltage splices.
✖︎ Installations requiring horizontal or vertical camera-angle correction rather than forward offset.

Important: This adapter is designed for Ring Battery Doorbell models 5DFYA6, 5DCFAB, and 5DFYA5 only. Ring uses similar names across generations. Confirm your exact model number before ordering.

Clearance measurement: The selected spacer provides one fixed offset. The installed doorbell projects farther than that offset because its body has its own thickness. Consider the combined projection when measuring a recess or surrounding trim.

What's Included

▪︎ 1 × Ring Battery Doorbell spacer in the single fixed depth and color selected at checkout. Only the selected size is included.
▪︎ Long mounting screws for attaching the HRL adapter to a suitable mounting surface (typically two).
▪︎ Short mounting screws for attaching the original Ring mounting plate to the HRL adapter (typically two; additional screws may be supplied where needed).
✖︎ Not included: Ring doorbell, original Ring mounting plate, wiring/connectors, wire nuts, and other electrical accessories.

Fit & Measurements

▪︎ Available fixed-depth variants: 0.5", 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5".
▪︎ Difference between variants: 0.25". Each physical spacer has its specified, non-adjustable depth.
▪︎ Actual forward offset: Equal to the fixed depth of the individual spacer purchased, measured from wall to doorbell mounting plane.
▪︎ Doorbell fit: Models 5DFYA6, 5DCFAB, and 5DFYA5.
▪︎ Internal space: Present at every depth to accommodate appropriate wiring and small connectors.
▪︎ Angle: No deliberate horizontal or vertical angle correction.

How to select a depth: Choose one fixed-depth variant when ordering. The 0.5" size is often sufficient when the goal is to organize low-voltage wires or suitable connectors behind the doorbell. Choose a deeper size when the doorbell must sit farther forward from a recessed surface or obstructing trim. Depth cannot be adjusted after installation.

→ Include the thickness of the Ring doorbell. The total projection to the device front is approximately the selected fixed spacer depth plus the doorbell body’s projection beyond its mounting plane. Measure the clearance needed at the front of the doorbell and account for the doorbell body before ordering. If the combined projection matters, choose the appropriate fixed-depth variant rather than assuming the spacer can be extended later.

→ Wiring safety: The internal void is routing/clearance space, not an approved electrical junction enclosure. Use only wiring and connectors appropriate for the installation and local electrical rules.

Why Choose This Spacer

▪︎ 0.5" fixed-depth wiring clearance: Creates room behind a supported Ring doorbell for suitable low-voltage wiring and small connectors.
▪︎ Deeper variants up to 2.5": Choose a fixed-size spacer to move the doorbell farther forward from recessed doorway surfaces or obstructing trim.
▪︎ Quarter-inch size selection: Nine individual depth variants help match the required clearance without an adjustable mechanism.
▪︎ Same mounting interface: Every depth maintains the same supported Ring doorbell attachment geometry.
▪︎ Battery or wired-power installation: Internal wiring space is available even when the doorbell operates on its battery.
▪︎ Clean finished install: Provides a purpose-built spacer rather than stacked miscellaneous shims.

Materials & Finish

♺ Made from durable, outdoor-ready PETG plastic using additive manufacturing (3D printing).
▪︎ Designed and manufactured by Hidden River Lab.
▪︎ New condition, intended for everyday outdoor mounting applications.
▪︎ Minor cosmetic artifacts may be visible because of the additive manufacturing process, particularly on hidden or internal surfaces.
▪︎ Visible surfaces are designed to present a clean finished appearance once installed.

Installation Notes

Basic installation tools may be required (e.g., screwdriver). Follow the installation instructions for your exact Ring doorbell model.

▪︎ Step 1 — Verify compatibility. Confirm that the Ring device is model 5DFYA6, 5DCFAB, or 5DFYA5.

▪︎ Step 2 — Determine required clearance before ordering. Measure the recess or trim obstruction and account for the doorbell body thickness when choosing the spacer depth.

▪︎ Step 3 — Confirm the selected fixed-depth variant. Before installation, verify that the received spacer matches the depth chosen at checkout. Each spacer has one manufactured depth and cannot be adjusted.

▪︎ Step 4 — Prepare the mounting area. Confirm the wall is flat and stable. If low-voltage wiring is used, ensure that its routing and connectors are suitable and power is isolated before handling conductors.

▪︎ Step 5 — Position the selected spacer. Align the fixed-depth spacer with the mounting location and route any permitted low-voltage conductors through the internal clearance without pinching them.

▪︎ Step 6 — Secure the spacer. Use appropriate supplied longer mounting screws and sound wall support for the selected depth.

▪︎ Step 7 — Attach the Ring mounting plate. Fasten the original Ring mounting bracket with the supplied short mounting screws; follow model-specific Ring instructions.

▪︎ Step 8 — Install and inspect. Attach the doorbell, confirm that the assembly is secure, and check that surrounding trim does not obstruct the camera or device operation.

The spacer is a mechanical mounting accessory, not a weatherproof electrical box, power supply, or voltage converter. Follow the doorbell manufacturer's instructions for sealing and wiring.

Color & Image Note

Actual color may vary slightly due to lighting, photography, and display calibration. Images may show compatible Ring doorbells, original Ring mounting brackets, siding, trim, wiring, or example installations for illustration purposes. Ring doorbell and illustrated accessories are not included unless expressly stated.

Disclaimers & Policies

Brand & Affiliation Disclaimer

This is an aftermarket doorbell mounting accessory designed and manufactured by Hidden River Lab. Hidden River Lab is not affiliated with, sponsored by, or endorsed by Ring. Ring® is a trademark of its respective owner. Brand names and model names are used solely to identify product compatibility.

Liability Disclaimer

Installation and use of this product are the purchaser's responsibility. To the extent permitted by applicable law, Hidden River Lab is not liable for damage to devices, wiring, mounting surfaces, exterior finishes, or property; loss of functionality; or personal injury resulting from improper installation, misuse, unauthorized modification, inadequate sealing, or unsuitable environmental conditions. If unsure about installation, consult a qualified professional. Nothing in this notice limits rights or remedies that cannot legally be excluded.

Intellectual Property Notice

The product design, images, text, and related listing content are intellectual property of Hidden River Lab. Purchasing this item does not grant any license to copy, reproduce, manufacture, reverse-engineer, or commercially exploit the design in whole or in part.

Support

Need help selecting one fixed depth — 0.5", 1", 1.75", or another available size? Send your Ring model number, a side-view photo of the mounting recess, and the measurement from the wall to the obstruction. Include the doorbell body thickness when planning total projection. We can help identify the appropriate size before you order.
