6.5" × 4.75" 25° NuTone / M&S Intercom Retrofit Adapter for Ring Video Doorbell Pro (8VR1P6) / Wired Doorbell Plus (1st Gen)
6.5" × 4.75" 25° NuTone / M&S Intercom Retrofit Adapter for Ring Video Doorbell Pro (8VR1P6) / Wired Doorbell Plus (1st Gen)
Couldn't load pickup availability
Overview
Replace a legacy intercom door station with a Ring video doorbell while covering the original wall opening and improving camera positioning. This 6.5" × 4.75" 25° Angled NuTone / M&S Intercom Retrofit Adapter by Hidden River Lab is designed specifically for the original Ring Video Doorbell Pro (Model 8VR1P6), later renamed Ring Wired Doorbell Plus (1st Gen).
Designed for many older NuTone / M&S (Music & Sound) intercom door stations and similar-size openings, the adapter helps conceal the oversized intercom cutout and surrounding wall imperfections. Its purpose-built mounting interface allows you to replace the old intercom station with the compatible Ring doorbell without leaving a large exposed opening.

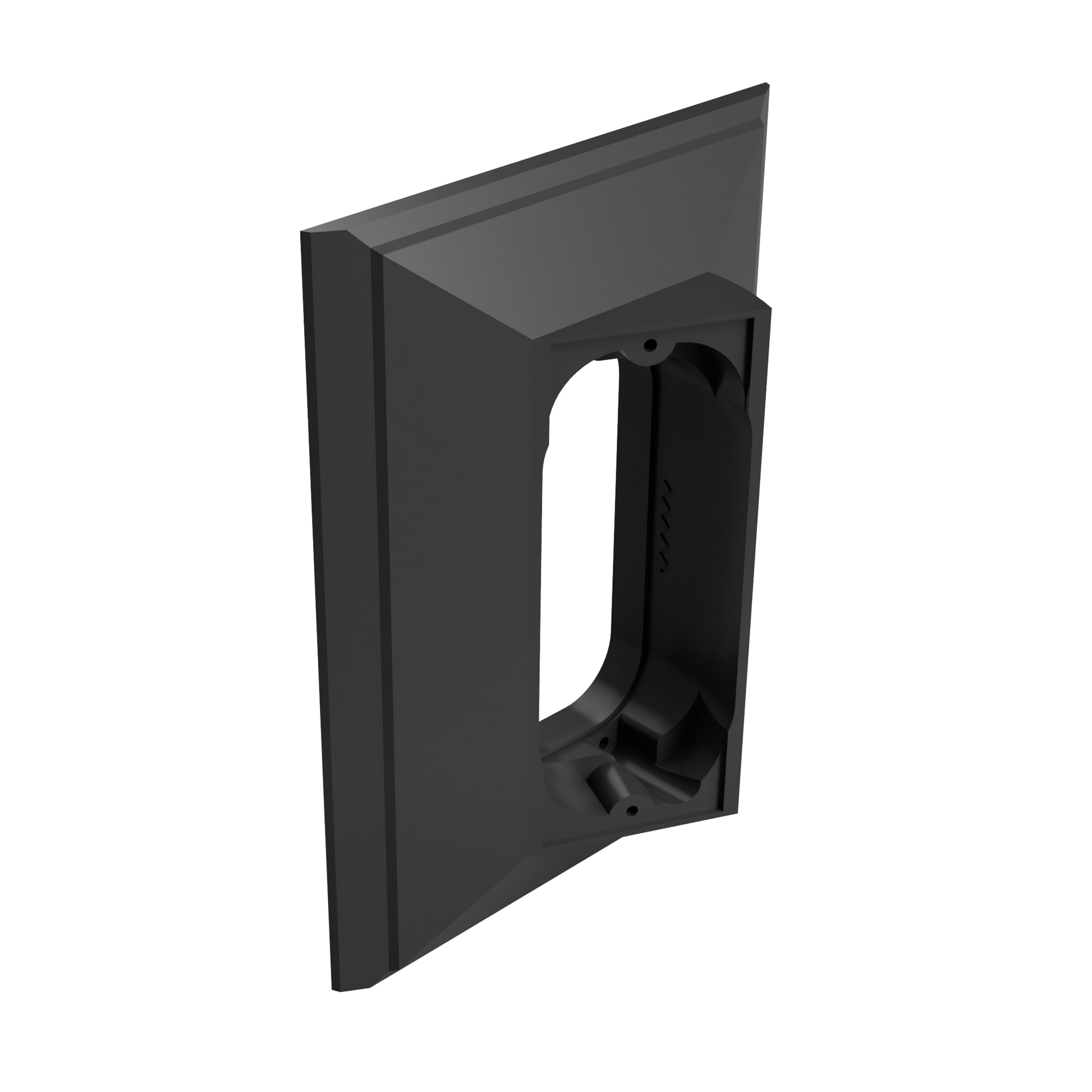

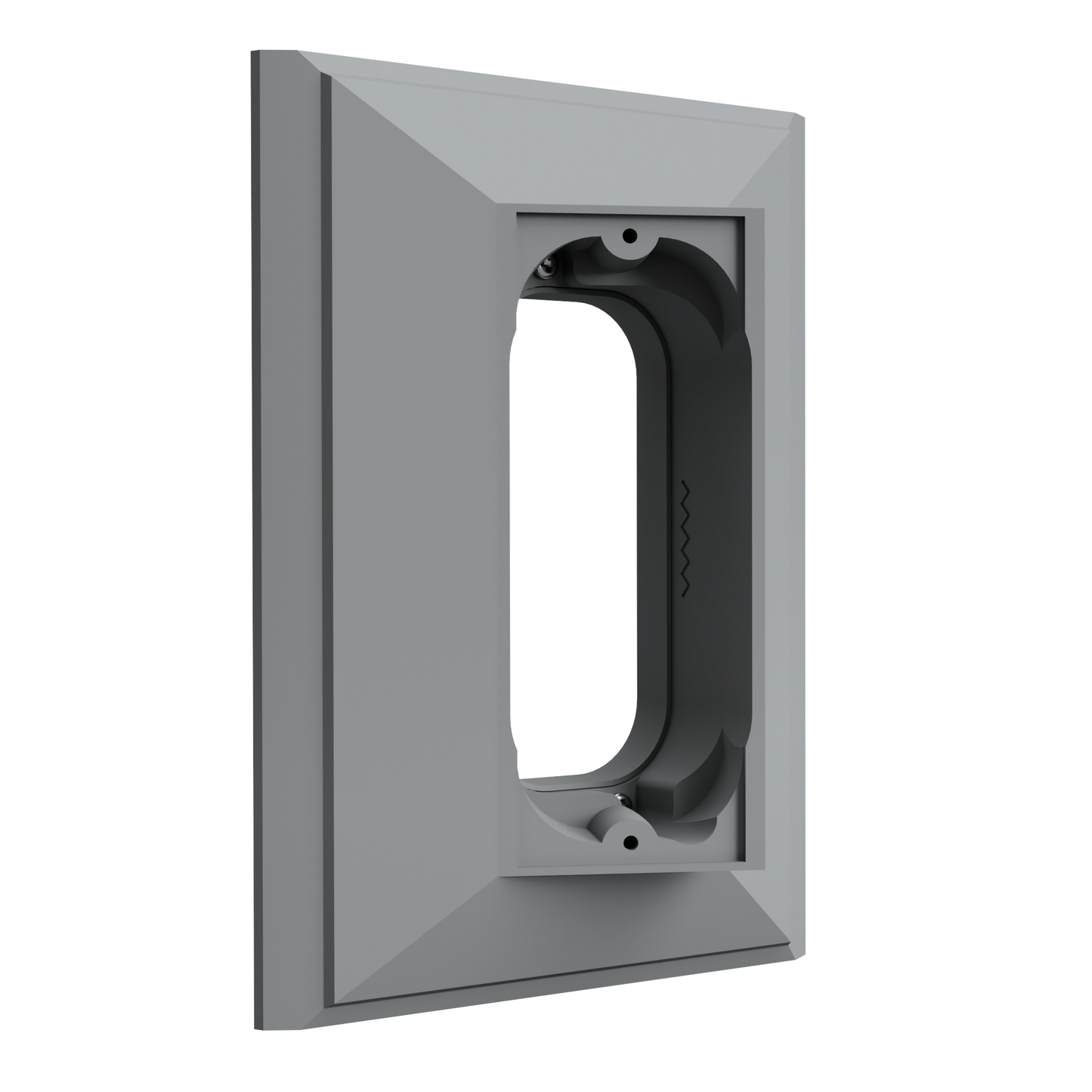

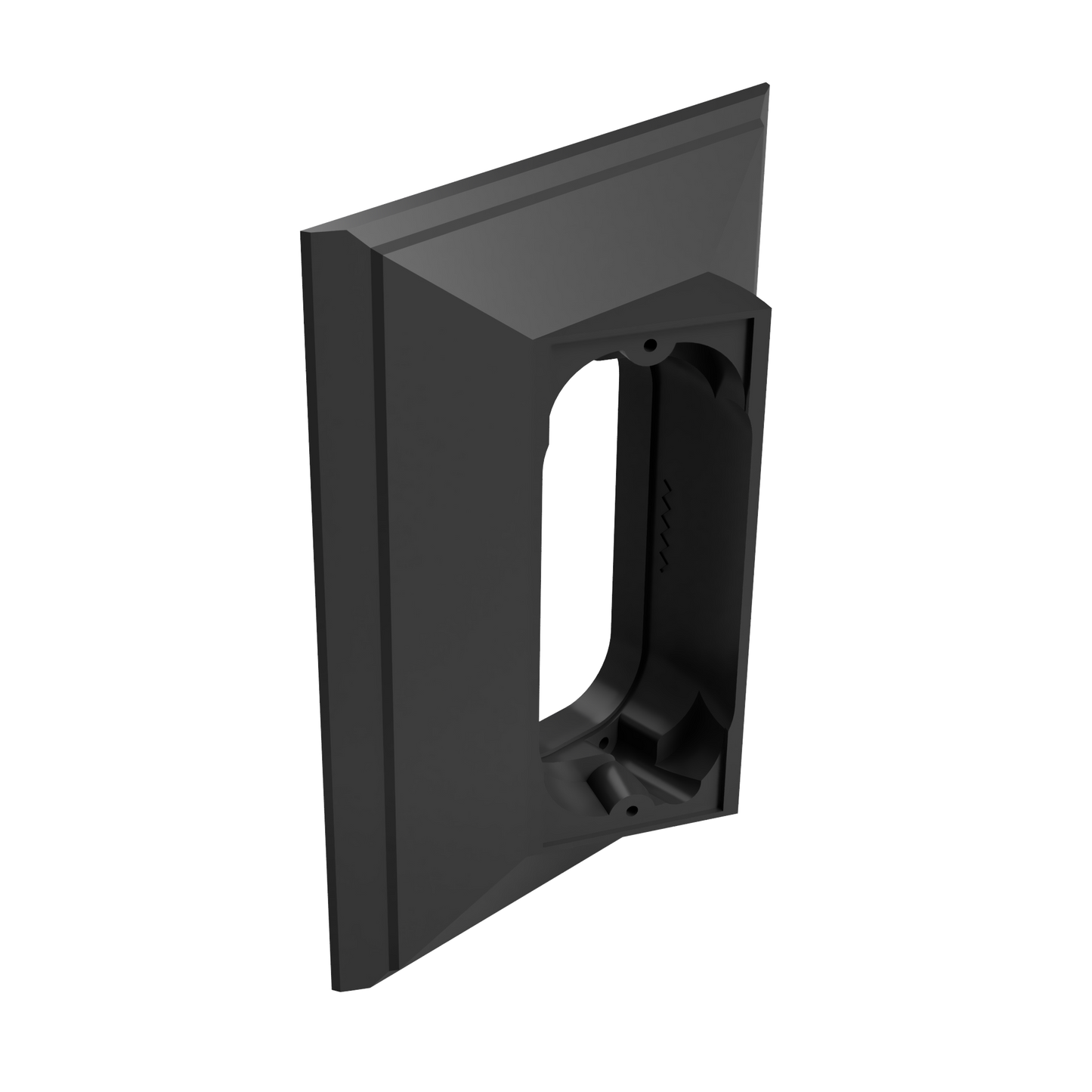

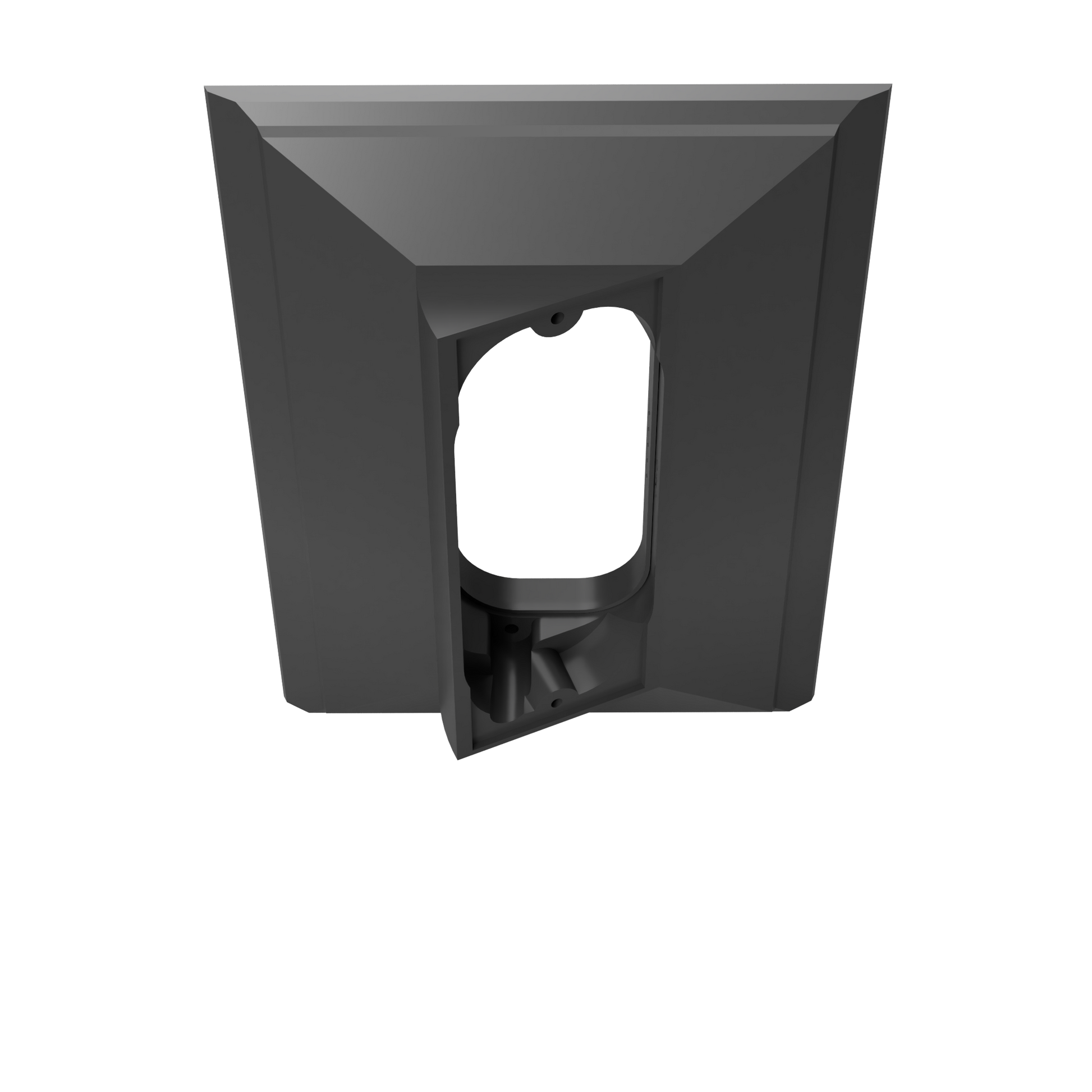

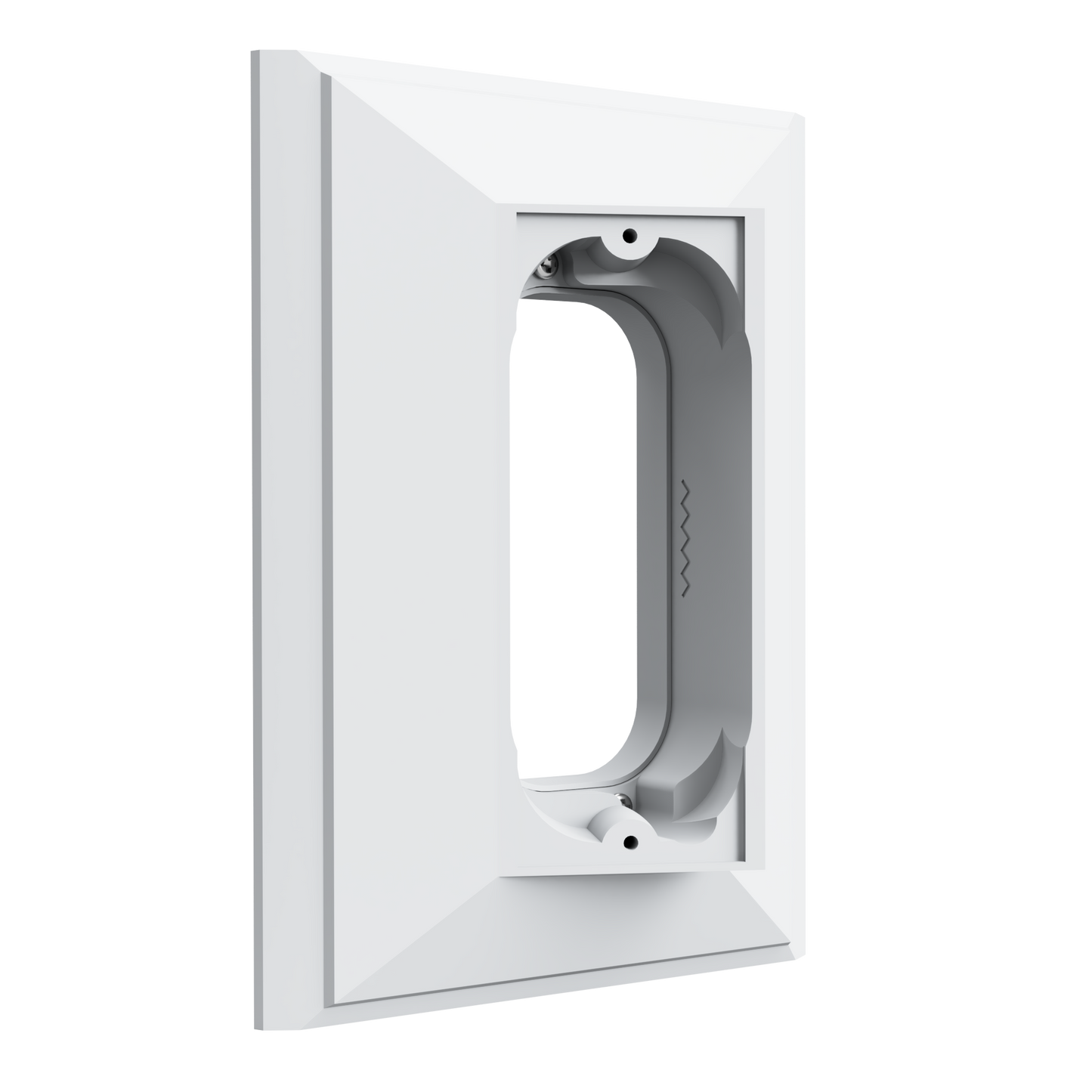

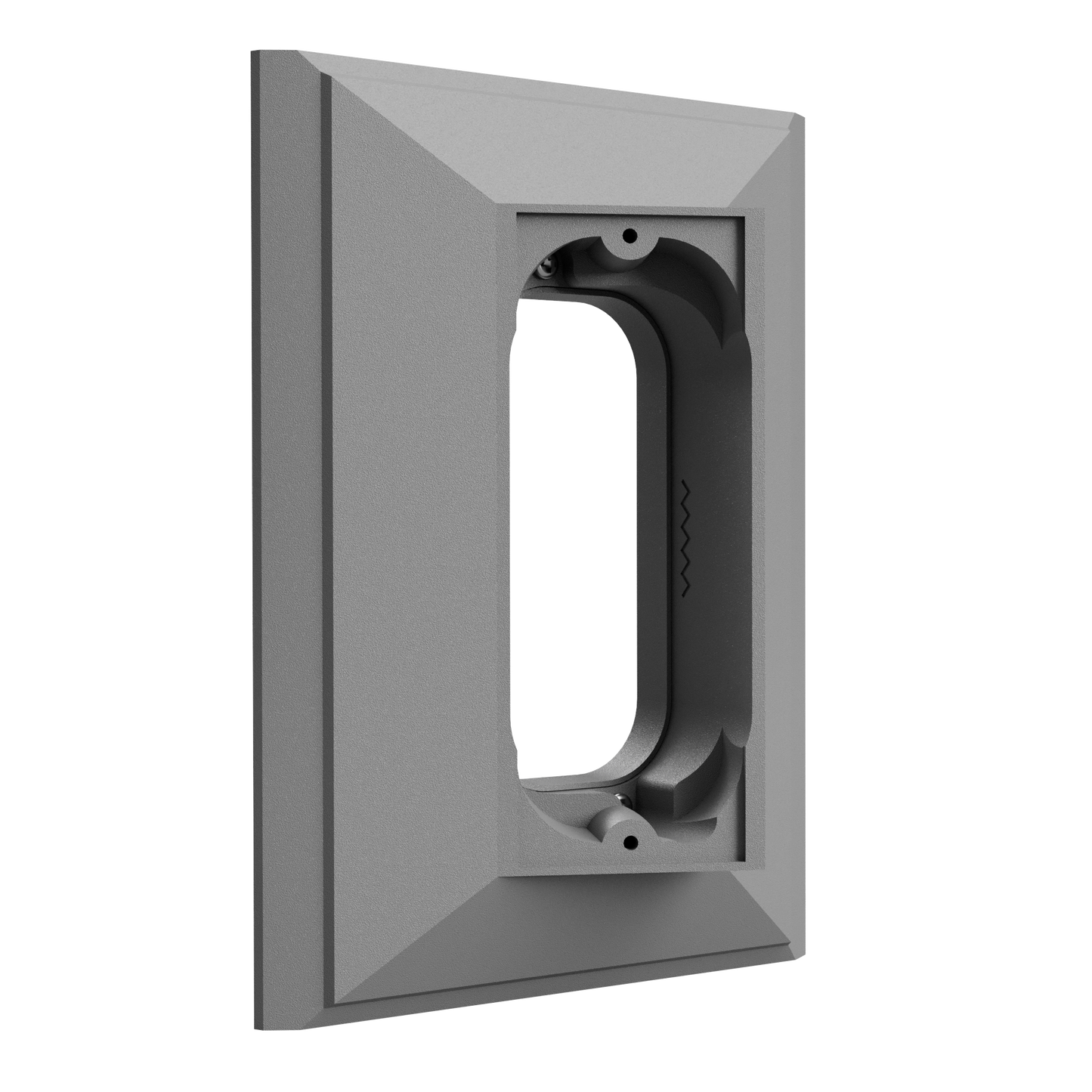

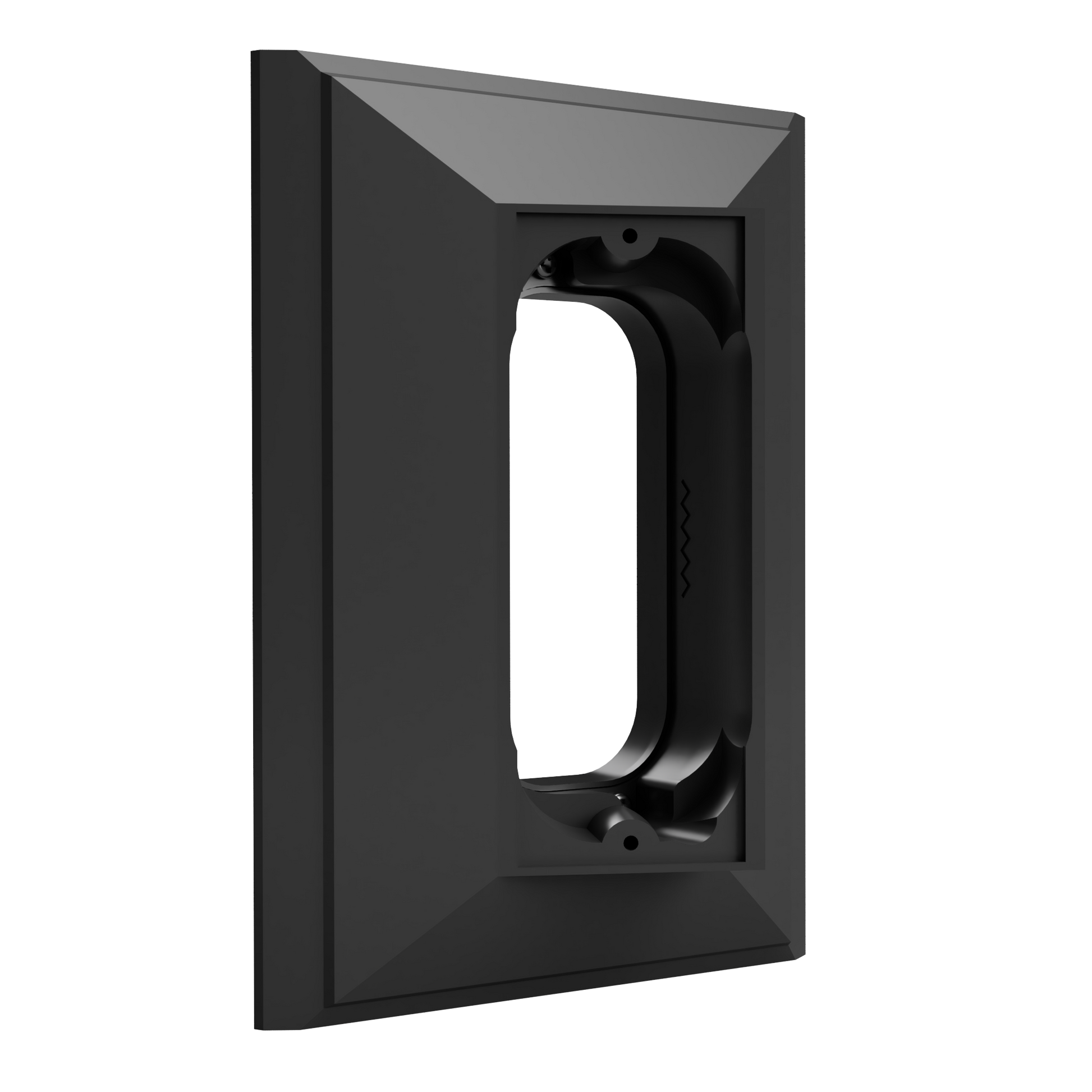

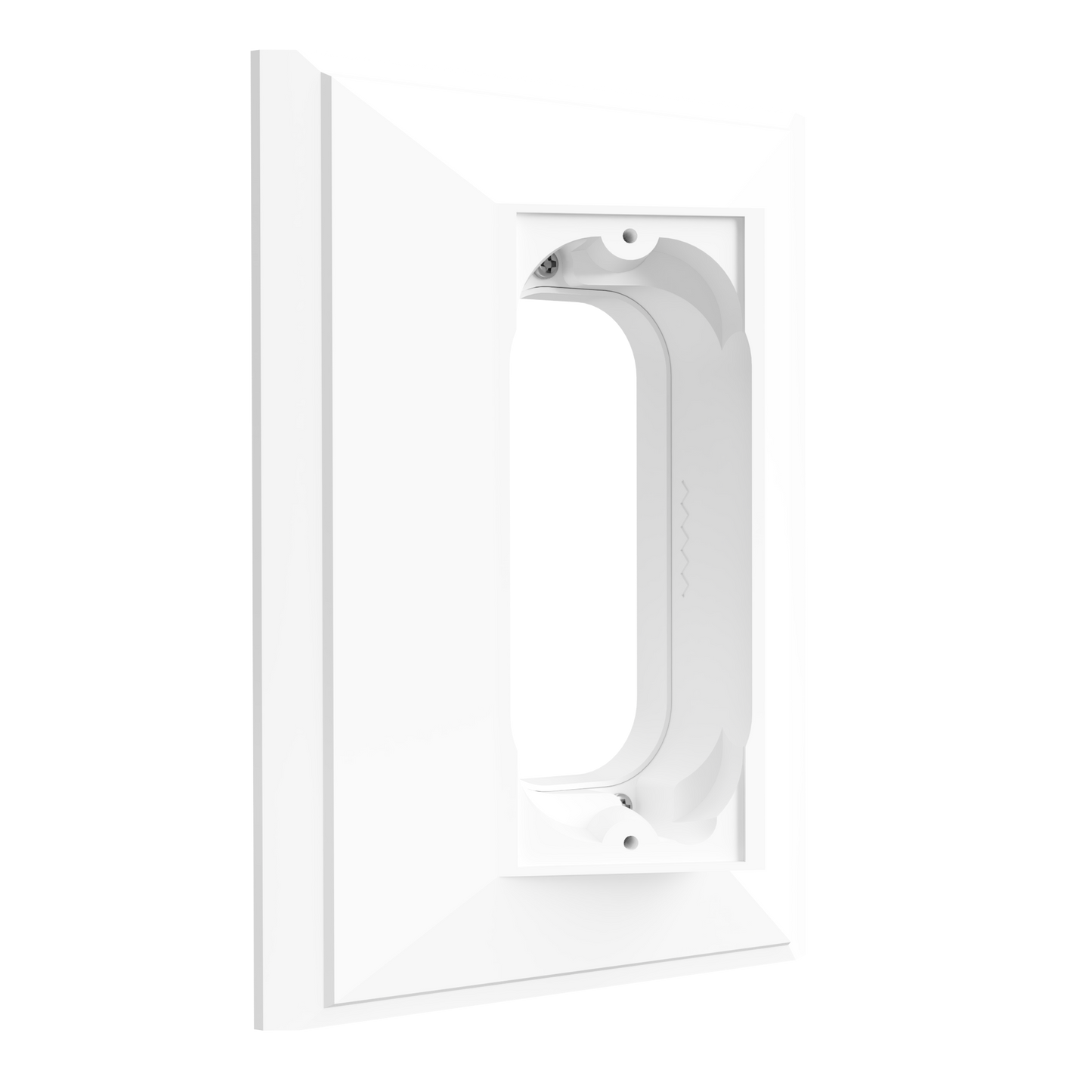

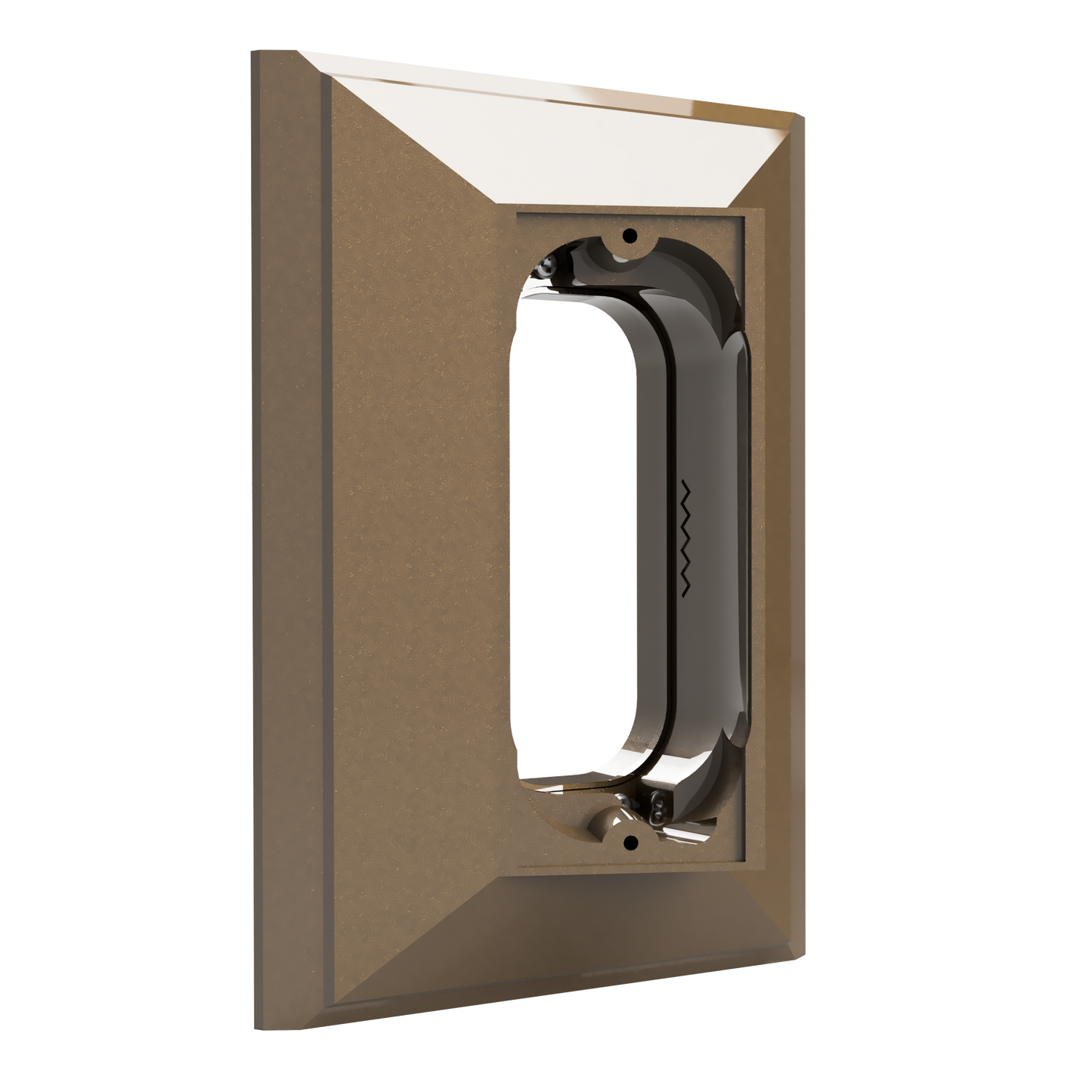

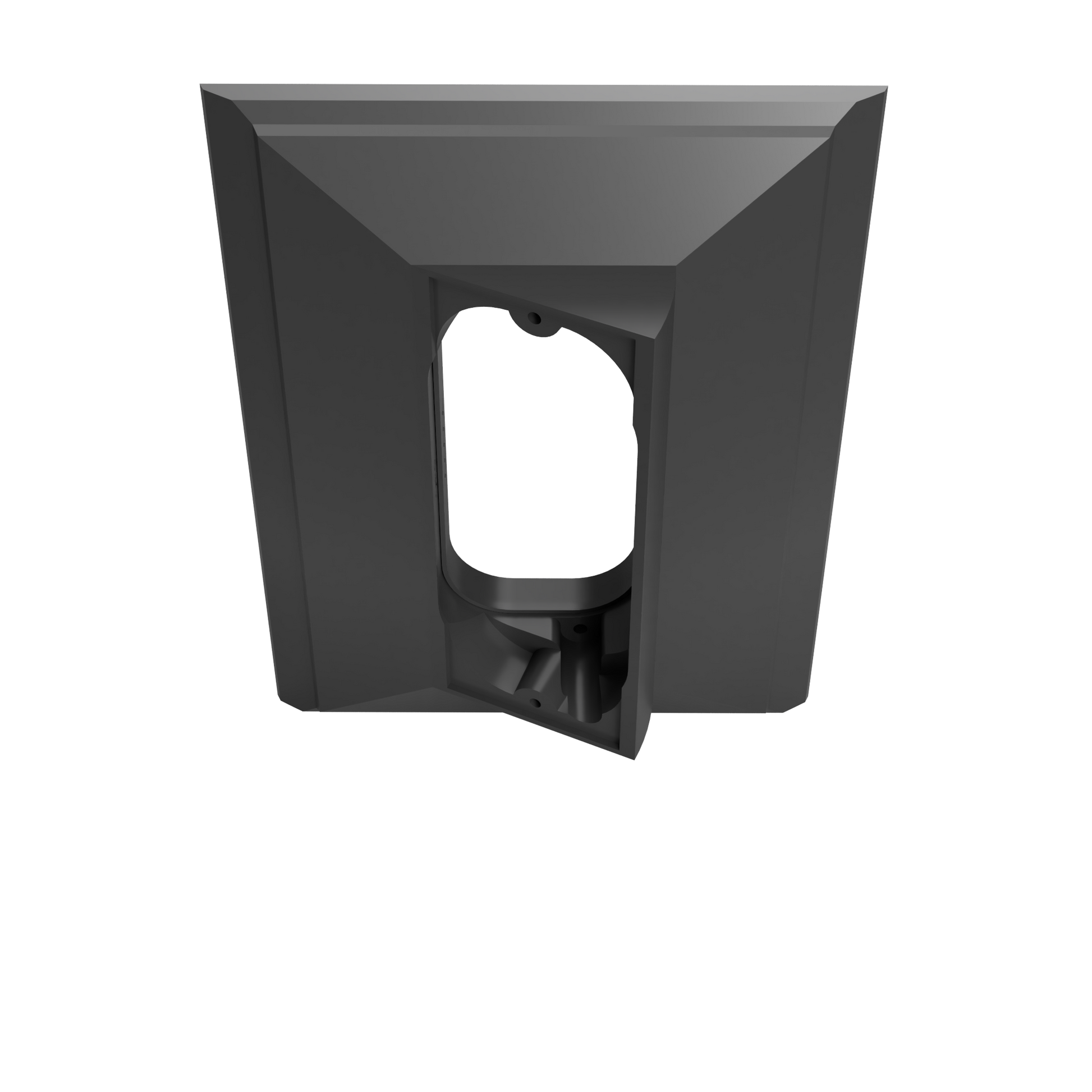

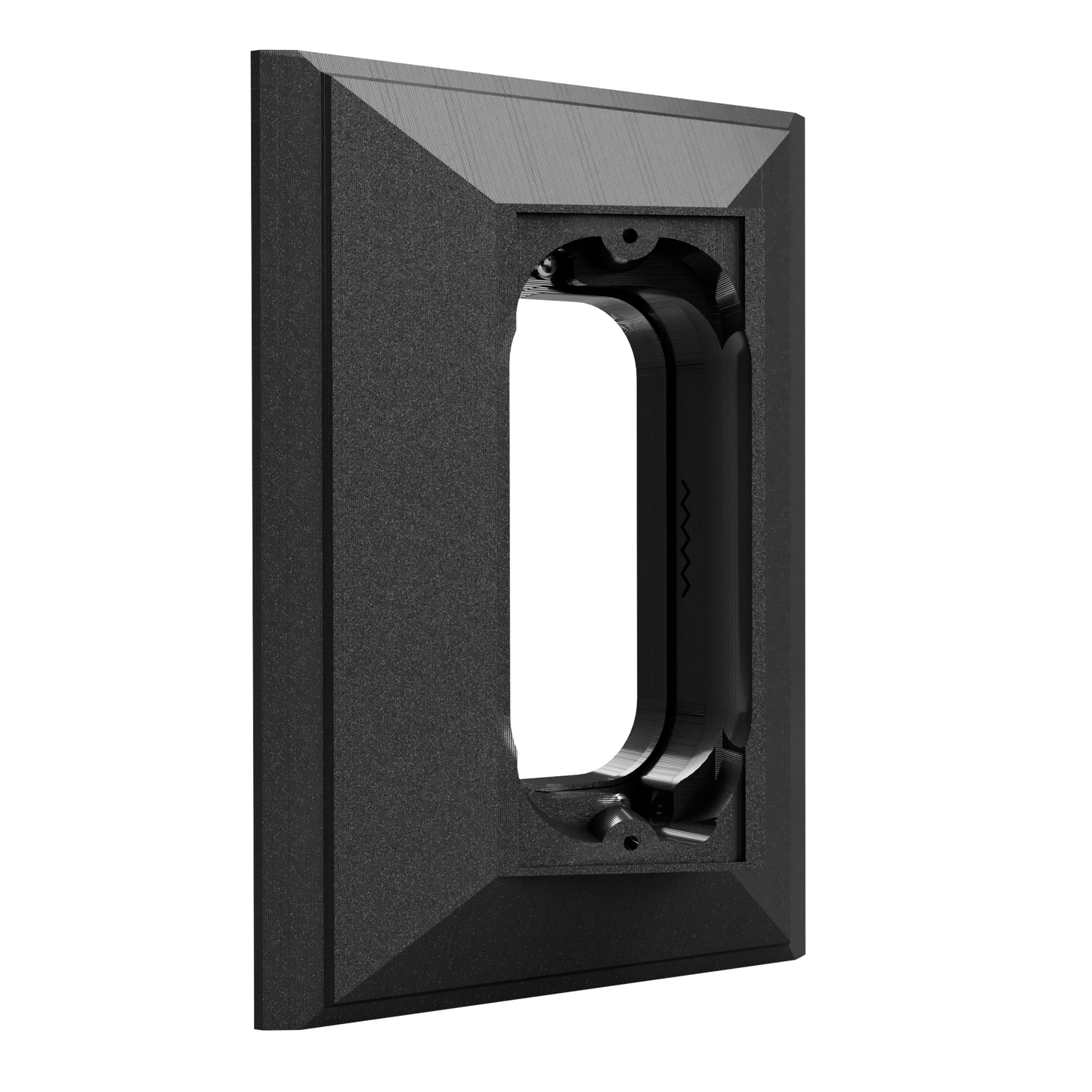

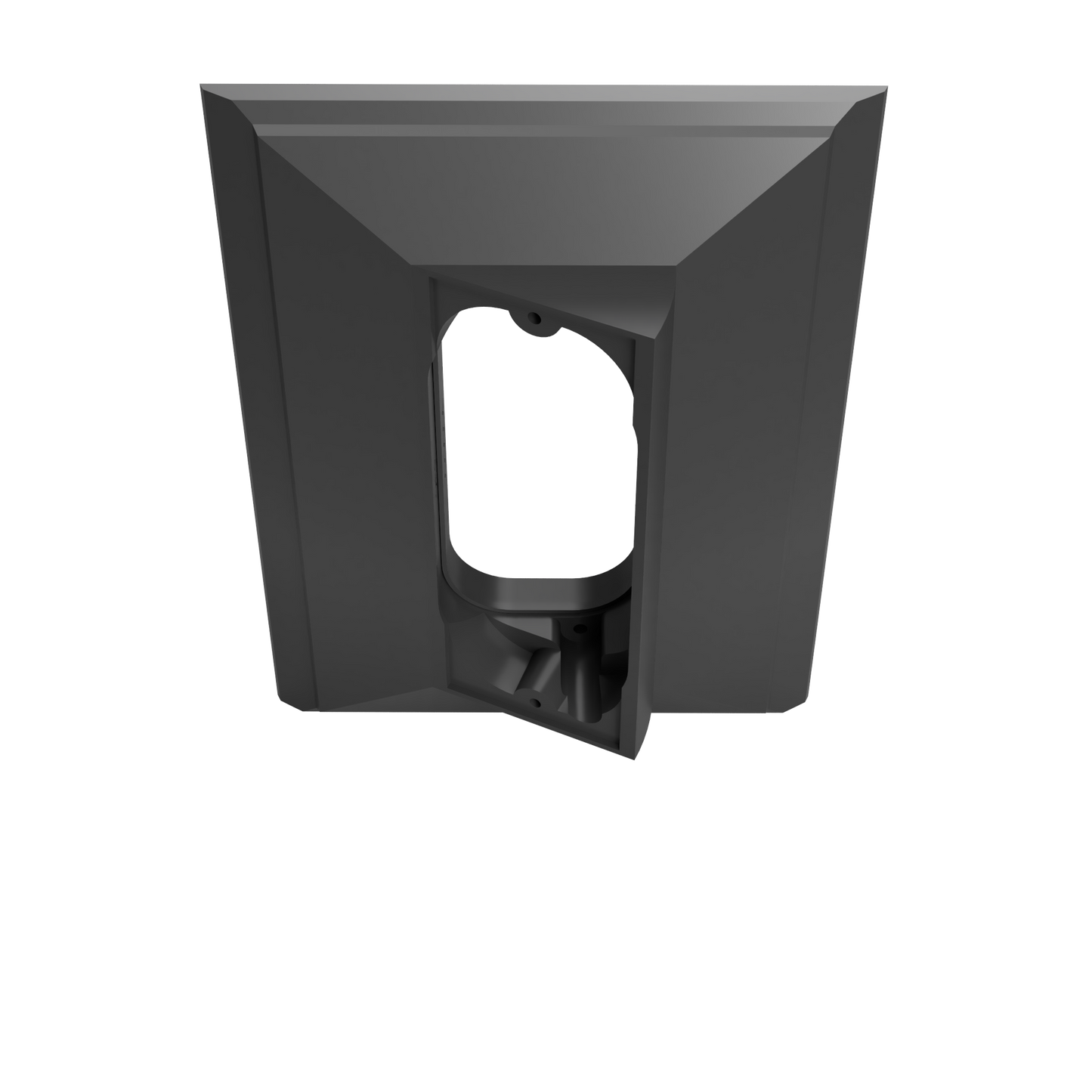

The two-piece design consists of a wall-covering base plate and a 25° angled face plate. The components are secured with machine screws, which remain concealed in the completed installation for a clean, professional appearance.
The built-in 25° horizontal side angle helps redirect the camera toward your front door, walkway, or approach path when a straight 0° installation would point too far along the wall. The reversible design supports 25° left or 25° right camera positioning, depending on your installation location.
Important — Original Ring Video Doorbell Pro Only: This adapter is specifically designed for the original Ring Video Doorbell Pro / Wired Doorbell Plus (1st Gen), Model 8VR1P6. It is NOT compatible with Ring Video Doorbell Pro 2, the newer Wired Doorbell Pro, or Wired Doorbell 4K Pro. These models use different mounting designs and are not interchangeable.
Compatibility
✔︎ Designed exclusively for:
▪︎ Ring Video Doorbell Pro — original model, Model 8VR1P6.
▪︎ Ring Wired Doorbell Plus (1st Gen) — the same original Video Doorbell Pro under its later product name.
▪︎ Product SKU reference: 8VR1P6-0EM0, as identified on the original Ring device.
✔︎ Retrofit application: Many older NuTone / M&S intercom door stations and similar-size legacy intercom openings.
✔︎ Adapter dimensions: Approximately 6.5" × 4.75".
✔︎ Built-in angle: Fixed 25° horizontal side angle.
✔︎ Orientation: Reversible for 25° left or right camera positioning.
✔︎ Vertical tilt: No additional upward or downward inclination.
✔︎ Mounting surface: Flat, stable wall surfaces.
✔︎ Construction: Two-piece intercom adapter with concealed assembly screws.
✖︎ Not compatible with:
✖︎ Ring Video Doorbell Pro 2 / Wired Doorbell Pro, Model 5AT2S2 — a newer, different doorbell.
✖︎ Ring Wired Doorbell 4K Pro (3rd Gen), Model 5DFYA2 — the newer Retinal 4K model.
✖︎ Ring Wired Doorbell 2K Plus (2nd Gen), Model 5DFYA3 — not the same device as the original Wired Doorbell Plus.
✖︎ Ring Wired Doorbell 2K (2nd Gen), Model 5DFYA4.
✖︎ Ring Wired Doorbell Elite and Video Doorbell Elite models.
✖︎ Ring Battery Doorbell models.
✖︎ Other Ring doorbells not specifically listed as compatible.
✖︎ Stacking with additional OEM Ring corner or wedge kits unless separately confirmed as compatible.
✖︎ Non-flat mounting surfaces requiring specially shaped siding or brickmold adapters.
Important — Verify the Original Ring Pro: This adapter fits the original Ring Video Doorbell Pro (8VR1P6), later sold as Wired Doorbell Plus (1st Gen). The original device may be identified by its Video Doorbell Pro label or product SKU, such as 8VR1P6-0EM0. Product SKU suffixes can vary; verify the doorbell model and mounting interface before ordering.
Do not confuse these models: The original Video Doorbell Pro, the later Video Doorbell Pro 2, and the newest Wired Doorbell 4K Pro are different devices. This Hidden River Lab adapter is designed only for the original Video Doorbell Pro / Wired Doorbell Plus (1st Gen).
Opening coverage: The adapter measures approximately 6.5" × 4.75" and is intended to cover many legacy NuTone / M&S intercom openings. Because wall cutouts and mounting arrangements vary, complete coverage of every opening is not guaranteed.
Viewing angle: The adapter changes the direction in which the camera faces but does not increase the camera's optical field of view. Actual coverage depends on installation height, doorway geometry, mounting location, and surrounding obstructions.
What's Included
▪︎ 1 × 6.5" × 4.75" base plate — designed to cover the original intercom opening.
▪︎ 1 × Reversible 25° angled face plate — provides the mounting interface for the original Ring Video Doorbell Pro (8VR1P6).
▪︎ Machine screws to secure the angled face plate to the base plate.
▪︎ Self-tapping screws to mount the compatible Ring doorbell to the adapter.
✖︎ Not included: Ring video doorbell, original Ring corner/wedge kits, legacy intercom components, wall-mounting screws, and wall anchors.
Fit & Measurements
▪︎ Overall adapter plate size: Approximately 6.5" × 4.75".
▪︎ Doorbell fit: Original Ring Video Doorbell Pro / Wired Doorbell Plus (1st Gen), Model 8VR1P6.
▪︎ Retrofit application: Many legacy NuTone / M&S intercom door-station openings and similar-size cutouts.
▪︎ Construction: Two pieces — wall-covering base plate and 25° angled doorbell face plate.
▪︎ Horizontal camera angle: Fixed 25° side angle.
▪︎ Angle direction: Left or right, depending on the installation orientation.
▪︎ Vertical inclination: No additional vertical tilt.
▪︎ Mounting surface: Flat walls with appropriate structural support.
▪︎ Original mounting points: May be reused where suitable, depending on the existing intercom installation.
Understanding the dimensions:
The 6.5" × 4.75" measurement refers to the wall-covering adapter plate, not the dimensions of the Ring doorbell itself. This larger plate is designed to conceal the opening left by many older NuTone / M&S intercom door stations while providing a mounting interface for the smaller Ring Video Doorbell Pro.
The plate dimensions describe its overall coverage area, not the maximum wall cutout it can safely span. A secure installation requires suitable structural support around the opening.
Legacy intercom opening coverage:
The adapter is intended to cover many existing NuTone / M&S intercom openings while creating a suitable mounting surface for the original Ring Video Doorbell Pro.
Legacy intercom installations may have different wall-opening dimensions, mounting-hole positions, recessed housings, and surrounding wall conditions. Verify the opening size and mounting arrangement before ordering.
Understanding the 25° angle:
The built-in 25° horizontal side angle redirects the doorbell camera relative to the mounting wall. This can help improve the camera's viewing direction when the original intercom location is positioned to one side of the front door.

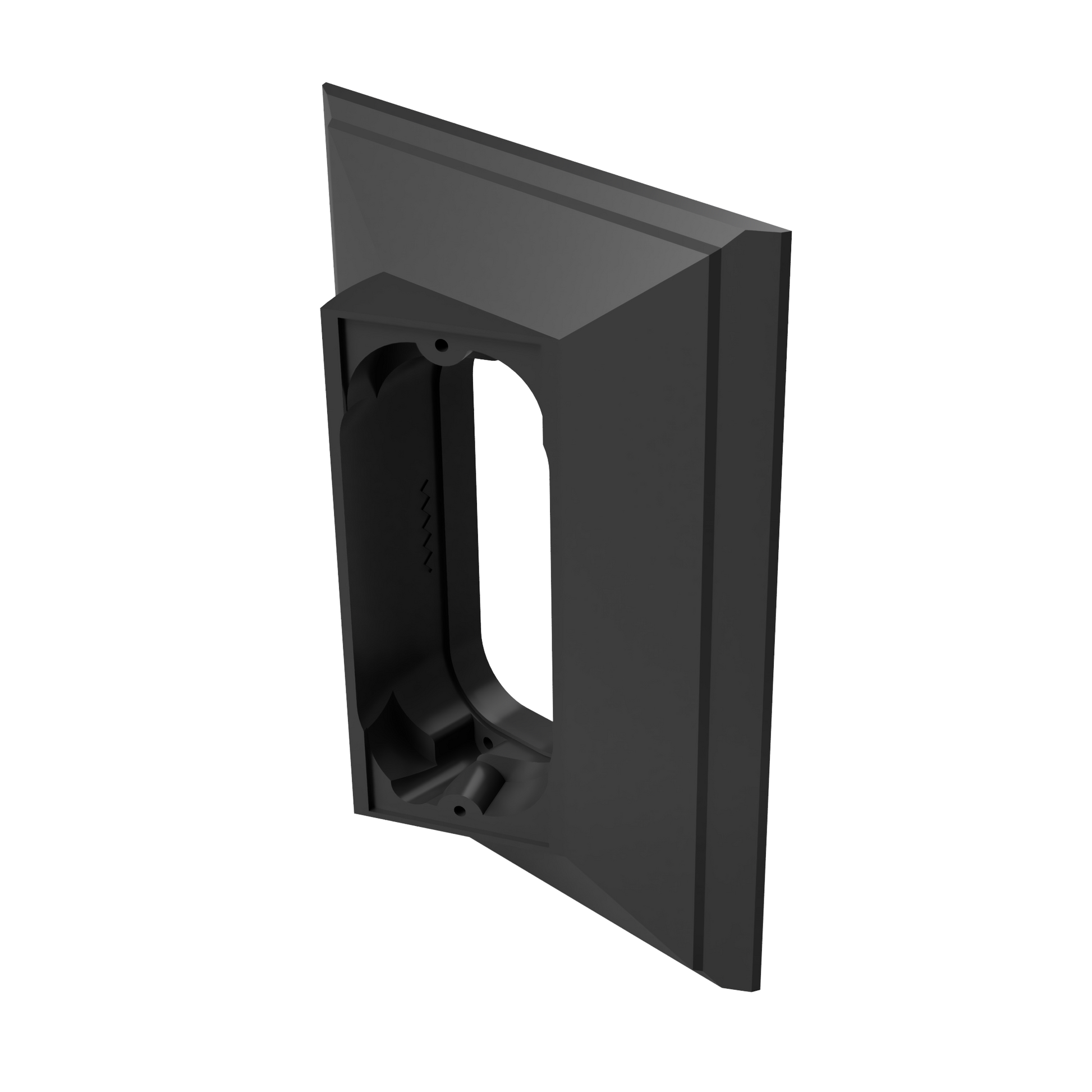

The same adapter supports either left or right camera positioning. No separate left-hand or right-hand version is required.
→ Measure your opening: Compare the dimensions of your existing intercom cutout and surrounding wall area with the 6.5" × 4.75" adapter plate before ordering.
→ Verify your Ring model: This adapter is intended for the original Ring Video Doorbell Pro / Wired Doorbell Plus (1st Gen), Model 8VR1P6. It does not fit Video Doorbell Pro 2 or the newer 4K Pro.
Why Choose This Adapter
▪︎ Legacy intercom retrofit: Replace an outdated NuTone / M&S intercom door station with the original Ring Video Doorbell Pro.
▪︎ 6.5" × 4.75" opening coverage: Helps conceal many old intercom cutouts and surrounding cosmetic imperfections.
▪︎ Built-in 25° camera positioning: Redirects the camera toward the entrance or approach path without requiring a separate corner mount.
▪︎ Reversible left/right installation: The same adapter supports both mounting orientations.
▪︎ Clean finished appearance: Creates a purpose-built angled mounting surface instead of leaving an exposed or mismatched wall opening.
▪︎ Concealed assembly hardware: Two-piece construction keeps the adapter's assembly screws hidden in the finished installation.
▪︎ Model-specific fit: Designed for Ring Video Doorbell Pro / Wired Doorbell Plus (1st Gen), Model 8VR1P6.
▪︎ Original-generation compatibility: Supports owners who are retaining or reinstalling their original Ring Video Doorbell Pro rather than replacing it with a newer model.
▪︎ Professional retrofit application: Useful for installers working with compatible legacy intercom openings and existing low-voltage doorbell installations.
Materials & Finish
♺ Made from durable PETG plastic using 3D printing.
▪︎ Designed and manufactured by Hidden River Lab.
▪︎ New condition.
▪︎ Minor marks or layer lines from 3D printing may be visible, particularly on hidden or internal surfaces.
▪︎ Visible surfaces are designed to provide a clean finished appearance once installed.
▪︎ This is a mechanical mounting accessory and is not represented as a waterproof or rated electrical enclosure.
Installation Notes
Basic tools required (e.g., screwdriver). Follow Ring's installation instructions for the original Video Doorbell Pro / Wired Doorbell Plus.
▪︎ Step 1 — Verify compatibility. Confirm that your device is the original Ring Video Doorbell Pro / Wired Doorbell Plus (1st Gen), Model 8VR1P6. Do not use this adapter with Ring Video Doorbell Pro 2, Wired Doorbell Pro, or Wired Doorbell 4K Pro.
▪︎ Step 2 — Disconnect power. Turn off the relevant circuit at the breaker or fuse box and verify that power is off before handling existing wiring.
▪︎ Step 3 — Remove the existing intercom. Remove the legacy intercom door station and safely manage the old wiring. Do not connect existing intercom wiring directly to the Ring doorbell without verifying that the power supply and wiring meet Ring's requirements.
▪︎ Step 4 — Inspect the mounting area. Measure the original intercom opening and compare it with the 6.5" × 4.75" base plate. Check the surrounding wall and available mounting points. Confirm that the plate can be securely attached to suitable structural backing.
▪︎ Step 5 — Select the viewing direction. Determine whether the camera should face 25° left or 25° right, depending on your doorway layout and intended viewing area.
▪︎ Step 6 — Install the base plate. Position the 6.5" × 4.75" base plate over the old intercom opening and secure it using appropriate wall-mounting hardware. Reuse existing mounting points where suitable. Wall-mounting screws and anchors are not included.
▪︎ Step 7 — Attach the angled face plate. Position the 25° angled face plate in the selected left or right orientation and secure it to the base plate using the included machine screws. Confirm that the components are properly seated and securely fastened without overtightening.
▪︎ Step 8 — Prepare the doorbell wiring. Route compatible doorbell wiring to the mounting location according to Ring's installation instructions. Ensure that wires are not pinched or damaged by the adapter.
▪︎ Step 9 — Mount the doorbell. Attach the original Ring Video Doorbell Pro to the angled face plate using the included self-tapping mounting screws, following Ring's instructions for the electrical connections and final device installation.
▪︎ Step 10 — Verify the installation. Confirm that the adapter and doorbell are securely mounted, all electrical connections are properly completed, and the camera faces the intended viewing area.
▪︎ Step 11 — Complete setup. Restore power when the installation is complete and safe, then follow Ring's instructions for configuration and testing.
Installation precautions: Install on a flat, stable mounting surface with appropriate mechanical support. Weather-seal the surrounding wall opening as appropriate without obstructing any required drainage or ventilation. Follow Ring's electrical, power-supply, and installation requirements.
If existing intercom wiring requires modification, the original power supply is unsuitable, or you are uncertain about electrical safety, consult a qualified electrician.
Model Compatibility FAQ
Does this adapter fit the original Ring Video Doorbell Pro?
Yes. This 6.5" × 4.75" 25° intercom retrofit adapter is designed for the original Ring Video Doorbell Pro, Model 8VR1P6, also known as Ring Wired Doorbell Plus (1st Gen).
Is Ring Video Doorbell Pro the same as Ring Wired Doorbell Plus?
Yes. Ring renamed the original Video Doorbell Pro to Wired Doorbell Plus. This adapter is for that original device, not the newer Wired Doorbell 2K Plus (2nd Gen).
Will this adapter fit a Ring doorbell labeled 8VR1P6-0EM0?
The 8VR1P6-0EM0 SKU identifies an original Ring Video Doorbell Pro configuration. This adapter is designed for the original 8VR1P6 model family. If your device has a different SKU or you are unsure about its mounting interface, contact Hidden River Lab with a photo of the device label before ordering.
Will this adapter fit Ring Video Doorbell Pro 2 or Wired Doorbell Pro?
No. Ring Video Doorbell Pro 2, later renamed Wired Doorbell Pro, is a different device identified by Model 5AT2S2. It uses a different mounting design and is not compatible with this adapter.
Does this adapter fit the newer Ring Wired Doorbell 4K Pro?
No. The newer Ring Wired Doorbell 4K Pro (3rd Gen), Model 5DFYA2, is not compatible with this adapter. It is a different generation with a different mounting interface.
What size intercom opening does this adapter cover?
The wall-covering base plate measures approximately 6.5" × 4.75" and is designed to conceal many legacy NuTone / M&S intercom openings. Actual coverage depends on the wall cutout, mounting-hole positions, and surrounding wall conditions. Measure your opening before ordering.
Can I install this 25° adapter on either side of my front door?
Yes. The reversible configuration allows the camera to face 25° left or 25° right, depending on the installation location and the desired viewing direction.
Does the adapter increase the camera's field of view?
No. The adapter changes the direction the camera faces but does not increase its optical field of view. Actual coverage depends on the doorbell's camera specifications and installation location.
Can I combine this adapter with the original Ring corner or wedge kit?
This Hidden River Lab adapter already provides a fixed 25° horizontal angle. Stacking it with an additional Ring corner or wedge kit is not a supported configuration unless separately confirmed as compatible.
Color & Image Note
Actual product color may vary slightly due to lighting, photography, and screen calibration. Images may show Ring doorbells, legacy intercom components, mounting accessories, or example installations for illustration purposes. These components are not included unless explicitly stated above.
Disclaimers & Policies
Brand & Affiliation Disclaimer
This is an aftermarket intercom retrofit adapter manufactured by Hidden River Lab. Hidden River Lab is not affiliated with, sponsored by, or endorsed by Ring, NuTone, or M&S. Ring®, NuTone®, and M&S® are trademarks of their respective owners. Brand names are used solely to identify product compatibility and intended retrofit applications.
Liability Disclaimer
Installation and use of this product are the purchaser's responsibility. To the extent permitted by applicable law, Hidden River Lab is not liable for damage to devices, wiring, mounting surfaces, exterior finishes, or property; loss of functionality; or personal injury resulting from improper installation, misuse, unauthorized modification, inadequate sealing, or unsuitable environmental conditions. If unsure about installation, consult a qualified professional. Nothing in this notice limits rights or remedies that cannot legally be excluded.
Intellectual Property Notice
The product design, images, text, and related listing content are intellectual property of Hidden River Lab. Purchasing this item does not grant any license to copy, reproduce, manufacture, reverse-engineer, or commercially exploit the design in whole or in part.
Support
Not sure whether your Ring doorbell is the original Video Doorbell Pro / Wired Doorbell Plus (1st Gen), Model 8VR1P6, or a newer Pro model? Need to confirm that this 6.5" × 4.75" 25° adapter will cover your existing NuTone / M&S intercom opening or provide the correct camera angle? Send us photos of the doorbell and its model label, the intercom opening, and measurements. We'll help verify compatibility before ordering.
