6.5" x 4.75" NuTone / M&S Intercom Retrofit Adapter for Ring Wired Doorbell 2K Plus & 2K (2nd Gen)
6.5" x 4.75" NuTone / M&S Intercom Retrofit Adapter for Ring Wired Doorbell 2K Plus & 2K (2nd Gen)
Couldn't load pickup availability
Overview
Replace a large legacy intercom door station with a modern Ring wired video doorbell while covering the original wall opening. This 6.5" × 4.75" two-piece intercom retrofit adapter by Hidden River Lab is designed specifically for Ring Wired Doorbell 2K Plus (Model 5DFYA3) and Ring Wired Doorbell 2K (Model 5DFYA4), both from Ring's newest wired 2K generation.
These models were previously known as Ring Wired Doorbell Plus (2nd Gen) and Ring Wired Doorbell (2nd Gen), respectively. This adapter accommodates both supported models while excluding other Ring doorbells and doorbells from other manufacturers.
Designed for many NuTone / M&S (Music & Sound) legacy intercom installations and similar-size openings, the adapter helps conceal the oversized wall cutout left after removing an older intercom door station. It creates a purpose-built mounting surface for the compatible Ring wired doorbell.

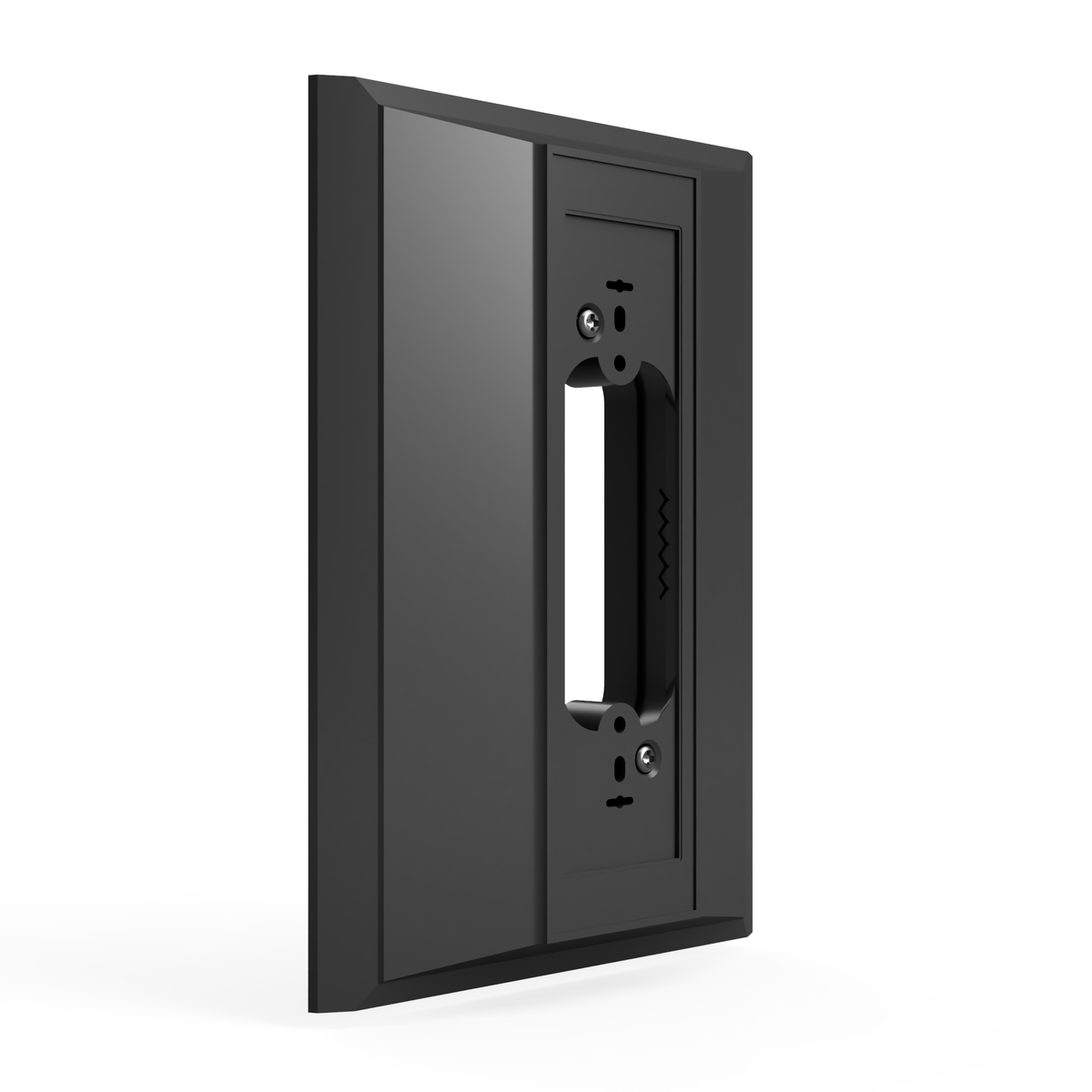

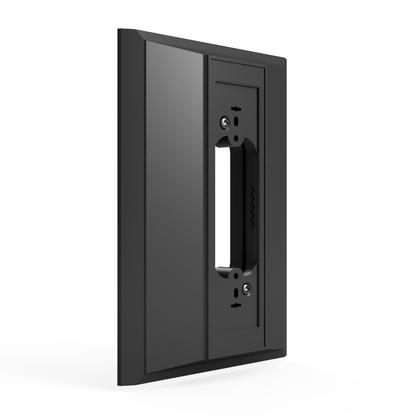

The two-piece interlocking design consists of a base plate and face plate. The face plate snaps onto the base plate with a positive click and is additionally secured with machine screws. The concealed fastening system provides a clean finished appearance.
This version provides a 0° straight viewing angle without built-in horizontal or vertical angle correction. It is intended for installations where the existing mounting location already provides a suitable camera direction.
Compatibility
✔︎ Designed exclusively for:
▪︎ Ring Wired Doorbell 2K Plus — formerly Ring Wired Doorbell Plus (2nd Gen), Model 5DFYA3.
▪︎ Ring Wired Doorbell 2K — formerly Ring Wired Doorbell (2nd Gen), Model 5DFYA4.
✔︎ Retrofit application: Many older NuTone / M&S intercom door stations and similar-size legacy intercom openings.
✔︎ Adapter size: Approximately 6.5" × 4.75".
✔︎ Viewing angle: 0° straight view without built-in horizontal or vertical angle correction.
✔︎ Mounting surface: Flat, stable surfaces.
✔︎ Application: Replacing a legacy intercom door station with either supported Ring wired 2K doorbell while covering the original opening.
✖︎ Not compatible with:
✖︎ Ring Wired Doorbell 4K Pro (3rd Gen) — Model 5DFYA2.
✖︎ Previous generations of Ring Wired Doorbell Pro, Wired Plus, and older Ring wired doorbells.
✖︎ Ring Wired Doorbell Elite models, including Ring Wired Doorbell 4K Elite.
✖︎ All Ring Battery Doorbell models, including Battery Doorbell 4K Pro, 2K Plus, 2K, and previous generations.
✖︎ Doorbells from other manufacturers, including Nest, Eufy, Arlo, Wyze, Blink, Amcrest, and other brands.
✖︎ Non-flat mounting surfaces requiring specially shaped siding, brickmold, or other profile-specific adapters.
✖︎ Third-party mounting accessories or angle adapters unless specifically confirmed as compatible.
Important: This adapter is compatible only with Ring models 5DFYA3 and 5DFYA4. Ring periodically updates product names and generations. Please verify your exact doorbell model number before ordering. Visually similar models may have different mounting requirements.
Electrical compatibility: This is a mechanical mounting adapter only. It does not convert legacy intercom wiring, provide electrical power, or guarantee that existing intercom wiring is suitable for a Ring wired doorbell. Follow the electrical requirements for your exact Ring model.
What's Included
▪︎ 1 × 6.5" × 4.75" base plate — designed to cover the original legacy intercom opening.
▪︎ 1 × Doorbell face plate with an interlocking snap-fit attachment mechanism for compatible Ring Wired Doorbell 2K Plus and 2K models.
▪︎ Machine screws to secure the face plate to the base plate.
▪︎ Self-tapping screws for fastening the appropriate doorbell mounting components to the adapter.
✖︎ Not included: Ring doorbell, original Ring mounting components, legacy intercom components, wall-mounting screws, wall anchors, electrical transformer, and wiring accessories.
Fit & Measurements
▪︎ Overall adapter size: Approximately 6.5" × 4.75".
▪︎ Construction: Two-piece design — base plate and interlocking face plate.
▪︎ Doorbell compatibility: Ring Wired Doorbell 2K Plus (5DFYA3) and Wired Doorbell 2K (5DFYA4) only.
▪︎ Viewing angle: 0° straight view.
▪︎ Mounting application: Legacy NuTone / M&S intercom retrofit installations on flat surfaces.
▪︎ Opening coverage: Intended to cover many existing 6.5" × 4.75" legacy intercom mounting areas and similar-size openings.

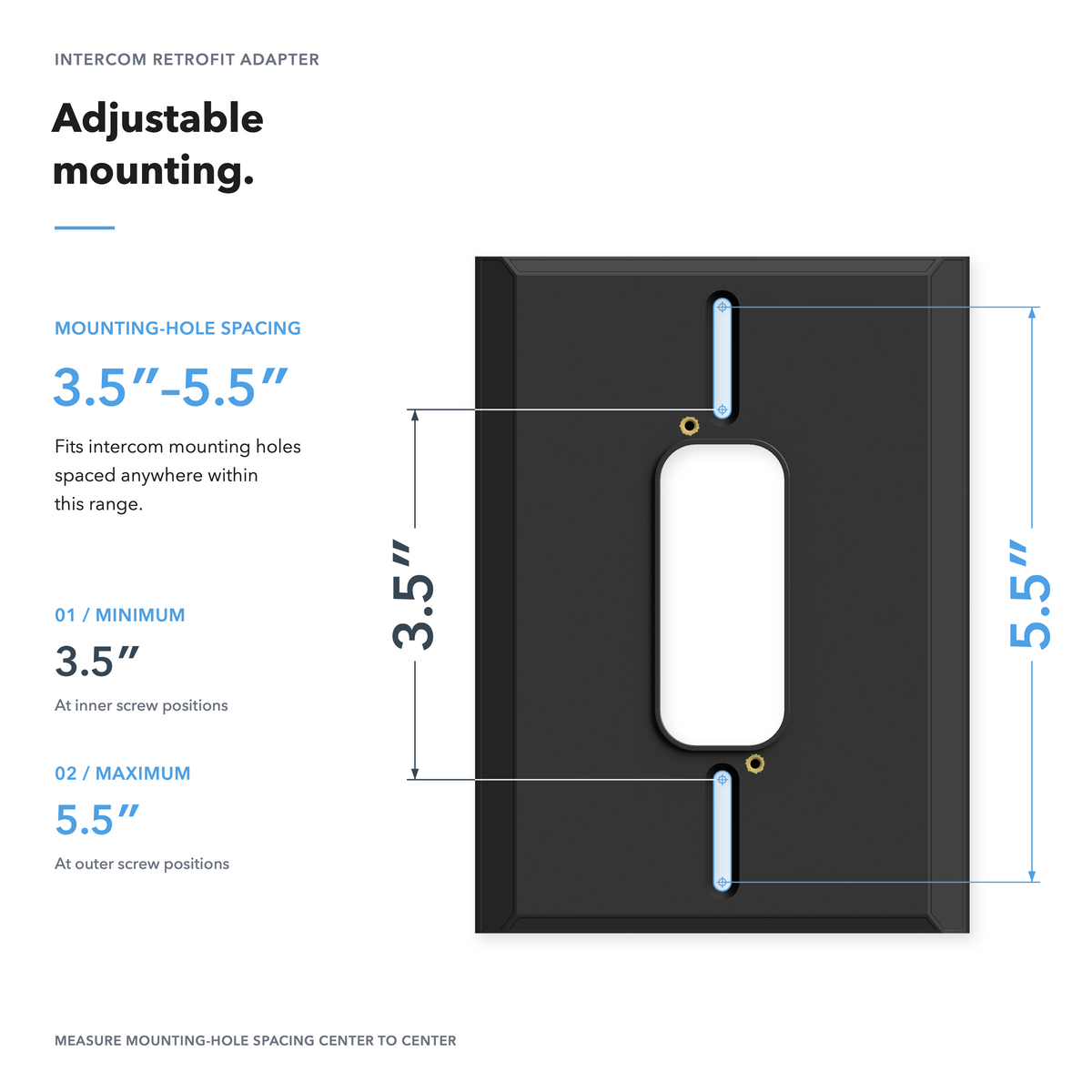

▪︎ Existing mounting points: May be reused where appropriate, depending on the original intercom installation.
Understanding the dimensions:
The 6.5" × 4.75" measurement refers to the overall adapter plate size intended to cover the original intercom mounting area. It does not guarantee that every opening with similar nominal dimensions will be completely covered.
Legacy intercom systems may have different wall cutouts, screw positions, recessed housings, and mounting arrangements. Please compare the existing opening with the adapter dimensions before ordering.
→ Intercom systems and wall openings vary. Measure your existing opening and check the surrounding mounting surface to confirm that the adapter will provide sufficient coverage.
→ If you are unsure about fitment, send us a front-facing photo of the opening and its measurements before ordering.
Why Choose This Adapter
▪︎ Legacy intercom retrofit: Replace an outdated NuTone, M&S, or similar intercom door station with a modern Ring wired 2K video doorbell.
▪︎ Opening coverage: Helps conceal the oversized wall cutout left after removing a legacy intercom station.
▪︎ Clean finished appearance: Provides a purpose-built mounting surface instead of leaving an exposed or mismatched wall opening.
▪︎ Two-model compatibility: One adapter design supports Ring Wired Doorbell 2K Plus (5DFYA3) and Wired Doorbell 2K (5DFYA4).
▪︎ Secure interlocking construction: The face plate locks onto the base plate with a positive snap-fit connection reinforced with machine screws.
▪︎ Concealed assembly hardware: The two-piece design helps keep fastening hardware hidden in the finished installation.
▪︎ 0° camera positioning: Provides a straight mounting orientation without additional horizontal or vertical inclination.
▪︎ Outdoor-ready construction: Manufactured from durable 3D-printed plastic intended for everyday outdoor mounting applications.
Materials & Finish
♺ Made from durable, outdoor-ready 3D-printed plastic.
▪︎ Designed and manufactured by Hidden River Lab.
▪︎ New condition.
▪︎ Intended for everyday outdoor mounting applications.
▪︎ Minor cosmetic artifacts may be visible due to the additive manufacturing process, especially on internal or non-visible surfaces.
▪︎ External surfaces are designed to provide a clean finished appearance once installed.
Installation Notes
Basic mounting tools may be required (e.g., screwdriver). Follow Ring's instructions for electrical connections, power requirements, and final doorbell installation.
▪︎ Step 1 — Verify compatibility. Confirm that your doorbell is Ring Wired Doorbell 2K Plus (5DFYA3) or Ring Wired Doorbell 2K (5DFYA4). This adapter is not intended for other Ring models.
▪︎ Step 2 — Prepare the installation. Disconnect power at the circuit breaker before handling existing wiring. Remove the old intercom door station and safely manage any remaining wiring. Do not assume that the original intercom wiring or power supply is suitable for a Ring wired doorbell.
▪︎ Step 3 — Install the base plate. Position the 6.5" × 4.75" base plate over the old intercom opening and secure it to the wall using appropriate mounting hardware for the installation surface. Reuse existing mounting locations where suitable.
▪︎ Step 4 — Attach the face plate. Align the face plate with the base plate and press firmly until the interlocking mechanism engages. You should feel and/or hear a distinct click when the face plate is fully seated.
▪︎ Step 5 — Secure the assembly. After the face plate clicks securely into the base plate, secure the assembly with the included machine screws.
▪︎ Step 6 — Verify engagement. Confirm that the face plate is fully seated, securely interlocked, and properly fastened before installing the doorbell.
▪︎ Step 7 — Prepare the Ring mounting components. Route appropriate doorbell wiring and position the original Ring mounting components, if required, following the installation instructions for your exact model.
▪︎ Step 8 — Mount the doorbell. Fasten the appropriate Ring mounting components to the adapter using the supplied adapter hardware as applicable, then install the compatible Ring wired doorbell according to Ring's instructions.
▪︎ Step 9 — Verify installation. Confirm that the adapter is securely fastened, the doorbell is properly mounted, and all components are correctly seated.
▪︎ Step 10 — Complete setup. Follow Ring's instructions for electrical connections, power restoration, device setup, and final operation.
For best results, install on a flat, stable surface and weather-seal the installation as appropriate for your wall, opening, and outdoor environment.
Electrical safety: This adapter does not replace the electrical requirements of Ring Wired Doorbell 2K Plus or Wired Doorbell 2K. Legacy intercom systems may use different wiring and power supplies. If existing wiring requires modification or compatibility is uncertain, consult a qualified electrician.

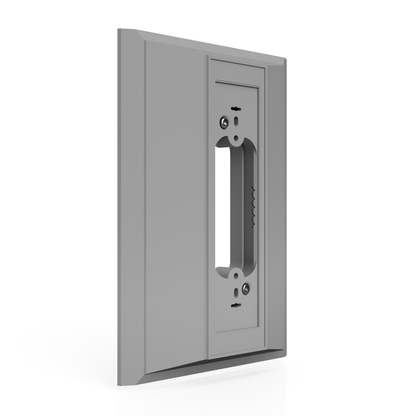

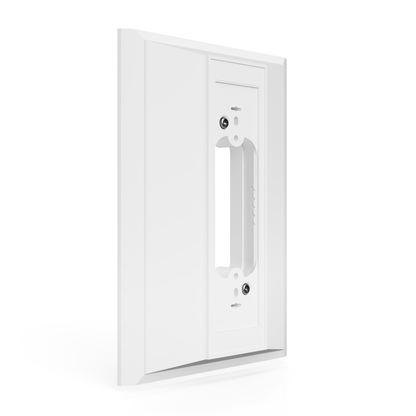

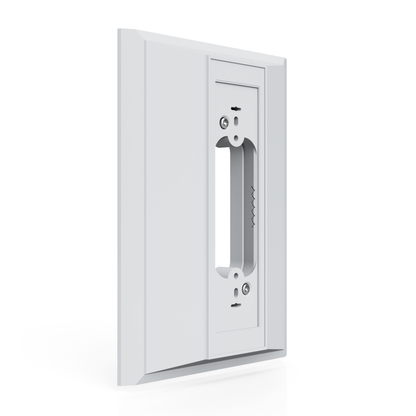

Color & Image Note
Actual product color may vary slightly due to lighting, photography, and display calibration. Images may show Ring doorbells, original Ring mounting components, legacy intercom components, or example installations for illustration purposes. These components are not included unless explicitly stated.
Disclaimers & Policies
Brand & Affiliation Disclaimer
This is an aftermarket intercom retrofit adapter made by Hidden River Lab. Hidden River Lab is not affiliated with, sponsored by, or endorsed by Ring, NuTone, or M&S. Ring®, NuTone®, and M&S® are trademarks of their respective owners. Brand names are used solely to identify product compatibility and intended retrofit applications.
Liability Disclaimer
Installation and use of this product are the purchaser's responsibility. To the extent permitted by applicable law, Hidden River Lab is not liable for damage to devices, wiring, mounting surfaces, exterior finishes, or property; loss of functionality; or personal injury resulting from improper installation, misuse, unauthorized modification, inadequate sealing, or unsuitable environmental conditions. If unsure about installation, consult a qualified professional. Nothing in this notice limits rights or remedies that cannot legally be excluded.
Intellectual Property Notice
The product design, images, text, and related listing content are intellectual property of Hidden River Lab. Purchasing this item does not grant any license to copy, reproduce, manufacture, reverse-engineer, or commercially exploit the design in whole or in part.
Support
Not sure whether your old NuTone / M&S intercom opening matches this 6.5" × 4.75" retrofit adapter or which Ring Wired Doorbell model you have? Send us photos of your doorbell, its exact model number, and photos or measurements of the old intercom opening. We'll help verify compatibility and mounting coverage before ordering.
