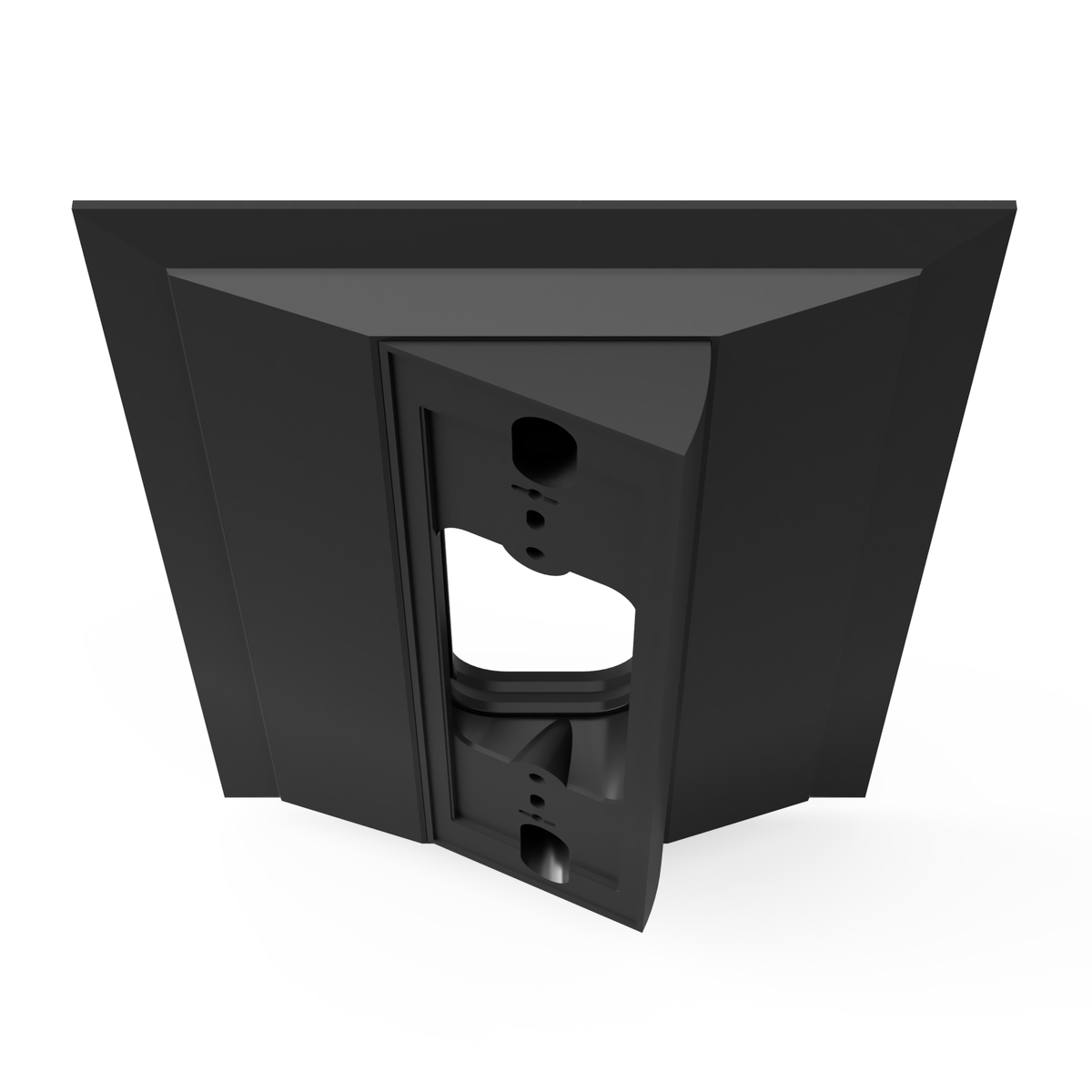

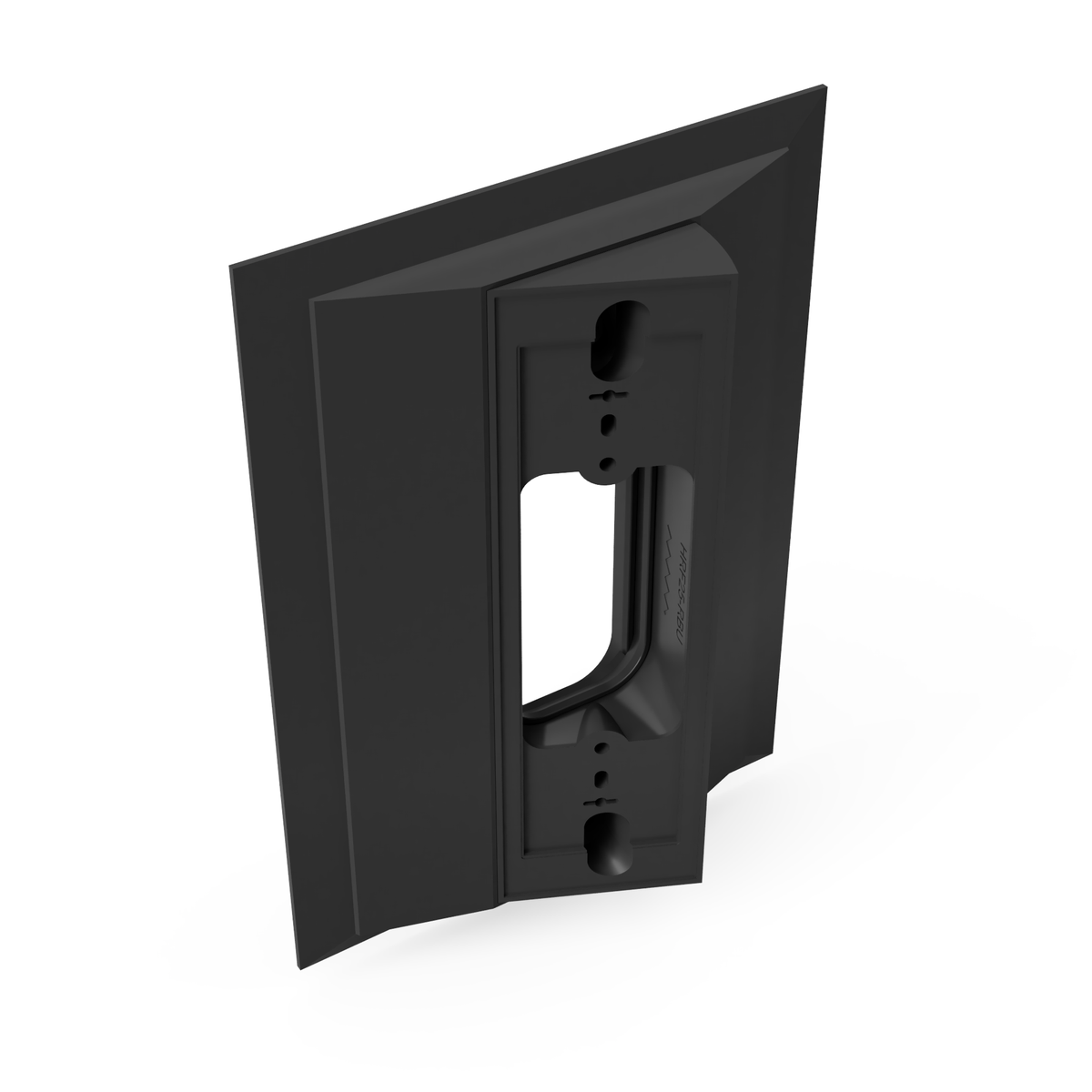

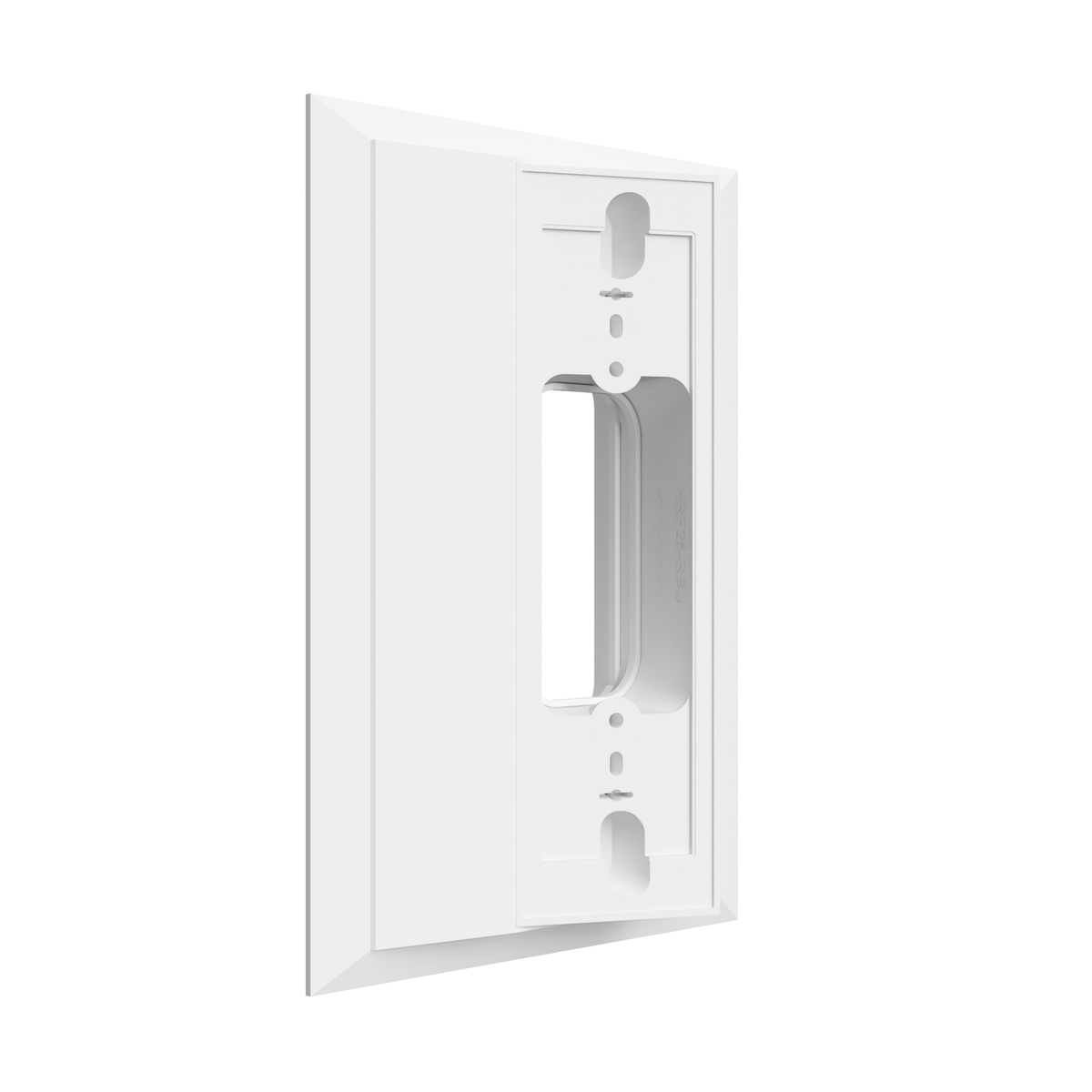

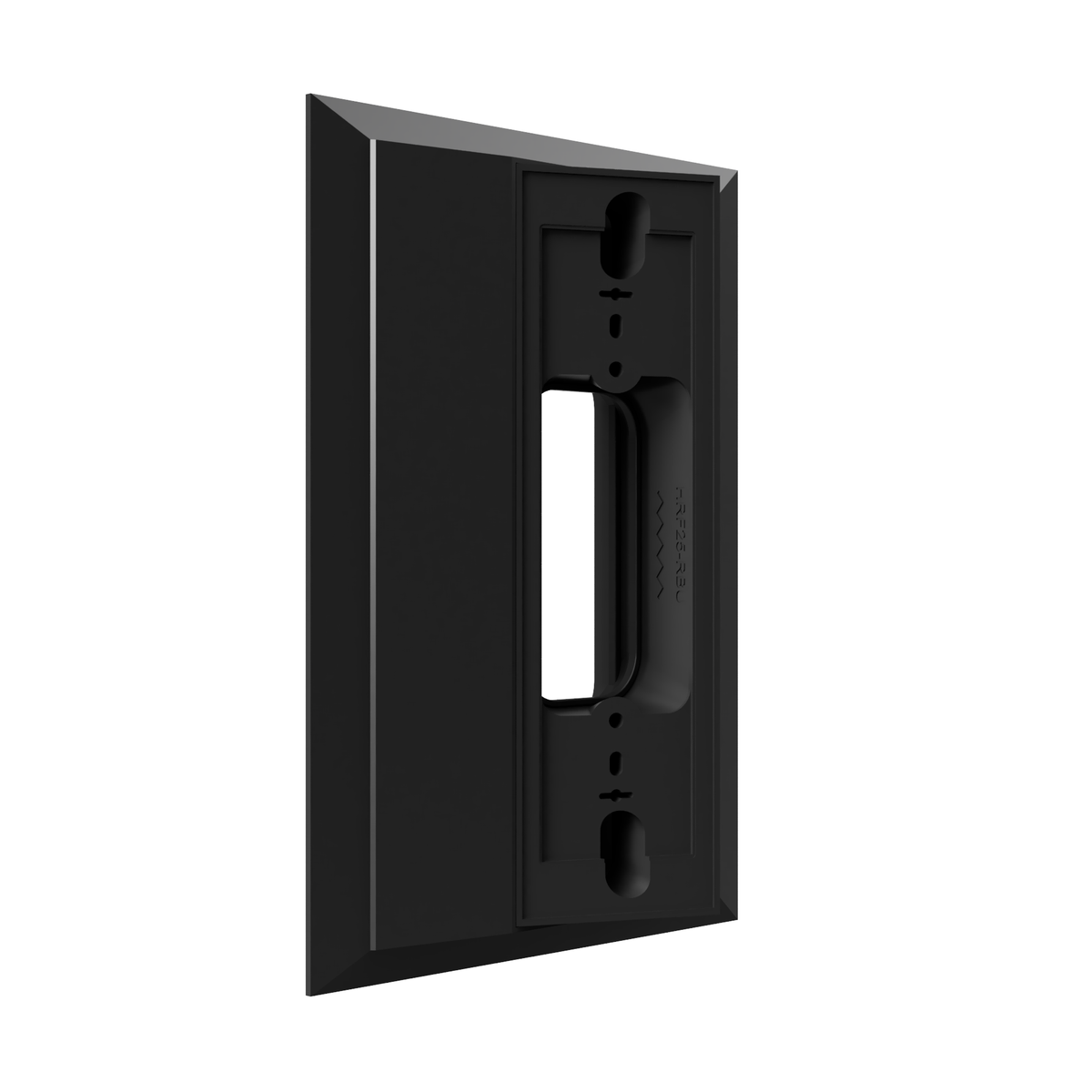

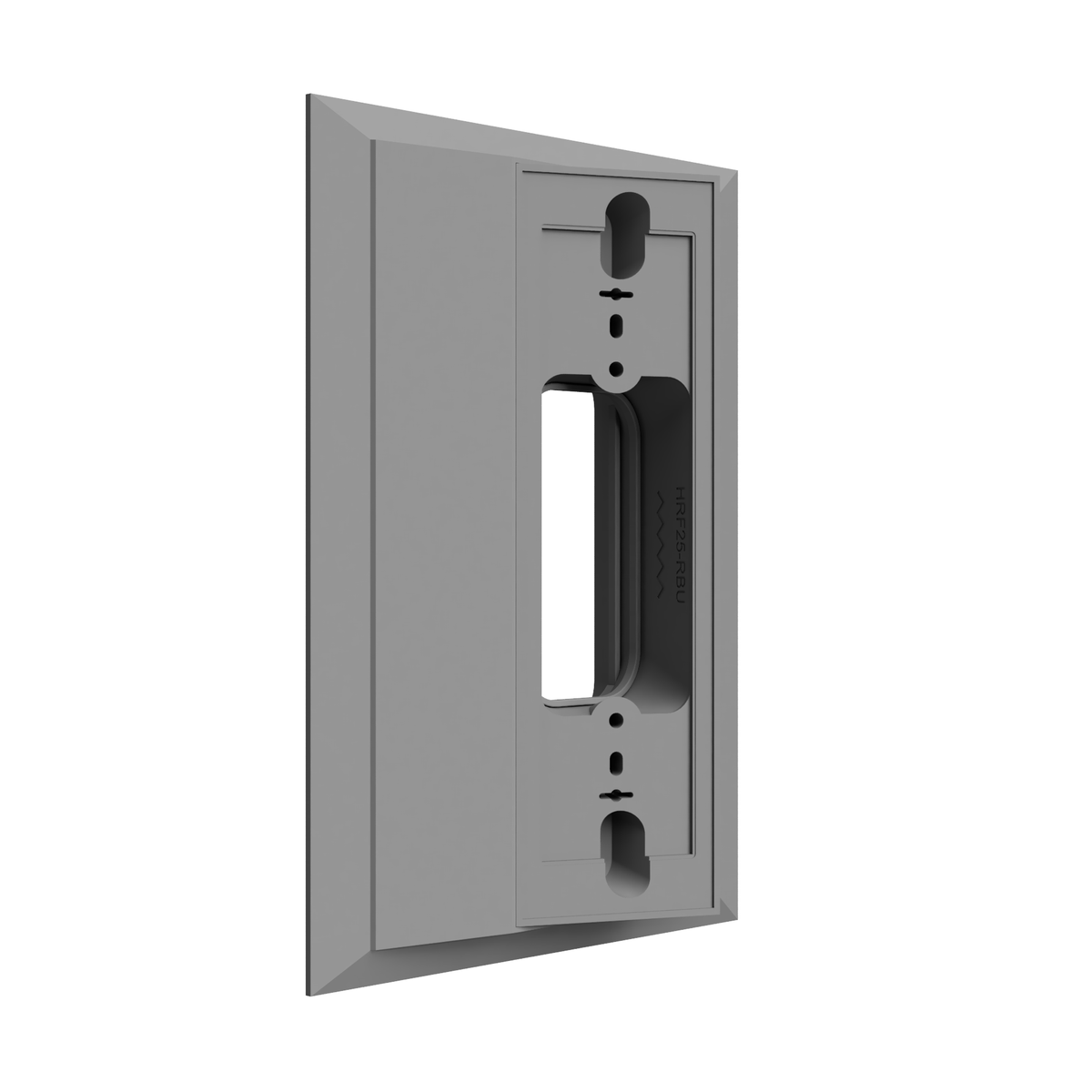

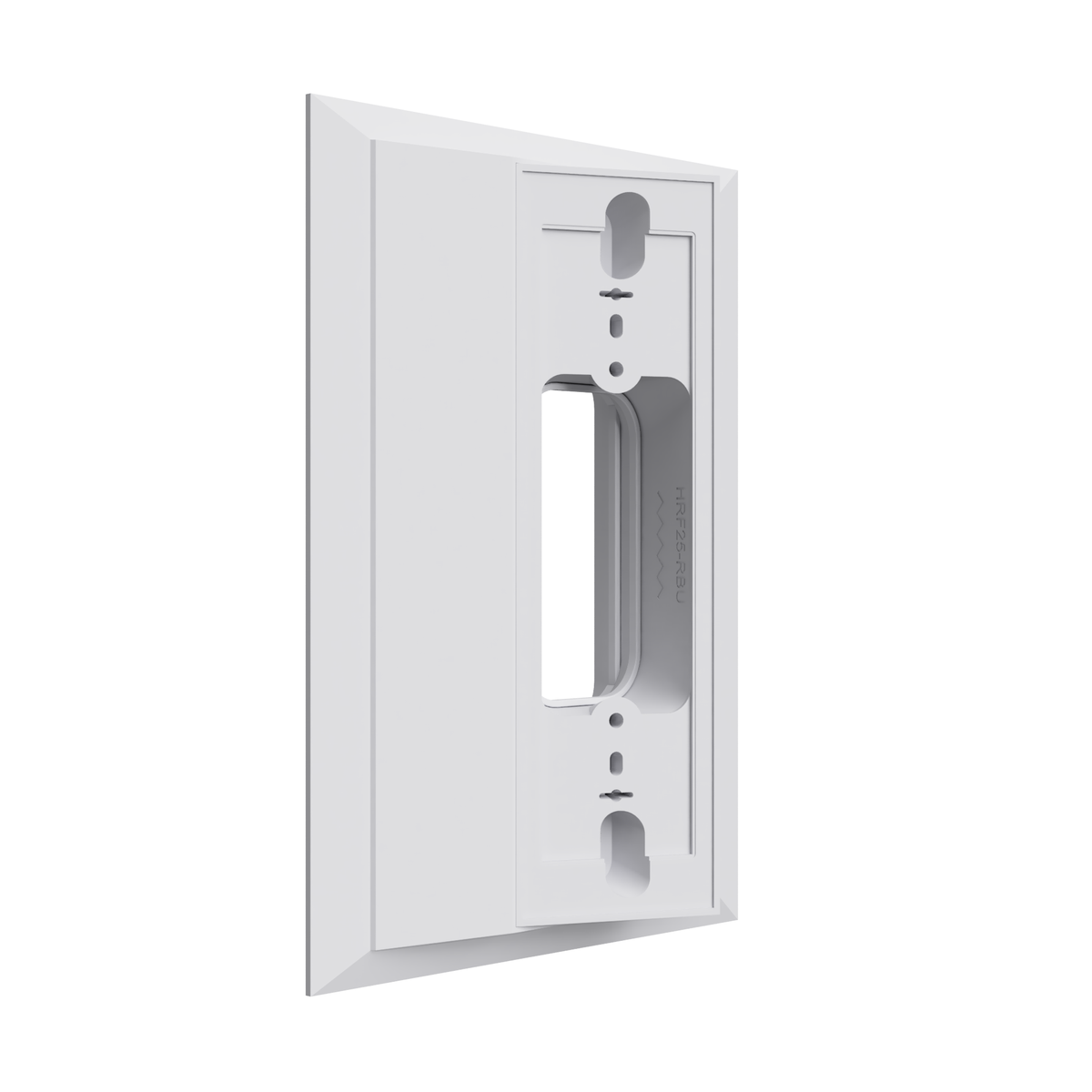

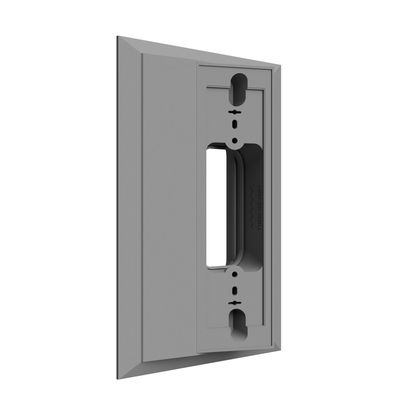

6.5” x 4.75” NuTone / M&S 25° Intercom Retrofit Adapter for Ring Battery Doorbell Pro & Plus (2nd Gen)

Overview

Replace a large legacy intercom door station with a modern video doorbell while covering the original wall opening and adding a built-in side angle for improved camera positioning. This 6.5" × 4.75" three-piece 25° intercom retrofit adapter by Hidden River Lab is designed for the Ring Battery Doorbell Pro (2nd Gen) and Ring Battery Doorbell Plus (2nd Gen).

Designed for many NuTone / M&S (Music & Sound) legacy intercom installations and similar-size openings, the adapter covers the old intercom cutout and creates a proper mounting interface for your Ring battery doorbell. The three-piece interlocking design consists of a base plate, interface, and 25° corner mount for a clean, secure finished installation.

The built-in 25° horizontal side angle helps aim the camera toward your entry path when a straight 0° installation would point the view too far along the wall.

---

Compatibility

✔︎ Designed for:

• Ring Battery Doorbell Pro (2nd Gen)

• Ring Battery Doorbell Plus (2nd Gen)

✔︎ Retrofit application: Designed to replace many older NuTone / M&S intercom door stations and cover similar-size legacy intercom openings

✔︎ Adapter size: Approximately 6.5" × 4.75"

✔︎ Angle: Built-in 25° horizontal side angle (no vertical tilt)

✔︎ Mounting surface: Flat surfaces

✔︎ Orientation: Reversible design can be configured to angle the doorbell left or right depending on your installation

✖︎ Not compatible with:

• Ring Battery Doorbell (standard model) — not currently supported by this version

• Older Ring battery doorbell generations unless specifically stated as compatible

• Ring wired doorbell models

• Non-flat mounting surfaces

Ring periodically updates product names and generations. Please verify your exact doorbell model and generation before ordering. Not sure which model you have? Send us a photo of your doorbell and intercom opening — we’ll confirm fitment.

---

What’s Included

▪︎ 1 × 6.5" × 4.75" base plate (covers the old intercom opening)

▪︎ 1 × Interface with interlocking attachment mechanism

▪︎ 1 × 25° corner mount with interlocking attachment mechanism

▪︎ Machine screws to secure the interface to the base plate

▪︎ Self-tapping screws to secure the 25° corner mount

✖︎ Doorbell, legacy intercom components, wall screws, and wall anchors are not included. Photos may show example installations for illustration purposes.

---

Fit & Measurements

▪︎ Overall adapter size: approximately 6.5" × 4.75"

▪︎ Designed to cover many legacy NuTone / M&S intercom openings and similar-size cutouts on flat mounting surfaces

▪︎ Built-in 25° horizontal side angle helps aim the camera toward your approach path

▪︎ Three-piece construction separates the wall-covering base plate, interlocking interface, and angled doorbell mount for a clean retrofit installation

▪︎ Designed to reuse existing mounting locations where possible, depending on the original intercom installation

→ Intercom systems and wall openings vary. Please measure your existing opening and compare it with the adapter dimensions before ordering. If you’re unsure, send us photos and measurements and we’ll help verify fit.

---

Why You’d Use This Adapter

▪︎ Old intercom retrofit: Replace a large legacy intercom door station with a modern Ring battery video doorbell

▪︎ Covers the old opening: Helps conceal the oversized cutout left after removing a NuTone, M&S, or similar intercom station

▪︎ Better camera aim: Built-in 25° side angle helps capture more of your entry path instead of looking along the wall

▪︎ Left or right positioning: Reversible configuration lets you choose the direction of the 25° side angle to suit your doorway layout

▪︎ Clean finished appearance: Creates a purpose-built mounting surface instead of leaving an exposed or mismatched wall opening

▪︎ Interlocking three-piece design: The interface locks onto the base plate, and the 25° corner mount locks onto the interface for a secure, clean assembly

▪︎ Model-specific fit: Doorbell mounting interface is designed specifically for the compatible Ring Battery Doorbell Pro and Plus (2nd Gen) models

---

Installation Notes

Basic tools required (e.g., screwdriver).

▪︎ Remove the existing intercom door station and safely manage any existing wiring.

▪︎ Position the 6.5" × 4.75" base plate over the old intercom opening and reuse existing mounting locations where appropriate.

▪︎ Position the interface over the base plate and press it firmly into place. The two components use an interlocking snap-fit mechanism. You should feel and/or hear a distinct click when the interface is fully engaged and locked onto the base plate.

▪︎ After the interface clicks securely into the base plate, secure the assembly with the included machine screws.

▪︎ Choose the orientation that angles the camera toward the area you want to capture, then position the 25° corner mount onto the interface.

▪︎ Press the 25° corner mount firmly into place. It also uses an interlocking snap-fit mechanism. You should feel and/or hear a distinct click when the corner mount is fully engaged with the interface.

▪︎ After the 25° corner mount clicks securely into place, secure it with the included self-tapping screws.

▪︎ Before mounting the doorbell, verify that all three components are fully seated, securely interlocked, and properly fastened.

▪︎ Mount the compatible Ring battery doorbell to the completed 25° adapter assembly using the appropriate included mounting hardware.

▪︎ Follow Ring’s instructions for final doorbell setup and installation.

▪︎ Weather-seal the installation as appropriate for your wall, opening, and environment.

If your old intercom opening is unusual or you’re unsure whether this adapter will cover it or which direction you need the 25° angle, message us with a front-facing photo and measurements before ordering - we’ll help verify fit.

---

Materials & Finish

♺ 3D-printed durable plastic for everyday outdoor use.

▪︎ New condition. Minor internal artifacts may be visible due to additive manufacturing (3D printing). External faces are designed to present cleanly once installed.

---

Color & Image Note

Actual color may vary slightly due to lighting and display calibration. Photos may show Ring doorbells, legacy intercom components, or example installations for illustration purposes; these components are not included unless specifically stated above.

---

Brand & Affiliation Disclaimer

This is an aftermarket product made by Hidden River Lab. It is not affiliated with, sponsored by, or endorsed by Ring, NuTone, or M&S. Ring®, NuTone®, and M&S® are trademarks of their respective owners. Brand names are used solely to indicate compatibility and intended retrofit applications.

---

Intellectual Property Notice

The design, images, and listing text are intellectual property of Hidden River Lab. Purchase does not grant any license to copy, reproduce, manufacture, reverse-engineer, or commercially exploit the design in whole or in part.

---

Support

Not sure whether your old NuTone / M&S intercom opening matches this 6.5" × 4.75" 25° retrofit adapter, whether you have the correct Ring Battery Doorbell Pro or Plus (2nd Gen), or which direction you need the 25° angle? Message us with photos of your doorbell, intercom opening, and measurements - we’ll confirm fitment and help you choose the correct setup.
