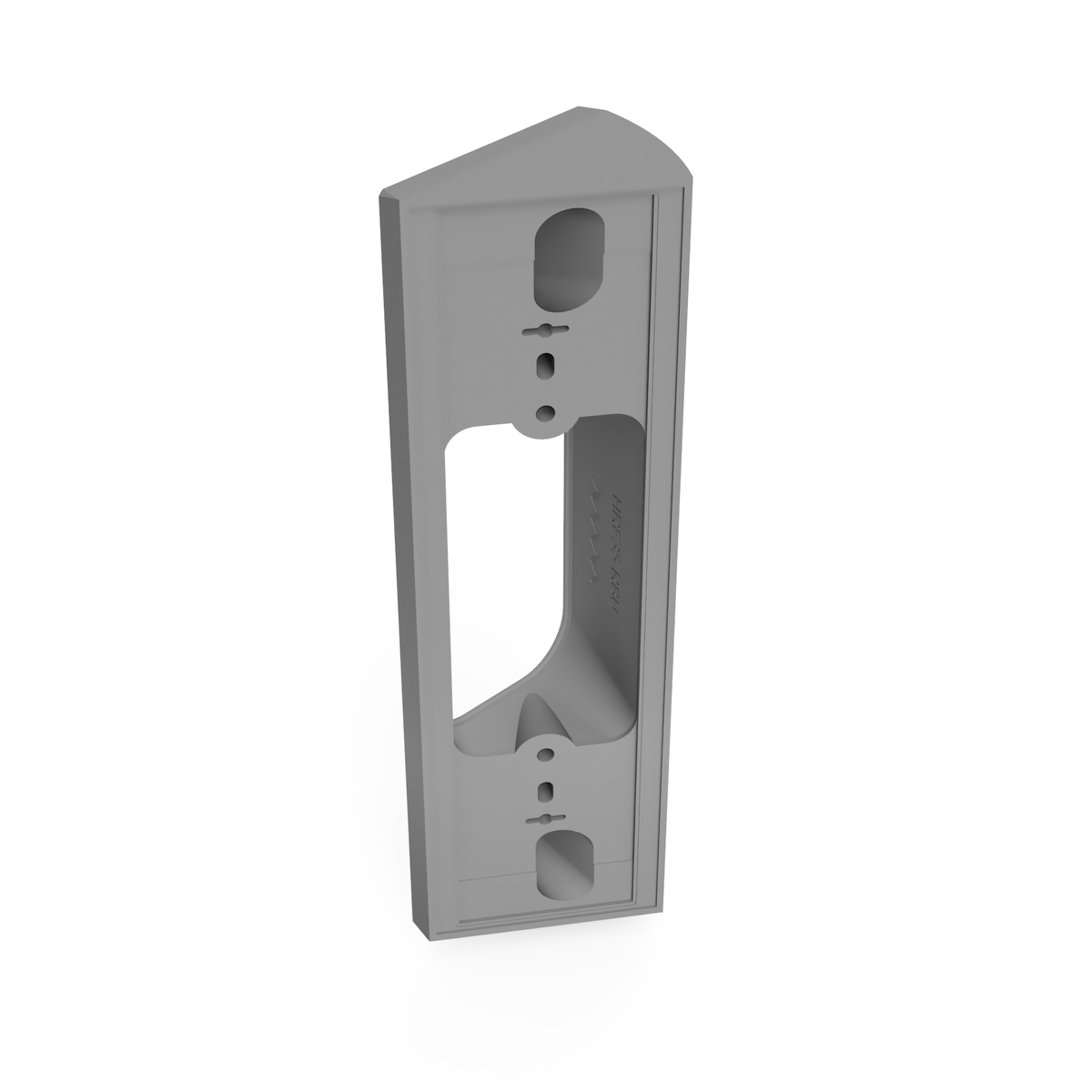

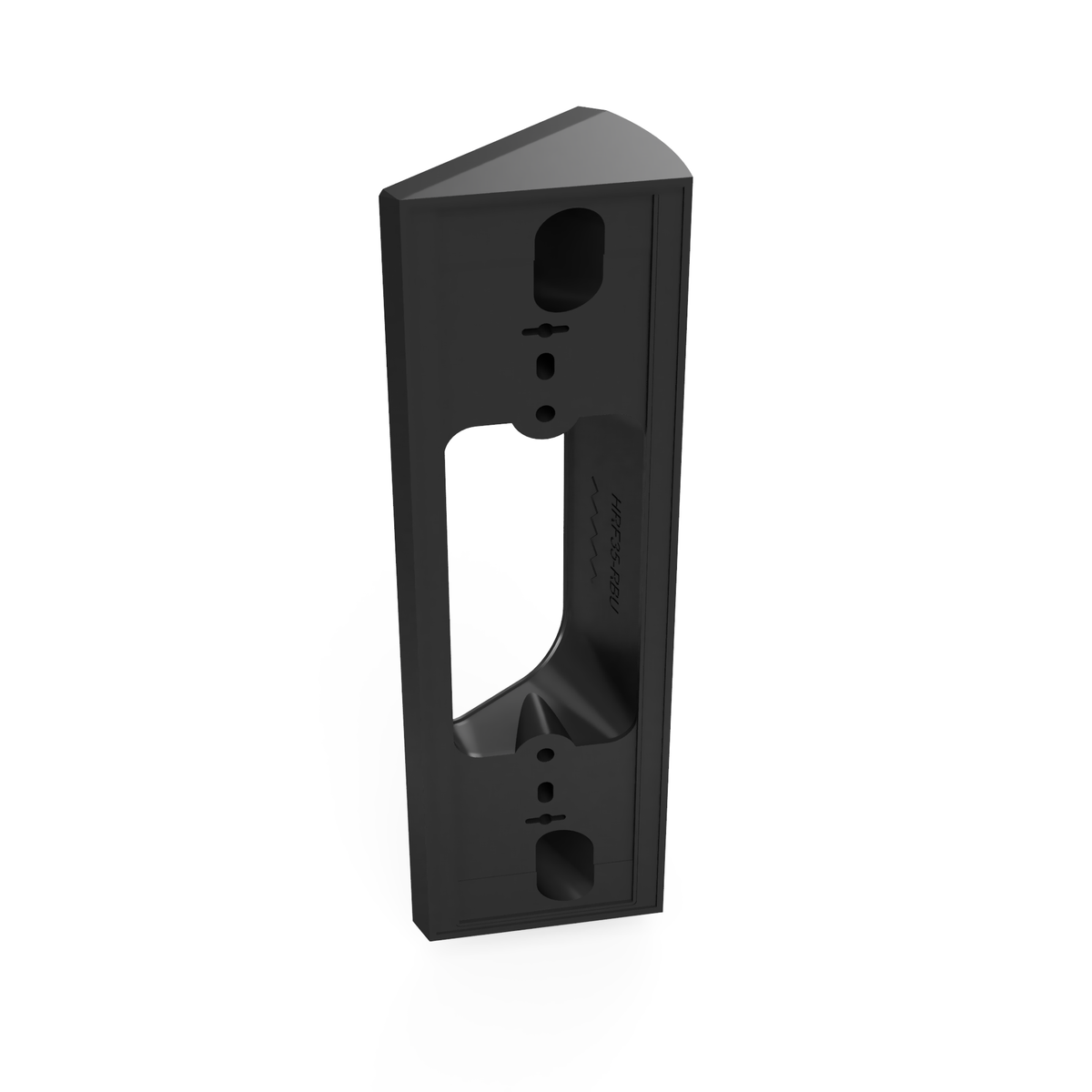

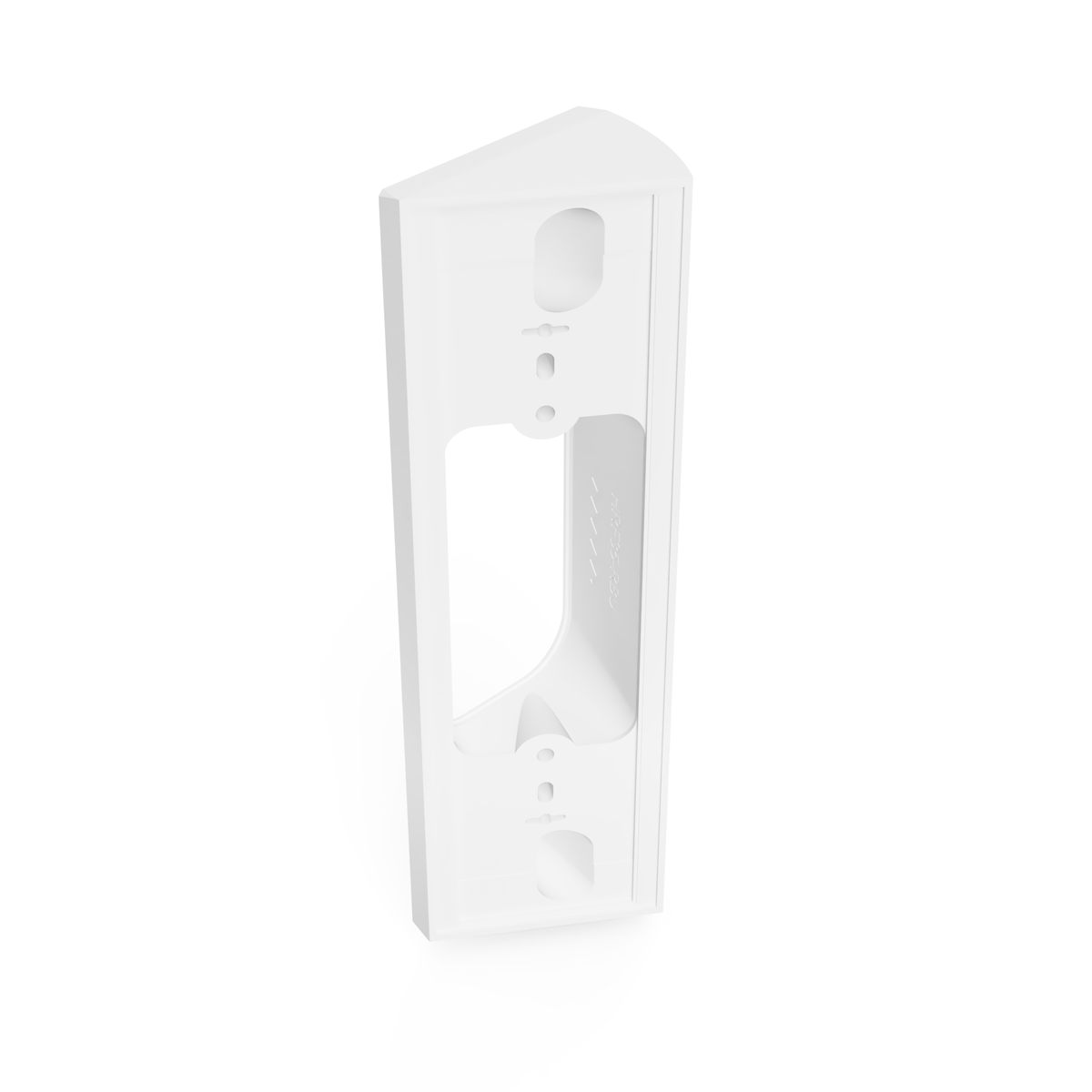

35° Reversible Corner Mount for Ring Battery Doorbell 2K, 2K Plus & 4K Pro (2nd Gen)

Overview

Direct your Ring Battery Doorbell camera toward the walkway, entrance, or other important approach area with this 35° reversible horizontal corner mount from Hidden River Lab. It fits the second-generation Ring Battery Doorbell 4K Pro (5DFYA6), 2K Plus (5DCFAB), and 2K (5DFYA5).

The mount turns the camera 35° to the left or right, depending on how you orient it. One adapter serves either side of a doorway; no separate left-hand and right-hand purchase is required.

A key use case is mounting on a side wall perpendicular to the front door. The fixed 35° turn helps direct the camera back toward the doorway. Depending on the doorbell's wide-angle field of view and the entry layout, the image may also include the adjacent wall and approach area.

It is also useful on a wall parallel to the front door when the mounting point is located well to one side. Turning the camera 35° toward the entrance can help bring the area immediately in front of the doorway into view.

This is a standalone corner mount for a suitable flat, stable mounting surface, not a large wall-covering trim plate. It does not add vertical inclination and is not designed to conceal an oversized legacy opening.

---

Compatibility

✔︎ Designed for:
▪︎ Ring Battery Doorbell 4K Pro — Battery Doorbell Pro (2nd Gen), Model 5DFYA6.
▪︎ Ring Battery Doorbell 2K Plus — Battery Doorbell Plus (2nd Gen), Model 5DCFAB.
▪︎ Ring Battery Doorbell 2K — standard Battery Doorbell (2nd Gen), Model 5DFYA5.
✔︎ Side angle: 35° horizontal left or right, selected during installation.
✔︎ Orientation: Reversible design, one mount for either direction.
✔︎ Mounting surface: Suitable flat, stable wall with sound screw support.
✔︎ Vertical tilt: No added up/down inclination.
✔︎ Intended use: Redirect the camera toward the entryway from a perpendicular side wall or an offset location on a parallel wall.
✔︎ Mounting style: Standalone compact corner mount for suitable flat surfaces.



✖︎ Not compatible with:
✖︎ Ring Wired Doorbell models, including Wired Doorbell 4K Pro, 2K Plus, and 2K.
✖︎ Previous-generation Ring Battery Doorbell models unless specifically identified as compatible.
✖︎ Doorbells from other manufacturers, including eufy, Nest, Arlo, Wyze, Blink, Amcrest, and other brands.
✖︎ Profiled siding surfaces requiring a Dutch Lap or traditional clapboard-specific mount.
✖︎ Large openings or damaged areas that require a separate wall-covering plate.
✖︎ Vertical up/down angle adjustment; this model changes only the horizontal direction.



Important: This adapter is designed for Ring Battery Doorbell models 5DFYA6, 5DCFAB, and 5DFYA5 only. Ring uses similar names across generations. Confirm your exact model number before ordering.

Choose a direction: Install the same corner mount for 35° left or right as needed. The angle is fixed at 35°; it does not adjust continuously. Check that the intended framing is possible in your entry layout.

---

What's Included

▪︎ 1 × reversible 35° horizontal corner mount for the compatible Ring Battery Doorbells.
▪︎ Long mounting screws for attaching the HRL adapter to a suitable mounting surface (typically two).
▪︎ Short mounting screws for attaching the original Ring mounting plate to the HRL adapter (typically two; additional screws may be supplied where needed).
✖︎ Not included: Ring doorbell, original Ring mounting plate, wiring components, and other accessories.

---

Fit & Measurements

▪︎ Horizontal angle: 35°.
▪︎ Direction: Reversible left/right, user-selected at installation.
▪︎ Vertical angle: 0° additional up/down tilt.
▪︎ Doorbell fit: Ring Battery Doorbell 4K Pro (5DFYA6), 2K Plus (5DCFAB), and 2K (5DFYA5).
▪︎ Installation: Compact standalone angle mount on a suitable flat wall.
▪︎ Typical layouts: Wall perpendicular to the door, or parallel to the door with a mounting point offset to one side.
▪︎ Function: Changes the horizontal direction of the doorbell rather than increasing its optical field of view.

→ Check location and direction: Hold the mount at the installation point and confirm that 35° left or right turns the camera toward the area you actually want to monitor. The mount does not expand the camera's field of view.

---

Ideal Installation Scenarios

1. Perpendicular side wall: If the doorbell is installed on a side wall perpendicular to the plane of the front door, a straight mount may point the camera away from the doorway. The 35° corner mount turns the camera toward the entrance. With the compatible Ring doorbell's wide-angle camera, this can help include the front door and part of the adjacent side-wall or approach area within the same view, depending on placement.

2. Parallel wall with an offset mounting point: If the doorbell is mounted on a wall parallel to the door but positioned farther to the left or right, the 35° turn helps point the camera toward the area directly in front of the entrance. Choose the orientation that turns the lens inward toward the doorway.

Viewing-area note: This mount changes camera direction, not the optical field of view. Seeing the door, side wall, walkway, or a visitor at the same time depends on the Ring model, mounting position and height, distance, and obstructions. Check the intended view before fastening the mount.

---

Why Choose This Corner Mount

▪︎ Better approach framing: Helps aim the camera toward an approaching walkway or entrance rather than along a wall.
▪︎ 35° side-angle correction: More horizontal rotation than a straight 0° mount without adding up/down inclination.
▪︎ Left/right flexibility: One reversible mount works on either side of the doorway.
▪︎ Standalone installation: Does not require a separate full-size wall plate for the intended mounting situation.
▪︎ Perpendicular side-wall use: Helps aim the camera back toward the entrance when the mounting wall faces across the doorway.
▪︎ Offset parallel-wall use: Helps aim the camera inward when the doorbell is mounted far from the door.
▪︎ Three-model fit: Supports all three specified second-generation Ring Battery Doorbells.
▪︎ Outdoor-ready design: Purpose-built PETG mounting accessory for typical exterior conditions.

---

Materials & Finish

♺ Made from durable, outdoor-ready PETG plastic using additive manufacturing (3D printing).
▪︎ Designed and manufactured by Hidden River Lab.
▪︎ New condition, intended for everyday outdoor mounting applications.
▪︎ Minor cosmetic artifacts may be visible because of the additive manufacturing process, particularly on hidden or internal surfaces.
▪︎ Visible surfaces are designed to present a clean finished appearance once installed.

---

Installation Notes

Basic installation tools may be required (e.g., screwdriver). Follow the installation instructions for your exact Ring doorbell model.

▪︎ Step 1 — Verify the compatible Ring model. Confirm model 5DFYA6, 5DCFAB, or 5DFYA5.

▪︎ Step 2 — Choose the viewing direction. Decide whether a 35° left or right turn will frame the door and intended approach. For a perpendicular side wall, aim back toward the entrance; for an offset parallel wall, aim inward toward the doorway.

▪︎ Step 3 — Check the mounting surface. Choose a sound, flat installation area and verify that screws can engage appropriate backing.

▪︎ Step 4 — Orient the corner mount. Position the reversible mount so the front face turns toward the selected side.

▪︎ Step 5 — Secure the mount. Fasten it using suitable supplied long mounting screws and appropriate support behind the wall finish.

▪︎ Step 6 — Attach the original Ring mounting plate. Use the appropriate supplied short screws to attach the Ring plate to the front of the corner mount.

▪︎ Step 7 — Install and confirm. Complete Ring doorbell attachment and any permitted wiring, then check the live camera view, door/visitor-area coverage, secure fastening, and outdoor sealing.

This mount does not substitute for siding-profile adapters or for an oversized wall-opening cover plate. It changes mounting direction only; camera field of view and coverage remain determined by the Ring model and installation geometry.

---

Color & Image Note

Actual color may vary slightly due to lighting, photography, and display calibration. Images may show compatible Ring doorbells, original Ring mounting brackets, siding, trim, wiring, or example installations for illustration purposes. Ring doorbell and illustrated accessories are not included unless expressly stated.

---

Disclaimers & Policies

Brand & Affiliation Disclaimer

This is an aftermarket doorbell mounting accessory designed and manufactured by Hidden River Lab. Hidden River Lab is not affiliated with, sponsored by, or endorsed by Ring. Ring® is a trademark of its respective owner. Brand names and model names are used solely to identify product compatibility.

Liability Disclaimer

Installation and use of this product are the purchaser's responsibility. To the extent permitted by applicable law, Hidden River Lab is not liable for damage to devices, wiring, mounting surfaces, exterior finishes, or property; loss of functionality; or personal injury resulting from improper installation, misuse, unauthorized modification, inadequate sealing, or unsuitable environmental conditions. If unsure about installation, consult a qualified professional. Nothing in this notice limits rights or remedies that cannot legally be excluded.

Intellectual Property Notice

The product design, images, text, and related listing content are intellectual property of Hidden River Lab. Purchasing this item does not grant any license to copy, reproduce, manufacture, reverse-engineer, or commercially exploit the design in whole or in part.

---

Support

Not sure whether 35° left or right will work for your wall? Send photos showing your mounting surface, entrance, and approach area, together with the exact Ring model number. We can help you choose the appropriate mounting direction before ordering.
